Fig. 3
ASSEMBLY & ADJUSTMENTS
11

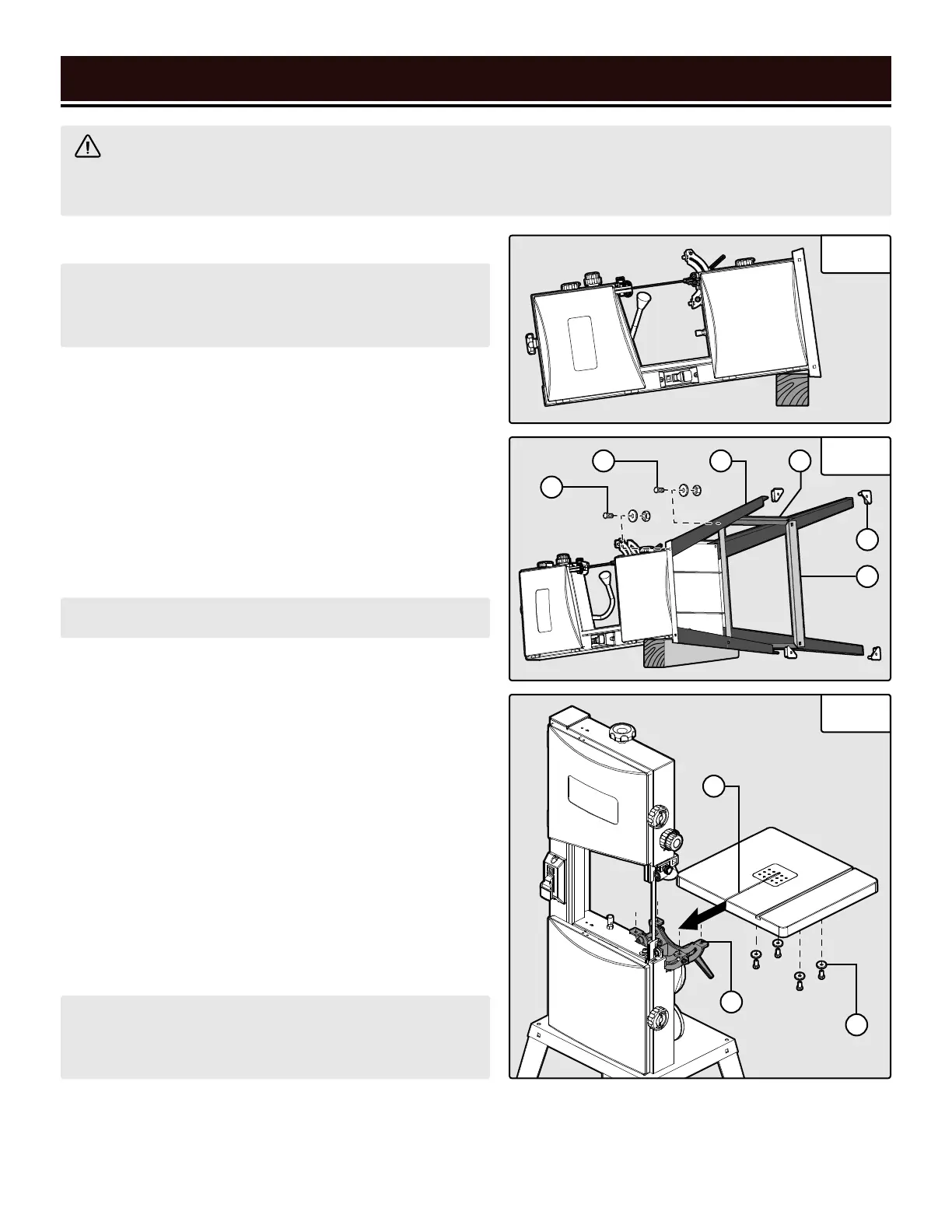

ASSEMBLING THE STAND (FIG. 3)
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
Fig. 2
Fig. 4
NOTE: If you do not plan to mount the band saw on the
stand, make sure it is securely mounted to a workbench
or other sturdy surface.
1. Place the band saw on its back, use a 4x4 block of wood
to support the bottom of the frame (Fig. 2). This will give
you space to assemble the stand.
2. Attach the legs (C) to the band saw with the M8x16 car-
riage bolts, 8mm flat washers, and M8 hex nuts (A). Hand
tighten.
3. Attach the short (D) and long (F) braces to the legs with
the M8x16 carriage bolts, 8mm flat washers, and M8 hex
nuts (B). Hand tighten.
NOTE: Do not fully tighten the nuts yet.
NOTE: It is best to attach the table in the 0° position
(perpendicular to the blade). If desired, you may bevel
the table in order to access the bolts more easily.
4. Attach a rubber foot (E) to each leg.
5. Place the saw upright. Use the bubble level on the base
of the saw’s frame to check if the saw is level from left to
right, as well as from front to back. Make adjustments as
necessary, then tighten the nuts. Make sure the stand does
not wobble or tilt after all nuts are tightened.
INSTALLING THE TABLE (FIG. 4)
1. Align the slot on the table (A) with the blade and slide
the table around the blade. Align the holes on the mounting
bracket (B) with the holes underneath the table.
2. Fasten the table to the mounting bracket with the M6x10
hex bolts and 6mm flat washers (C). Tighten the bolts us-
ing the 10/13mm wrench.
A
D
E
B C
F
A
B
C
