EXPLODED VIEW AND PARTS LIST
ITEM STOCK # DESCRIPTION
3-1 5613K-0301 BOLT
3-2 5613K-0302 BOLT
3-3 5613K-0303 CRANKCASE COVER ASSEMBLY
3-4 5613K-0304 POSITION PIN
3-5 5613K-0305 GASKET, CRANKCASE
3-6 5613K-0306 OIL SEAL
3-7 5613K-0307 OIL SUCTION TUBE
3-8 5613K-0308 WASHER
3-9 5613K-0309 BOLT
3-10 5613K-0310 BOLT
3-11 5613K-0311 PIN
3-12 5613K-0312 OIL PUMP
3-13 5613K-0313 COVER, OIL PUMP
3-14 5613K-0314 SPRING, PRESSURE RELIEF VALVE
3-15 5613K-0315 STEEL BALL
3-16 5613K-0316 OIL STRAINER
3-17 5613K-0317 GEAR ASSY, GOVERNOR
3-18 5613K-0318 DIPSTICK
3-19 5613K-0319 GASKET, OIL PUMP
ITEM STOCK # DESCRIPTION
4-1 5613K-0401 CRANKSHAFT ASSY.
4-3 5613K-0403 PUSH WASHER
4-4 5613K-0404 CONNECTING ROD
4-5 5613K-0405 PISTON
4-6 5613K-0406 PIN, PISTON
4-7 5613K-0407 CLIP, PISTON PIN
4-8 5613K-0408 PISTON RING 1
4-9 5613K-0409 PISTON RING 2
4-10 5613K-0410 PISTON RING 3
ITEM STOCK # DESCRIPTION
5-1 5613K-0501 VALVE ROCKER
5-2 5613K-0502 SHAFT, VALVE ROCKER
5-3 5613K-0503 LIFTER, VALVE
5-4 5613K-0504 TAPPET, VALVE
5-5 5613K-0505 CLAMP, VALVE
5-6 5613K-0506 SEAT, VALVE SPRING
5-7 5613K-0507 SPRING, VALVE
5-8 5613K-0508 GUIDE, SEAL
5-9 5613K-0509 RETAINER, VALVE SPRING
5-10 5613K-0510 VALVE
5-11 5613K-0511 CAMSHAFT ASSY.
5-12 5613K-0512 WASHER, CAMSHAFT

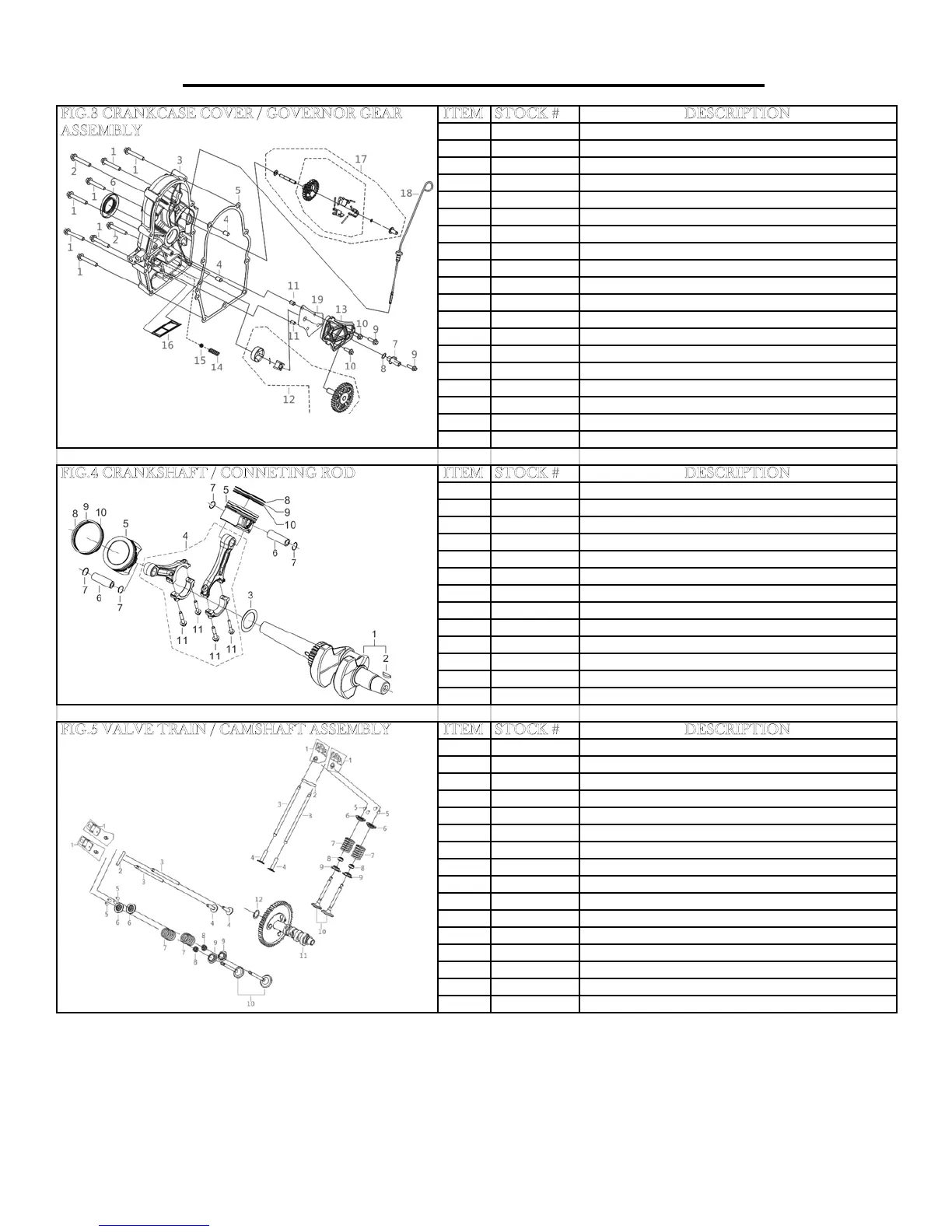

FIG.3 CRANKCASE COVER / GOVERNOR GEAR
ASSEMBLY
FIG.5 VALVE TRAIN / CAMSHAFT ASSEMBLY
FIG.4 CRANKSHAFT / CONNETING ROD
