Wen 5613K User Manual

28
EXPLODED VIEW AND PARTS LIST
ITEM STOCK # DESCRIPTION
6-1 5613K-0601 SHROUD SHIELD
6-2 5613K-0602 SCREW
6-3 5613K-0603 NUT
6-4 5613K-0604 SHROUD ASSY.
6-5 5613K-0605 DECORATION PLATE, FAN SHIELD
6-6 5613K-0606 LOCK HANDLE
ITEM STOCK # DESCRIPTION
7-1 5613K-0701 SHROUD 2, CYLINDER BODY
7-2 5613K-0702 SHUTOFF WIRE, IGNITION COIL
7-3 5613K-0703 SHROUD 1, CYLINDER BODY
7-4 5613K-0704 UNDERSIDE LEFT SHIELD
7-5 5613K-0705 BOLT
7-6 5613K-0706 LEFT SHIELD, CRANKCASE
7-7 5613K-0707 FLANGE BOLT
7-8 5613K-0708 LUG
7-9 5613K-0709 FLANGE BOLT
7-10 5613K-0710 UNDERSIDE RIGHT SHIELD
7-11 5613K-0711 RIGHT SHIELD
7-12 5613K-0712 TUBE，OIL FILTER
7-13 5613K-0713 EXTRA OIL FILTER
7-14 5613K-0714 ADIABATIC BOARD, REGULATOR
7-15 5613K-0715 REGULATOR
7-16 5613K-0716 BLOCK
ITEM STOCK # DESCRIPTION
8-1 5613K-0801 SEAL GASKET, CARBURETOR
8-2 5613K-0802 ADIABATIC GASKET, CARBURETOR
8-3 5613K-0803 JOINT, INTAKE TUBE
8-4 5613K-0804 BOLT
8-5 5613K-0805 BOLT
8-6 5613K-0806 WASHER
8-7 5613K-0807 CONNECTING TUBE, AIR CLEANER
8-8 5613K-0808 BOLT
8-9 5613K-0809 CARBURETOR ASSY.
8-11 5613K-0811 AC WIRE, SOLENOID VALVE
8-12 5613K-0812 FUEL HOSE

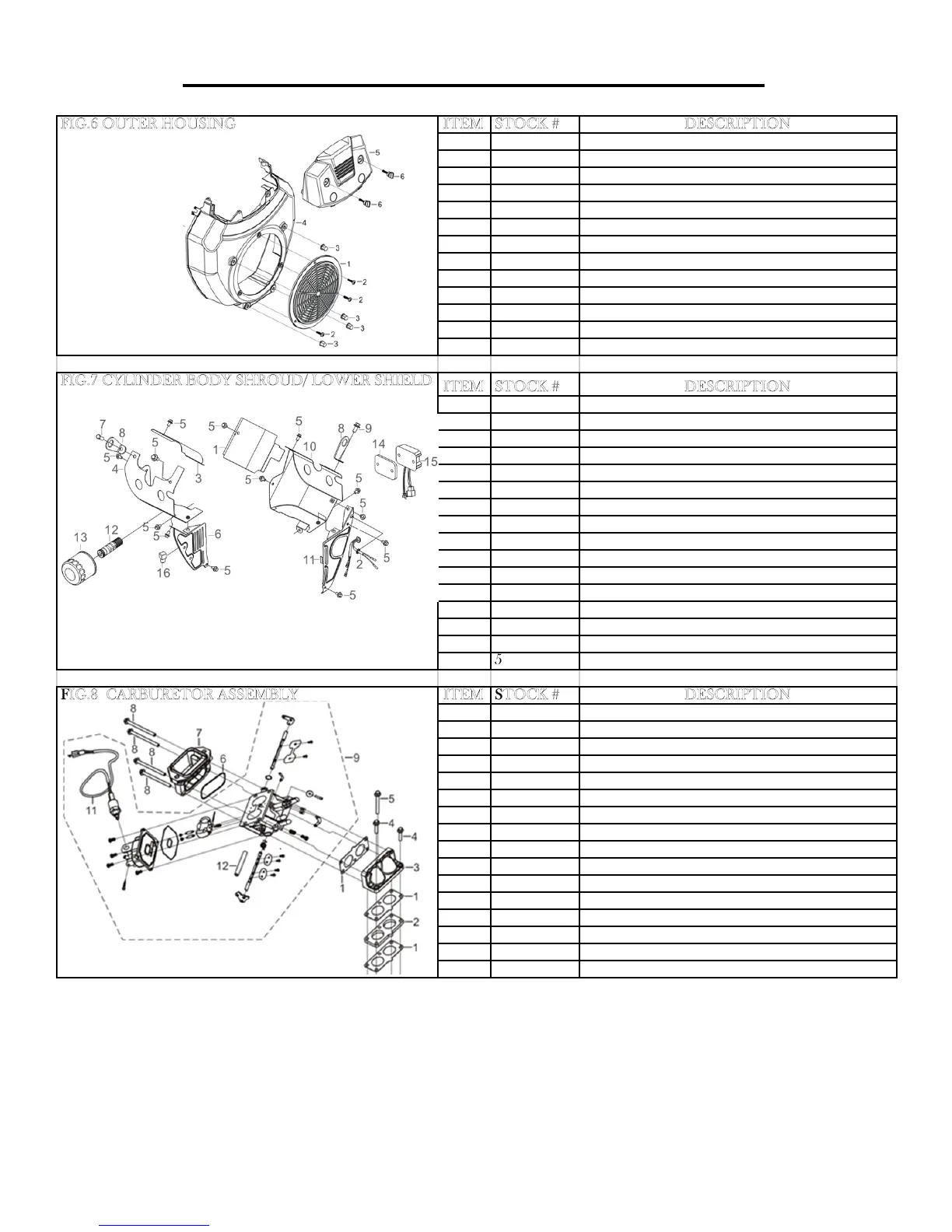

FIG.6 OUTER HOUSING
FIG.8 CARBURETOR ASSEMBLY
FIG.7 CYLINDER BODY SHROUD/ LOWER SHIELD
