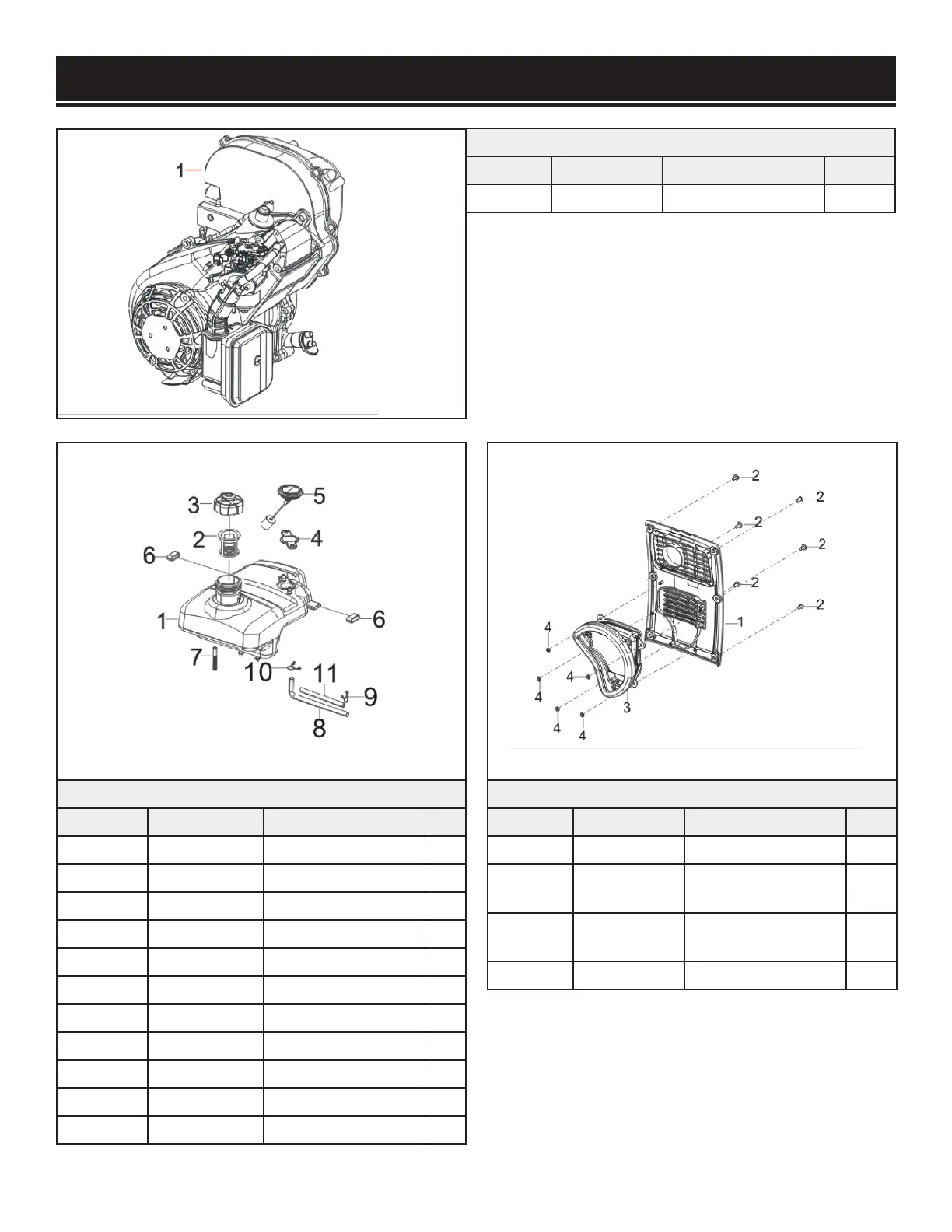

EXPLODED VIEW & PARTS LIST

Fig. 3 - Muffer Cover

No. Part No. Description Qty.

Fig. 3-1 56200-0301 Cover, Mufﬂer Side 1

Fig. 3-2 56200-0302

Washer & Screw

Component

Fig. 3-3 56200-0303

Cushion,

Joint Rubber

Fig. 3-4 56200-0304 Clip, Spring 5

Fig. 2 - Fuel Tank Assembly

No. Part No. Description

Fig. 2-1 56200-0201 Tank, Fuel 1

Fig. 2-2 56200-0202 Fuel Filter 1

Fig. 2-3 56200-0203 Cover, Fuel Tank 1

Fig. 2-4 56200-0204 Clamp Oil Seal 1

Fig. 2-5 56200-0205 Fuel Gauge 1

Fig. 2-6 56200-0206 Bush 2

Fig. 2-7 56200-0207 Element, Strainer 1

Fig. 2-8 56200-0208 Tube, Fuel 1

Fig. 2-9 56200-0209 Collar 1

Fig. 2-10 56200-0210 Collar 1

Fig. 2-11 56200-0211 Jacket, Rubber 1

Fig. 1 - Engine

No. Part No. Description Qty.

Fig. 1-1

56225i-0101

Engine Assembly 1
