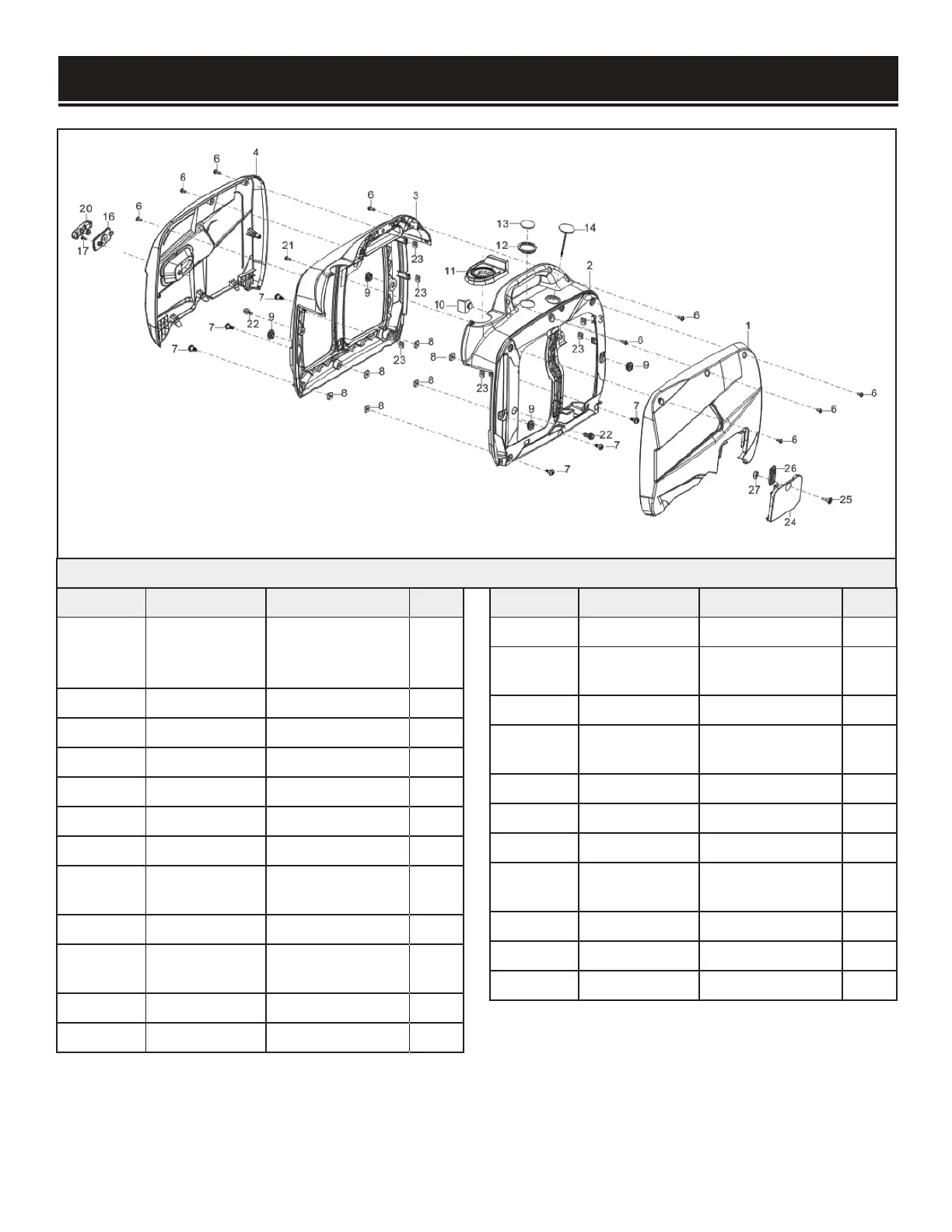

EXPLODED VIEW & PARTS LIST

No. Part No. Description Qty.

Fig. 4-1 56200-0401B

Side Panel

(Right)/Service

Panel

Fig. 4-2 56200-0402 Shell, Right 1

Fig. 4-3 56200-0403 Shell, Left 1

Fig. 4-4 56200-0404B Side Panel (Left) 1

Fig. 4-6 56200-0406 Bolt 9

Fig. 4-7 56200-0407 Bolt 6

Fig. 4-8 56200-0408 Stud 6

Fig. 4-9 56200-0409

Fuel Tank

Rubber Sleeve

Fig. 4-10 56200-0410 Rubber Washer 1

Fig. 4-11 56200-0411

Gas Tank

Opening

Fig. 4-12 56200-0412 Jacket, Rubber 1

Fig. 4-13 56200-0413 Fuel Gauge 1

No. Part No. Description Qty.

Fig. 4-14 56200-0414 Jacket, Rubber 1

Fig. 4-16 56200-0416B

Guide Starting

Rope

Fig. 4-17 56200-0417 Screw 1

Fig. 4-20 56200-0420

Starter Cable

Handle

Fig. 4-21 56200-0421B Screw 1

Fig. 4-22 56200-0422 Bolt 2

Fig. 4-23 56200-0423 Nut 6

Fig. 4-24 56200-0424B

Oil Access

Cover

Fig. 4-25 56200-0425B Bolt 1

Fig. 4-26 56200-0426B Lever 1

Fig. 4-27 56200-0427B Nut 1

Fig. 4 - Side Casing

Wen 56225i User Manual
