EXPLODED VIEW & PARTS LIST

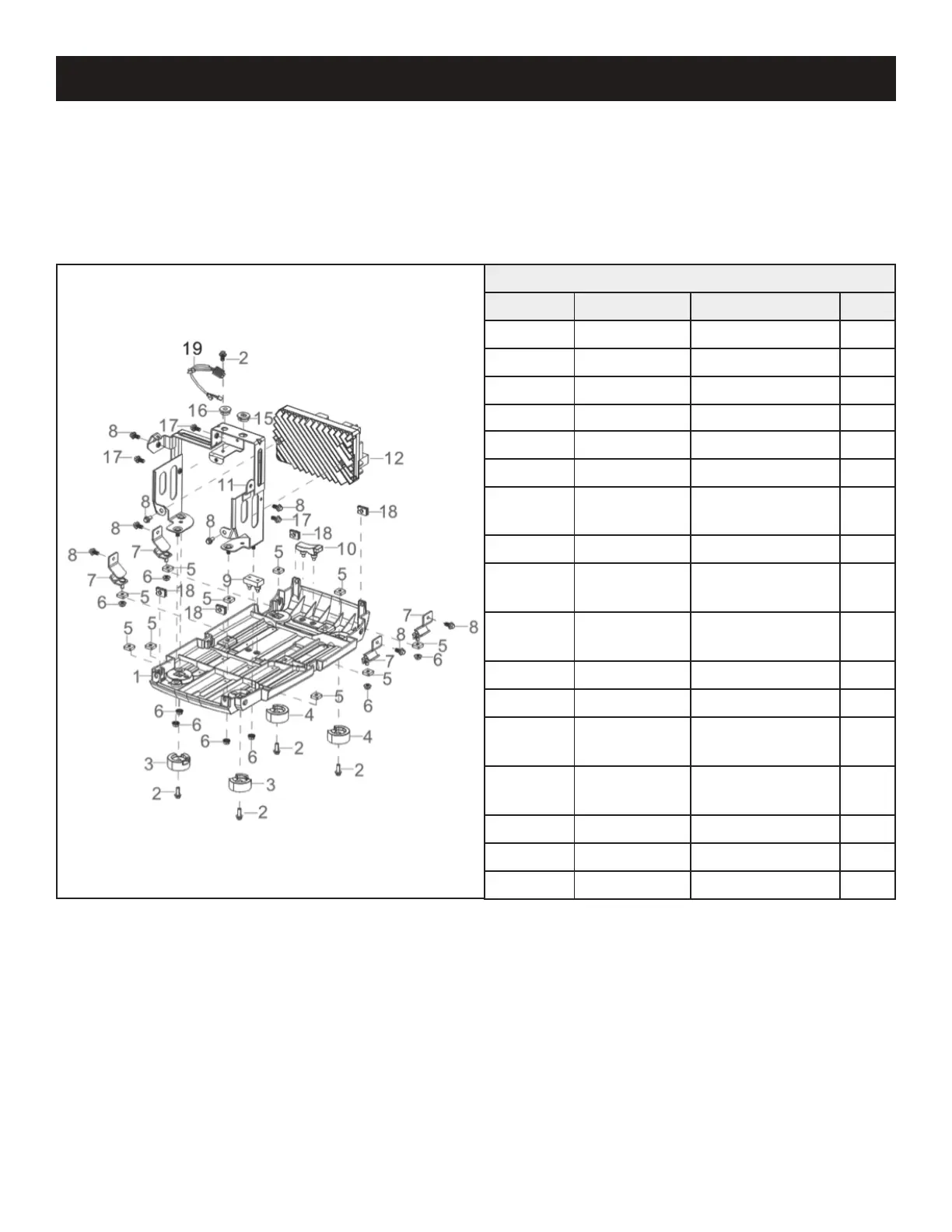

Fig. 5 - Base Plate/inverter
No. Part No. Description Qty.
Fig. 5-1 56200-0501 Plate, Bottom 1
Fig. 5-2 56200-0502 Bolt 5
Fig. 5-3 56200-0503 Seat, Frame 2
Fig. 5-4 56200-0504 Seat, Frame 2
Fig. 5-5 56200-0505 Nut 10
Fig. 5-6 56200-0506 Nut 8
Fig. 5-7 56200-0507
Cushion, Engine
Frame
4
Fig. 5-8 56200-0508 Bolt 8
Fig. 5-9 56200-0509
Bracket, Cushion
Rubber
1
Fig. 5-10 56200-0510
Bracket, Cushion
Rubber
1
Fig. 5-11 56200-0511 Support, Inverter 1
Fig. 5-12 56225i-0512 Inverter 1
Fig. 5-15 56200-0515
Sleeve, Fuel Tank
Rubber
1
Fig. 5-16 56200-0516
Sleeve, Fuel Tank
Rubber
1
Fig. 5-17 56200-0517 Bolt 3
Fig. 5-18 56200-0518 Nut 4
Fig. 5-19 56225i-0519 Voltage Regulator 1
