EXPLODED VIEW & PARTS LIST

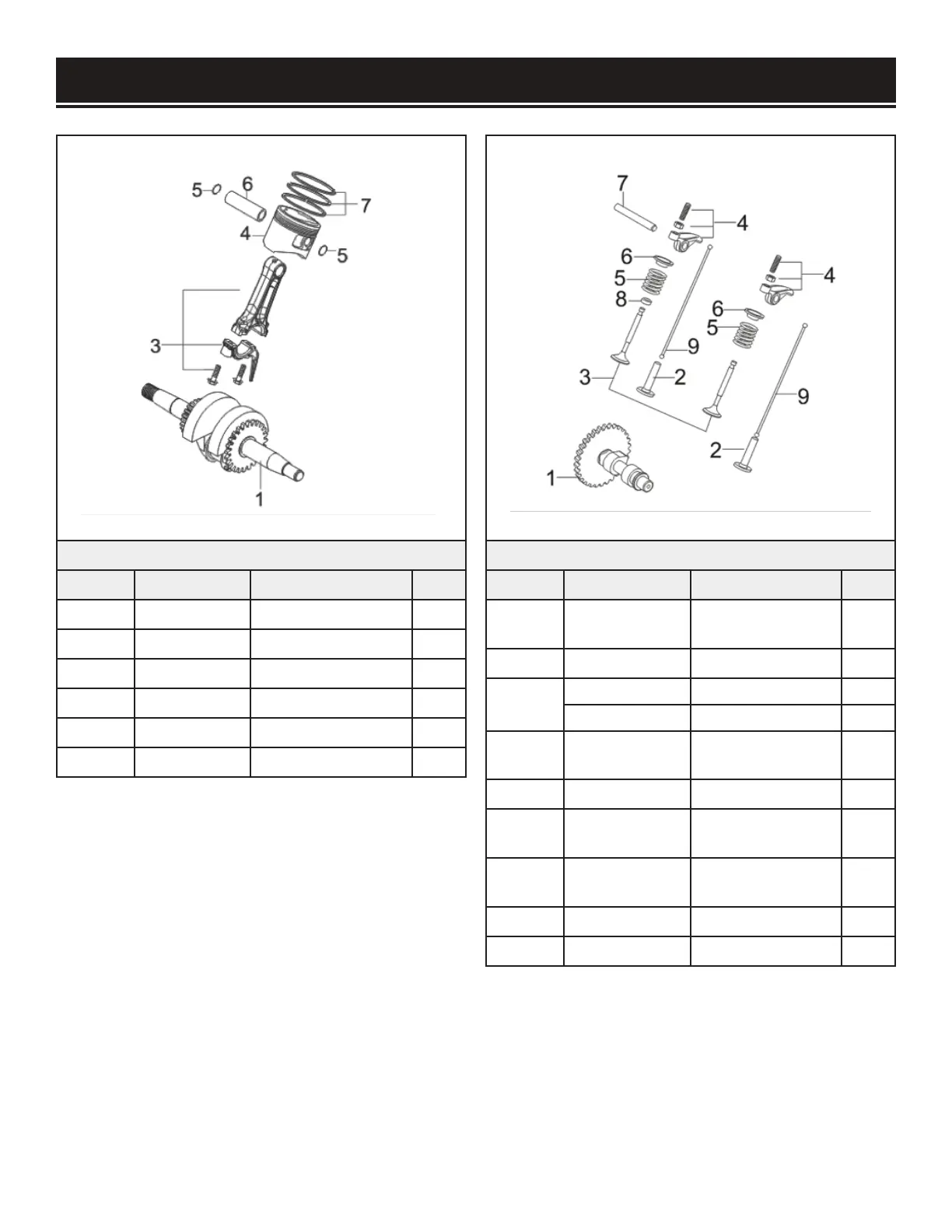

Fig. 10 - Piston Ring Set & Crankshaft
No. Part No. Description Qty.
Fig.10-1 56200-1001 Crankshaft Assy. 1
Fig.10-2 56225i-1002 Rod, Connecting 1
Fig.10-3 56200-1003 Piston 1
Fig.10-4 56200-1004 Clip, Piston Pin 2
Fig.10-5 56200-1005 Pin, Piston 1
Fig.10-6 56200-1007 Ring Assy, Piston 1
Fig. 11 - Valve Train/Camshaft Assembly
No. Part No. Description Qty.
Fig.11-1 56225i-1101
Camshaft
Assembly
1
Fig.11-2 56200-1103 Tappet, Valve 2
Fig.11-3
56200-1104.1 Inner Valve 1
56200-1104.2 Outer Valve 1
Fig.11-4 56200-1105
Rocker Subas-
sembly, Valve
2
Fig.11-5 56200-1106 Spring, Valve 2
Fig.11-6 56200-1107
Seat, Valve
Spring
2
Fig.11-7 56200-1112
Shaft, Valve
Rocker
1
Fig.11-8 56200-1113 Guide, Seal 1
Fig.11-9 56200-1114 Lifter, Valve 2
