Wen 56225i

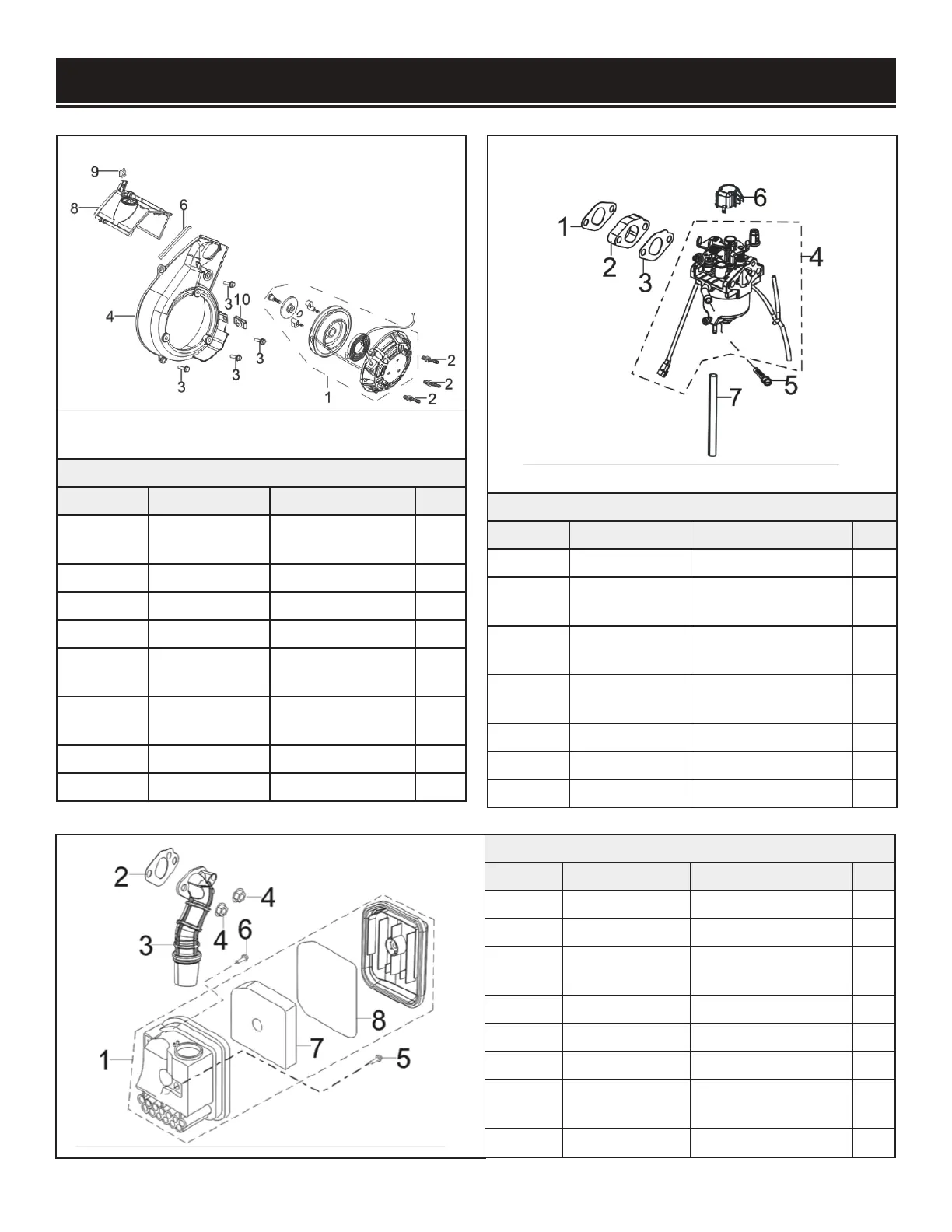

EXPLODED VIEW & PARTS LIST
Fig. 13 - Carburetor Assembly
No. Part No. Description Qty.
Fig.13-1 56200-1301 Gasket, Carburetor 1
Fig.13-2 56200-1302
Plate, Carburetor
Insulator
1
Fig.13-3 56200-1303
Gasket, Carburetor
Insulator
1
Fig.13-4 56200-1304B
Carburetor
Assembly
1
Fig.13-5 56200-1305 Fuel Filter 1
Fig.13-6 56200-1306B Cap 1
Fig.13-7 56200-1307B Tube, Fuel 1
Fig. 14 - Air Filter Assembly
No. Part No. Description Qty.
Fig.14-1 56200-1401 Cleaner, Air 1
Fig.14-2 56200-1402 Gasket, Air Cleaner 1
Fig.14-3 56200-1403
Duct, Air Cleaner
Intake
1
Fig.14-4 56200-1404 Nut 2
Fig.14-5 56200-1405 Stud 1
Fig.14-6 56200-1406 Stud 1
Fig.14-7 56200-1407B
Element,
Air Cleaner
1
Fig.14-8 56200-1408B Ring, Seal 1
Fig. 12- Recoil Start Assembly
No. Part No. Description Qty.
Fig.12-1 56225i-1201
Recoil Starter
Assembly
1
Fig.12-2 56200-1202B Bolt 3
Fig.12-3 56200-1203 Bolt 4
Fig.12-4 56200-1204 Shroud 1
Fig.12-6 56200-1206
Strip, Shroud
Seal
1
Fig.12-8 56200-1208
Air Deflector,
Cylinder Head
1
Fig.12-9 56200-1209B Limit Card 1
Fig.12-10 56200-1210 Nut 1
