NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at
(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not
covered by the two-year warranty.

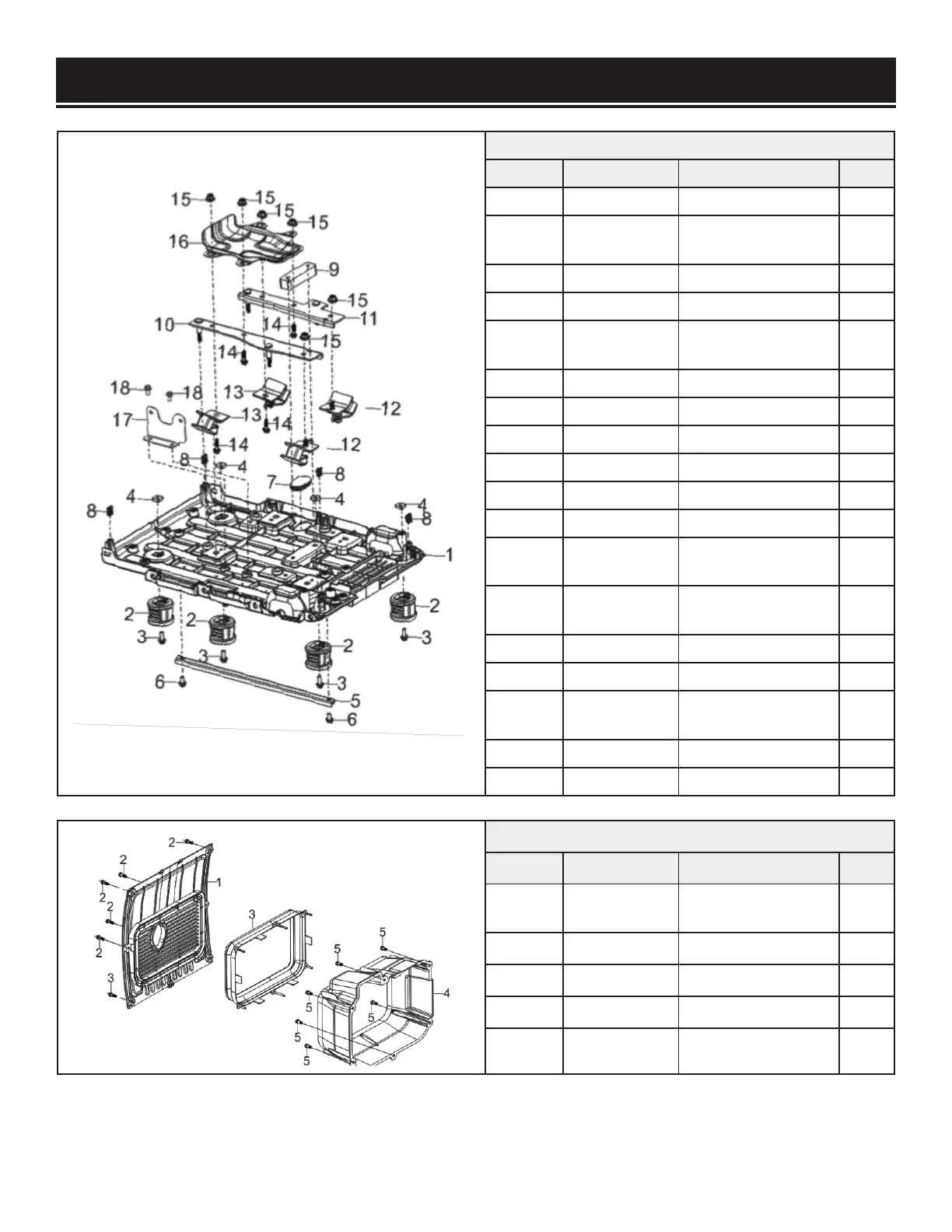

EXPLODED VIEW & PARTS LIST
Fig. 17 - Baseplate
Fig. No. Part No. Description Qty.
17-1 56380i-1701 Baseplate 1
17-2 56380i-1702
Engine Frame
Damper Seat
4
17-3 56310i-0209 Bolt 4
17-4 56200-0505 Nut 4
17-5 56380i-1705
Reinforcement
Plate
1
17-6 56200-0508 Bolt 2
17-7 56310i-1407 Cover Plug 1
17-8 56380i-1708 Nut 4
17-9 56380i-1709 Cushion 1
17-10 56380i-1710 Left Support 1
17-11 56380i-1711 Right Support 1
17-12 56310i-1409
Left Engine Frame
Damper
2
17-13 56310i-1411
Right Engine
Frame Damper
2
17-14 56310i-1412 Bolt 4
17-15 56310i-1404 Nut 10
17-16 56380i-1716
Crankcase Airflow
Manifold
1
17-17 56380i-1717 Air Filter Support 1
17-18
56200-0508
Bolt 2
Fig. 18 - Muffler Cover
Fig. No. Part No. Description Qty.
18-1 56380i-1801
Outer Muffler
Cover
1
18-2 56380i-1802 Bolt 6
18-3 56380i-1803 Heat Insulator 1
18-4 56380i-1804 Inner Muffler Cover 1
18-5 56200-0406 Bolt 6
46
