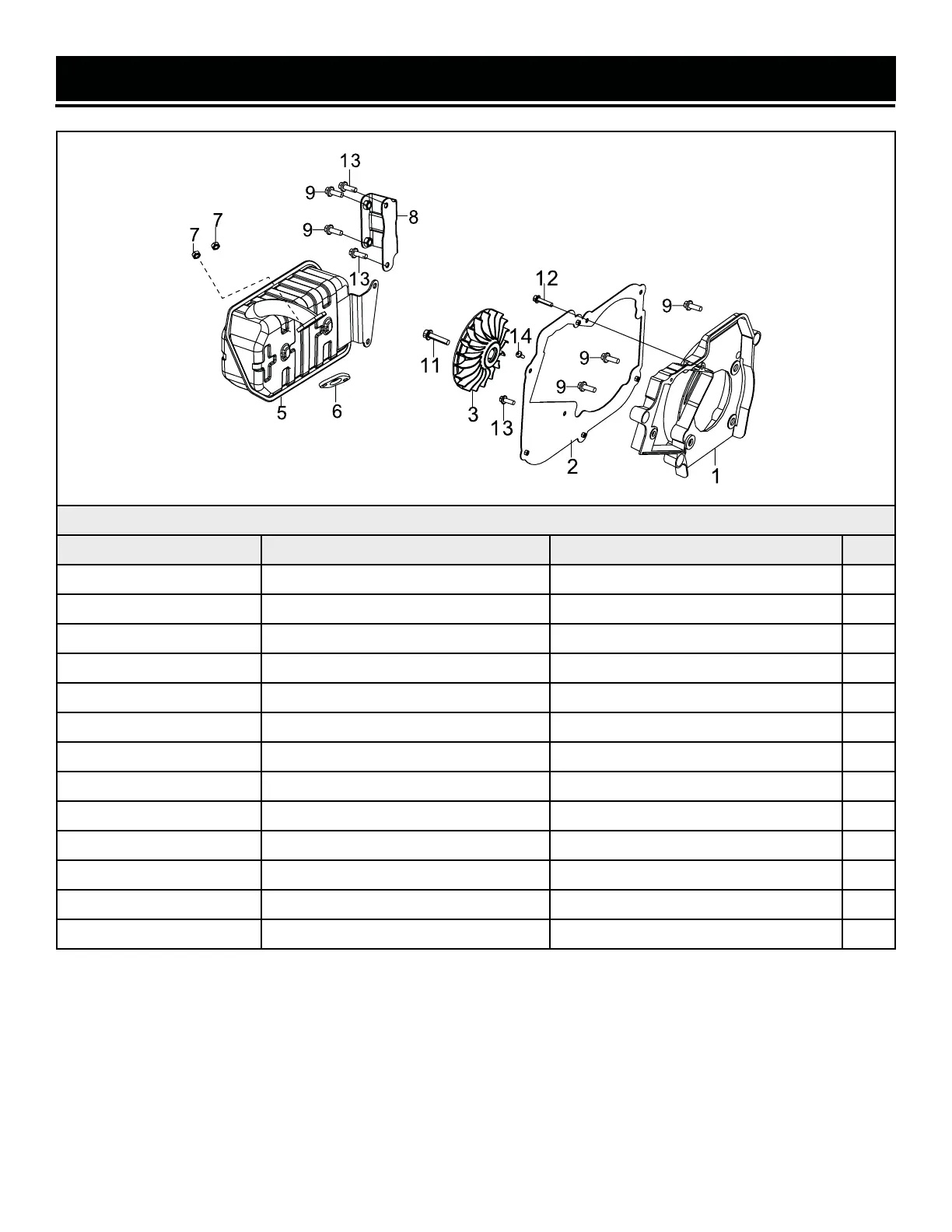

Fig. 11 - Muffler Assembly
No. Part No. Description Qty.
11-1 56380i-1101 Shroud 1
11-2 56380i-1102B Muffler Cover Support 1
11-3 56380i-1103 Impeller 1
11-5 56380i-1105 Muffler Assembly 1
11-6 56380i-1106 Muffler Gasket 1
11-7 56310i-1010 Nut, M8 2
11-8 56380i-1108 Muffler Bracket 1
11-9 56310i-1009 Bolt, M8x16 5
11-11 56310i-1004 Bolt, M8x20 1
11-12 56380i-1112 Bolt, M6x35 1
11-13 56200-0508 Bolt, M6x12 3
11-14 56380i-1114 Bolt, PT4x13 1
N.P. 56380i-1115 Spark Arrestor 1
EXPLODED VIEW & PARTS LIST
