EXPLODED VIEW & PARTS LIST

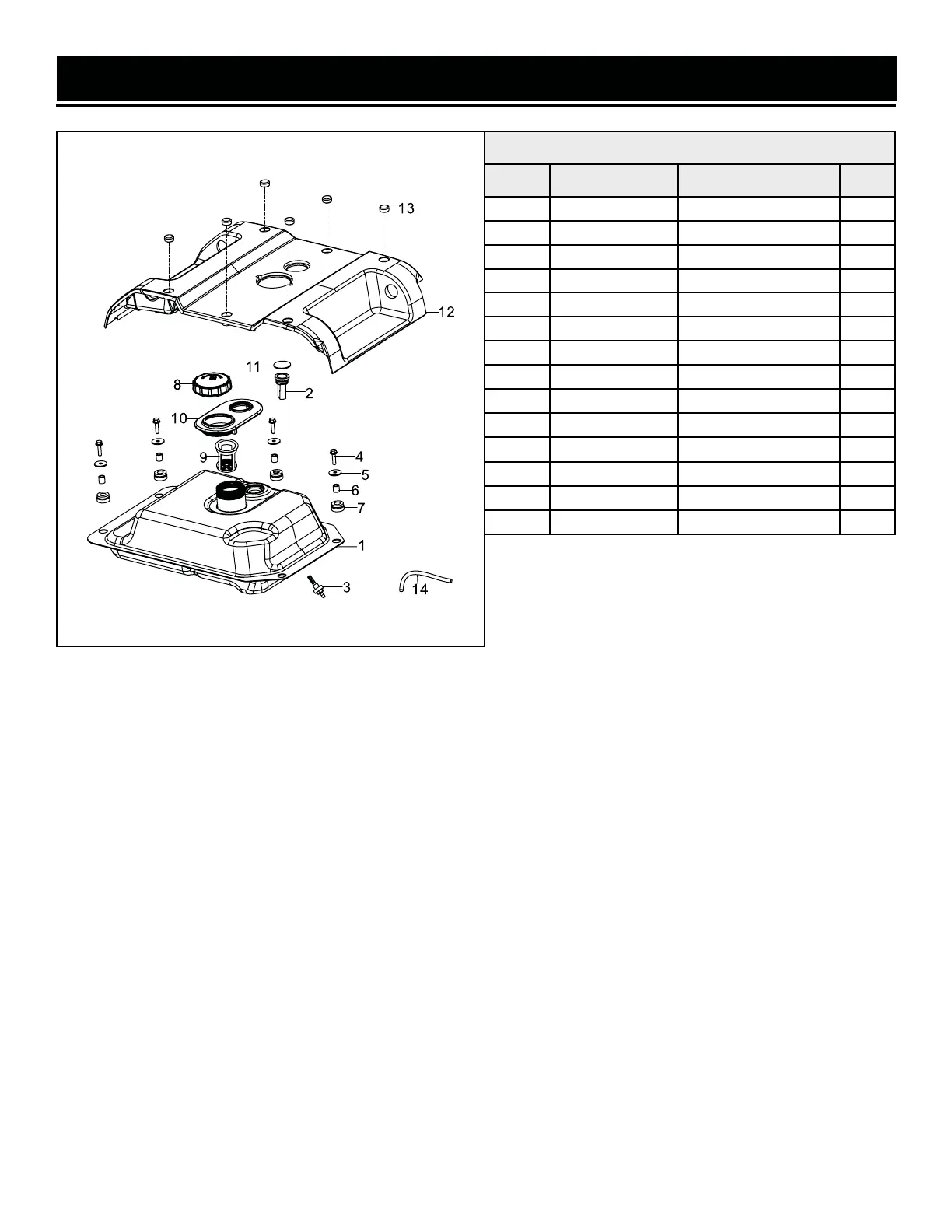

Fig. 12 - Fuel Tank Assembly
No. Part No. Description Qty.
12-1 56380i-1201 Fuel Tank Assembly 1
12-2 56380i-1202 Fuel Gauge 1
12-3 56380i-1203 Fuel Tank Outlet 1
12-4 56310i-1701 Bolt, M6x20 4
12-5 56380i-1205 Flat Washer, 6mm 4
12-6 56380i-1206 Bushing 4
12-7 56380i-1207 Fuel Tank Damper 4
12-8 56380i-1208 Fuel Tank Cap 1
12-9 56380i-1209 Fuel Strainer 1
12-10 56380i-1210 Fuel Tank Sleeve 1
12-11 56200-0413 Fuel Level Sight Glass 1
12-12 56380i-1212 Upper Cover 1
12-13 56380i-1213 Cover Plug 1
12-14 56400iX-1214 Rubber Jacket 1
