Wen 56450i User Manual

No. Part No. Description Qty.
13-1 56380i-1301
Engine Frame
Assembly
1
13-2 56450i-1302
Socket Button
Head Screw,
M8x30
4
13-3 56380i-1303
Socket Flanged
Bolt, M6x12
9
13-4 56380i-1324 Handle 1
13-5 56380i-1323 Front Handle 1
13-6 56400iX-1331 Bolt, M6x10 1
13-7 56400iX-1332 Flat Washer, 5mm 1
13-8 56310i-1420 Bolt, M6x25 3
13-9 56310i-1419 Bushing 3
13-10 56310i-1421 Rubber Jacket 3
13-11 56450i-1311 Inverter 1
13-12 56310i-1425
Socket Flanged
Bolt, M6x16
1
No. Part No. Description Qty.
13-13 56380i-1313 Rubber Sleeve 1
13-14 56380i-1314
Carbon Tank
Mounting Bracket
1
13-15 56380i-1315 Carbon Tank 1
13-16 56380i-1316
Primary Carbon
Tank Hose
1
13-17 56380i-1317B Air Filter Hose 1
13-18 56380i-1318
Secondary Carbon
Tank Hose
1
13-19 56380i-1319 Clamp 2
13-20 56380i-1320 Clamp 1
13-21 56380i-1321 Clamp 1
13-22 56380i-1326 Screw, M4x8 1
13-23 56380i-1327 Grounding Wire 1

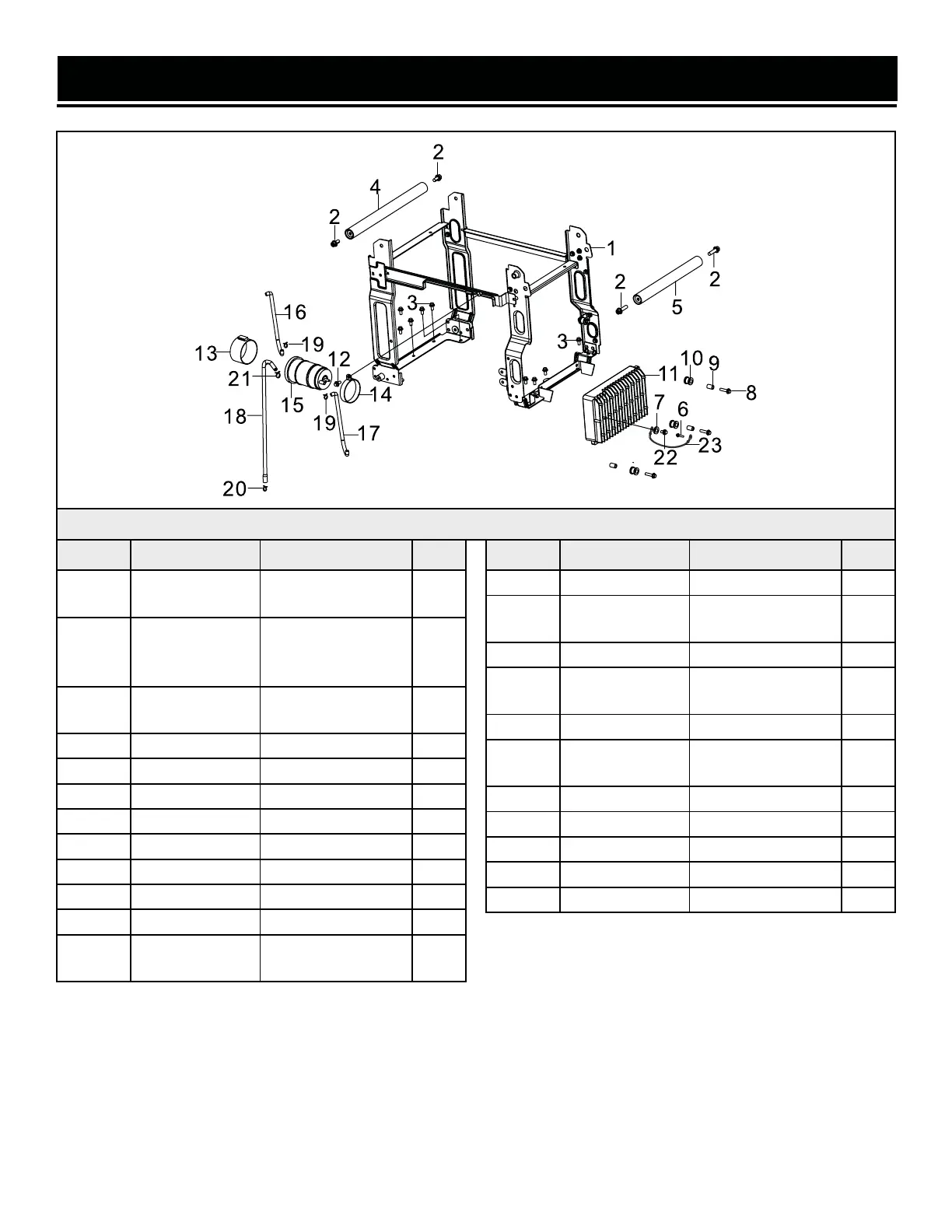

Fig. 13 - Frame
EXPLODED VIEW & PARTS LIST
42
