Wen 56450i User Manual

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1 56200-0615
Self-Tapping Screw,
ST4.2x16
3
14-2 56380i-1402 Switch Subassembly 1
14-3 56200-0621B Cover Plate 1
14-4 56200-0624B Adjustment Spring 1
14-5 56200-0623 Steel Ball 1
14-6 56200-0502 Bolt, M6x14 1
14-7 56200-0628 Fuel Cock Assembly 1
14-8 56310i-1628
Choke Handle
Subassembly
1
14-9 56380i-1409 Bolt, M5x16 6
14-10 56380i-1410 Panel Seat 1
14-11 56200-0302 Screw, M5x12 6
14-12
56450i-
1412ASM
Control Panel
Subassembly
1
14-13 56200-0514 Screw, M4x16 1
14-14 DF400i-1428 Knob 1
14-15 56200-0425C Bolt, M5x16 1
14-16 56200-0427B Lock Nut, M5 1
14-17 56380i-1417 Latch 1
14-18 56380i-1418
Battery Compartment
Cover
1
No. Part No. Description Qty.
14-19 56380i-1419 Multimeter 1
14-20 56380i-1420 Reset Button 1
14-21 56380i-1421
NEMA 5-20R Duplex
Outlet
1
14-22 56380i-1422 Switch Subassembly 1
14-23 56380i-1423
Parallel Port,
Negative
1
14-24 56380i-1424 Parallel Port, Positive 1
14-25 56380i-1425 12V DC Outlet 1
14-26 56380i-1426 USB Outlet 1
14-27 56380i-1427 Grounding Nut 1
14-28 56380i-1428 NEMA TT-30R Outlet 1
14-29 56380i-1429 DC Breaker, 10A 1
14-30 56380i-1430 AC Breaker, 20A 1
14-31 56380i-1431 Shutdown Switch 1
14-32 56380i-1432 Rectifier Bridge 1
14-33 56380i-1433 Clamp 1
14-34 56380i-1434 Fuel Tube 1
14-35 56380i-1435 Clamp 1

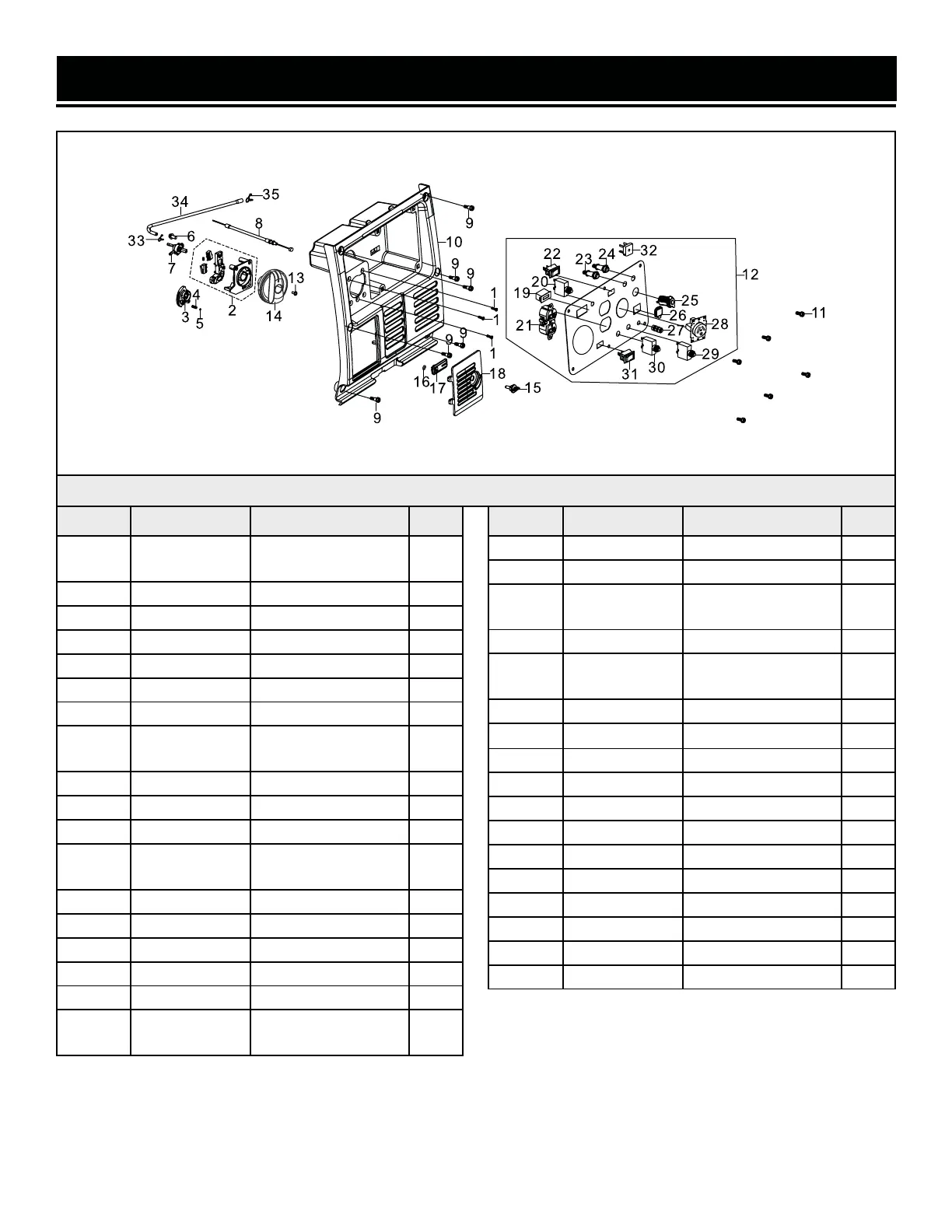

Fig. 14 - Control Panel Assembly
43
