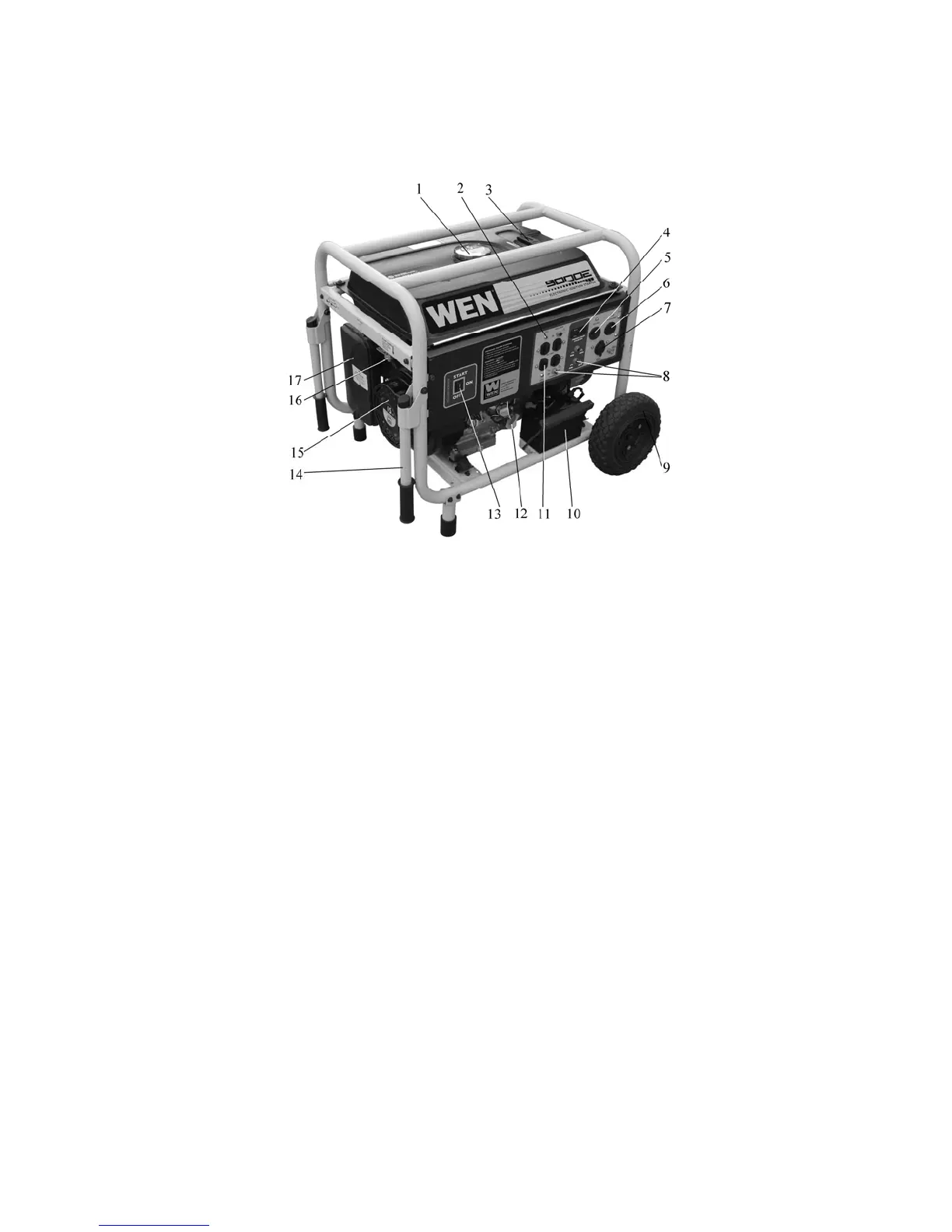

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and controls
of your generator.
(1) Fuel Cap- Access to the fuel tank for
adding fuel.
(2) Power Indicator-Green lights that turn
on to indicate the output of power to
each receptacle.
(3) Fuel Gauge- Indicates the amount of
fuel in the tank.
(4) Digital Engine hour counter
(5) 120 Volt 30A Receptacle- To connect
electrical devices that run 120 Volt, 60
Hz, single phase, AC current.
(6) 240/120 Volt AC Receptacle- To
connect electrical devices that run 120
and/or 240 Volt, 60 Hz, single phase,
AC current
(7) 12V Cigarette lighter Style DC
Receptacle
(8) Circuit Reset Buttons- Reset buttons
that protect the generator from electrical
overload.
(9) 10" Never Flat Wheels- For easy
transport.
(10) 12V Battery
(11) 120 Volt AC Duplex Receptacle- To
connect electrical devices that run 120 Volt,
60 Hz, single phase, AC current.
(12) Oil Fill and Dipstick- Location for
checking and filling engine oil.
(13) Engine Switch- Used to start/stop engine.
(14) Handles- For easy transport.
(15) Recoil Starter- Pull-cord for starting
engine.
(16) Fuel Valve- Allows fuel to enter engine.
(17) Air Cleaner- a removable, cleanable,
sponge-like element that limits the amount
of dirt pulled into the engine.
7
