ASSEMBLY
In order to best protect the generator while in the package, this product comes with some
components disassembled. Please complete the following assembly steps before proceeding to use
the generator. For ease of assembly, we recommend attaching the components in the order listed in
this manual.
If after reading this section, you are unsure about how to perform any of the steps, please call
(800) 232-1195 M-F 8-5 CST for customer service.
WARNING: This generator is heavy. Some assembly procedures may require
lifting equipment or two people.
Attach Feet
To attach the feet to the generator, perform the following steps:
1. Find a wood block or similar item that is 5 inches thick or greater. Lift the end of the
generator that has the recoil starter onto the block (see figure 1). Be careful not to obstruct
any holes on the generator frame.
2. Place one leg onto the frame. Line up the holes on the generator frame with the holes on the
bracket portion of the leg. Tighten using two M6x40 bolts, two M6 nuts, and the included
wrench.
3. Repeat step 2 for the other generator leg.

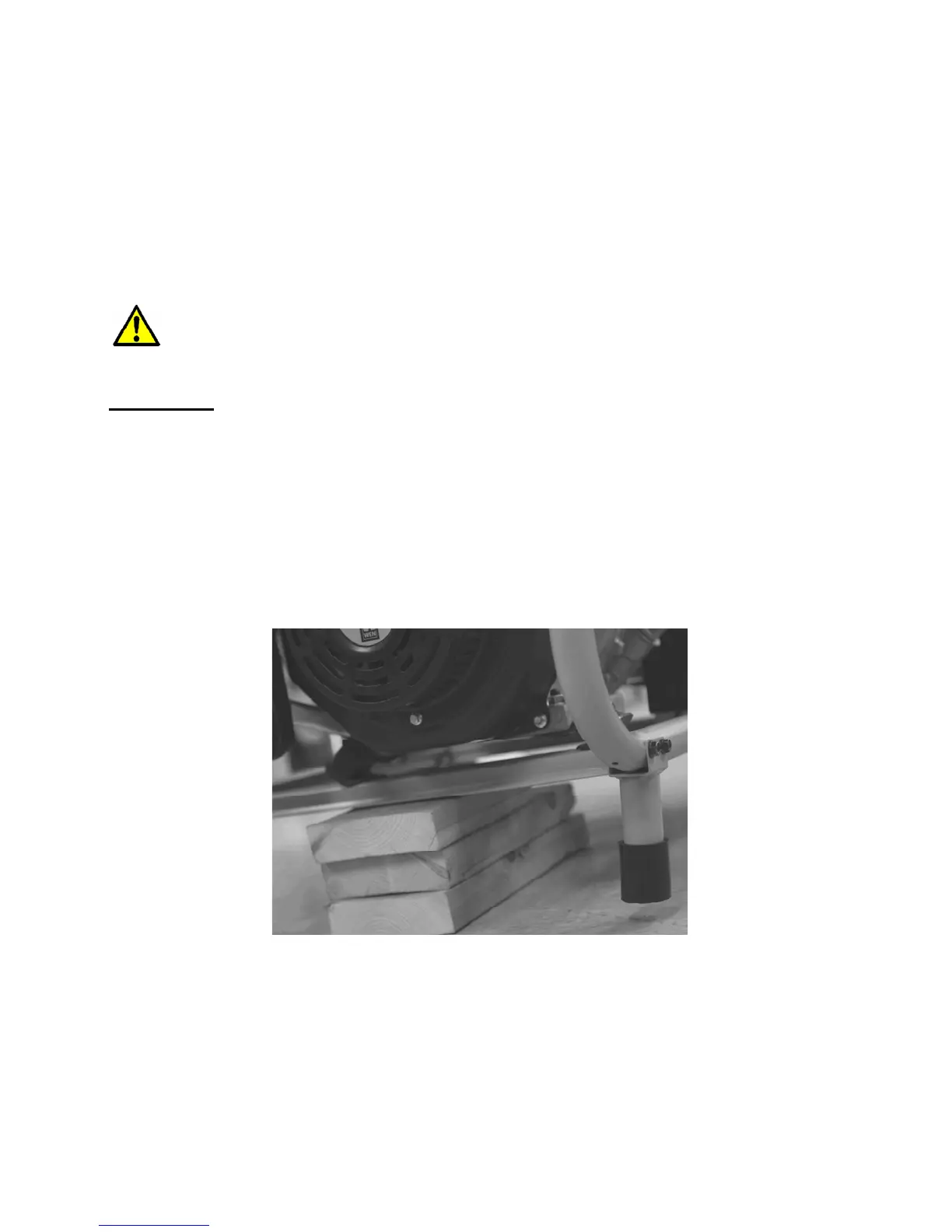

Figure 1- Attach Feet
