Wen BA1411

KNOW YOUR BANDSAW
TOOL PURPOSE

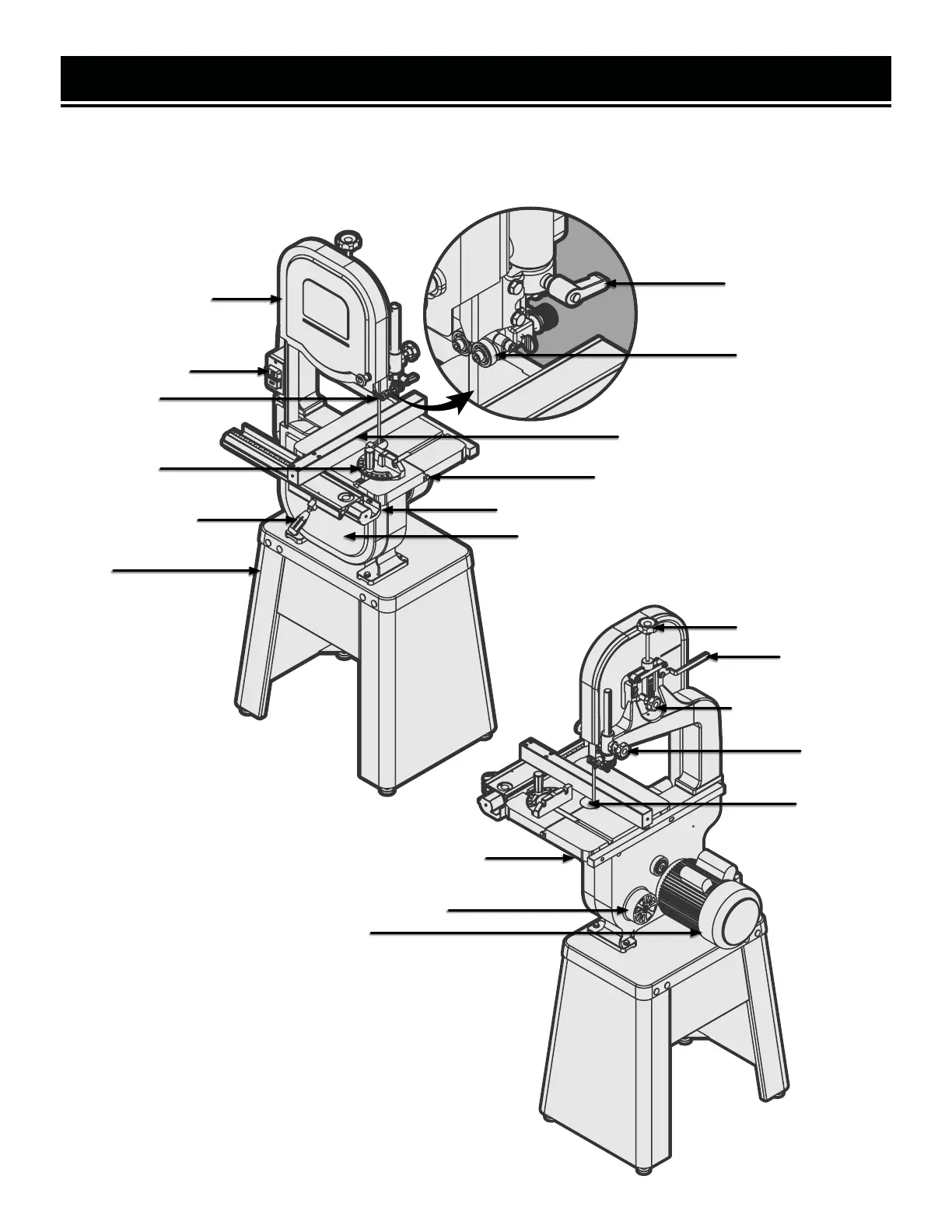

Make continuous and precise cuts with your WEN Band Saw. Refer to the following diagrams to become familiar-
ized with all the parts and controls of your band saw. The components will be referred to later in the manual for
assembly and operation instructions.
Upper Wheel Cover
ON / OFF Switch
Fence
Blade Guard
Upper Blade Guides
Table Pin
Miter Gauge
Lower Wheel Cover
Fence Lock Lever
Front Table Lock Knob
Stand
Blade Tension Knob
Blade Tension
Quick Release Lever
Blade Tracking Knob
Guide Post
Lock Knob
Table Insert
Rear Table Lock Knob
4-Inch Dust Port
Motor
Assembly Lock Lever
