33

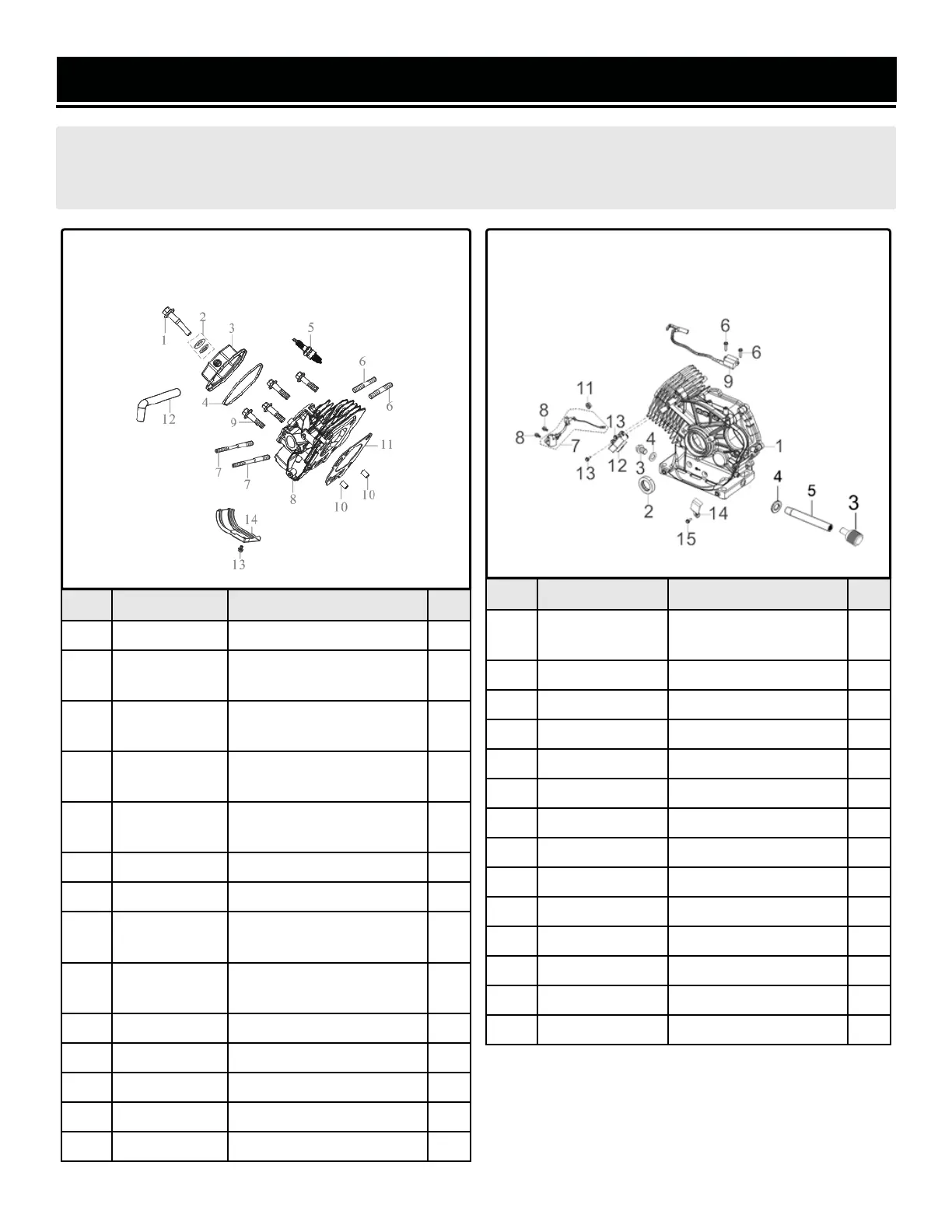

EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at
1-(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not
covered by the two-year warranty. Not all parts may be available for purchase.
No. Part No. Description Qty.
1-1 GN625i-0101 Cylinder Head Cover Bolt 1
1-2 GN625i-0102
Cylinder Head Cover Bolt
Gaskets
1
1-3 GN625i-0103
Cylinder Head Cover
Subassembly
1
1-4 GN625i-0104
Cylinder Head Cover
Gasket
1
1-5 56310i-0104
Spark Plug, Torch F6RTC
(NGK BPR6ES)
1
1-6 56310i-0109 Bolt, M8x34 2
1-7 GN625i-0107 Stud Bolt, M6x108 2
1-8 GN625i-0108
Cylinder Head
Subassembly
1
1-9 GN625i-0109
Cylinder Head Bolt,
M10x80
4
1-10 GN625i-0110 Pin 2
1-11 GN625i-0111 Cylinder Head Gasket 1
1-12 GN625i-0112 Breather Tube 1
1-13 56200-1202 Bolt, M6x12 1
1-14 GN625i-0114 Cylinder Body Shroud 1
ASSEMBLY 1 - CYLINDER HEAD,
SPARK PLUG
No. Part No. Description Qty.
2-1 GN625i-0201
Crankcase
Subassembly
1
2-2 GN625i-0202 Oil Seal 1
2-3 GN625i-0203 Oil Drain Valve 1
2-4 GN625i-0204 Flat Washer, 12mm 1
2-5 GN625i-0205 Oil Drain Hose 1
2-6 GN400i-0111 Bolt, M5x20 2
2-7 GN625i-0207 Engine Oil Sensor 1
2-8 GN625i-0208 Bolt, M6x16 2
2-9 GN625i-0209 Ignition Coil 1
2-11 GN625i-0211 Nut, M10 1
2-12 GN625i-0212 Trigger 1
2-13 GN400i-0910 Bolt, M5x16 2
2-14 GN625i-0214 Wiring Clamp 1
2-15 GN625i-0215 Bolt, M5x10 1
ASSEMBLY 2 - CRANKCASE
To Next Page
