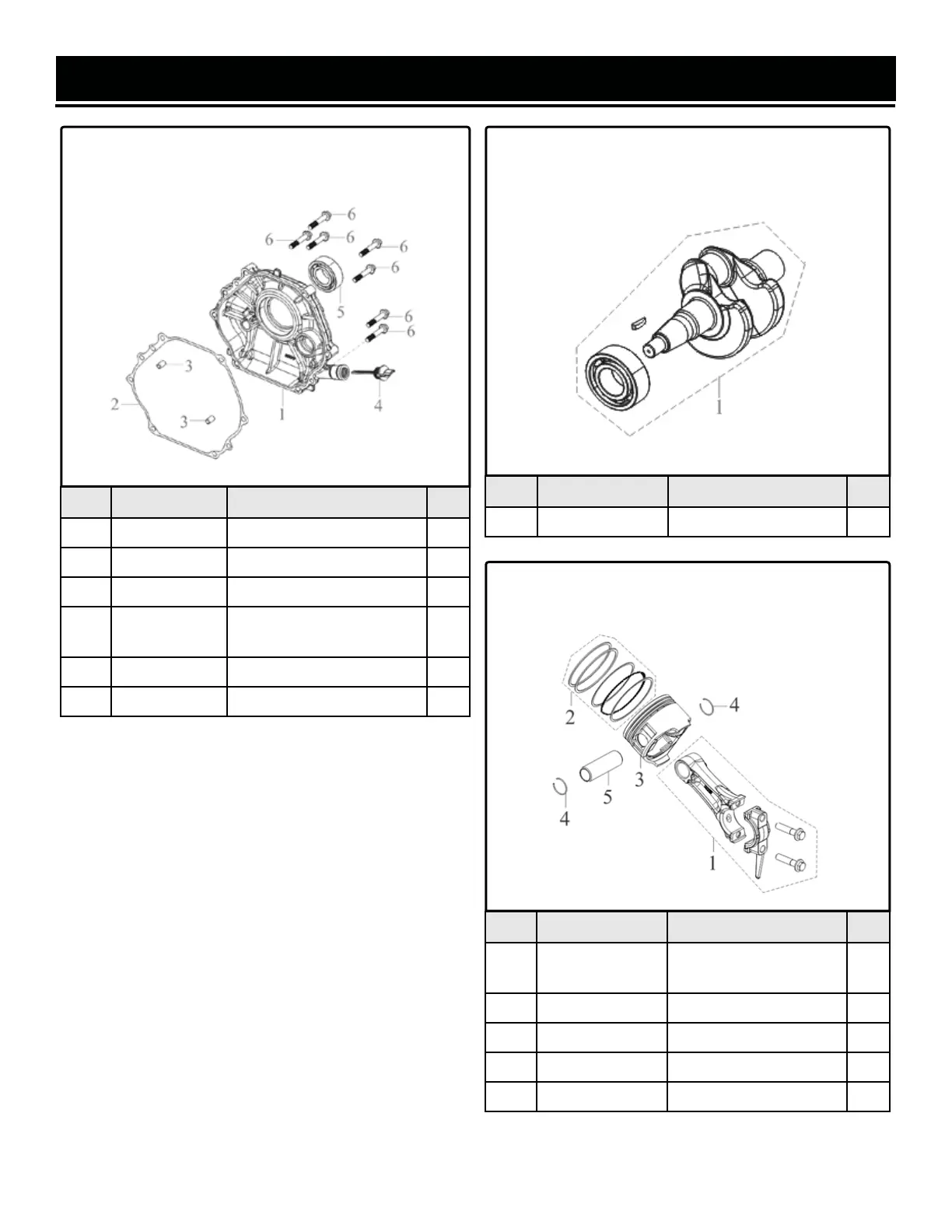

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-1 GN625i-0301 Crankcase Cover 1
3-2 GN625i-0302 Crankcase Cover Gasket 1
3-3 GN400i-0205 Pin 2
3-4 GN625i-0304
Oil Dipstick
Subassembly
1
3-5 GN625i-0305 Bearing, 6206P53 1
3-6 GN400i-1310 Bolt, M8x35 7
ASSEMBLY 3 - CRANKCASE COVER
No. Part No. Description Qty.
4-1 GN625i-0401 Crankshaft Assembly 1
ASSEMBLY 4 - CRANKSHAFT
No. Part No. Description Qty.
5-1 GN625i-0501
Connecting Rod
Assembly
1
5-2 GN625i-0502 Piston Ring Set 1
5-3 GN625i-0503 Piston 1
5-4 GN625i-0504 Piston Pin Clip 2
5-5 GN625i-0505 Piston Pin 1
ASSEMBLY 5 - PISTON RING SET,
CONNECTING ROD
