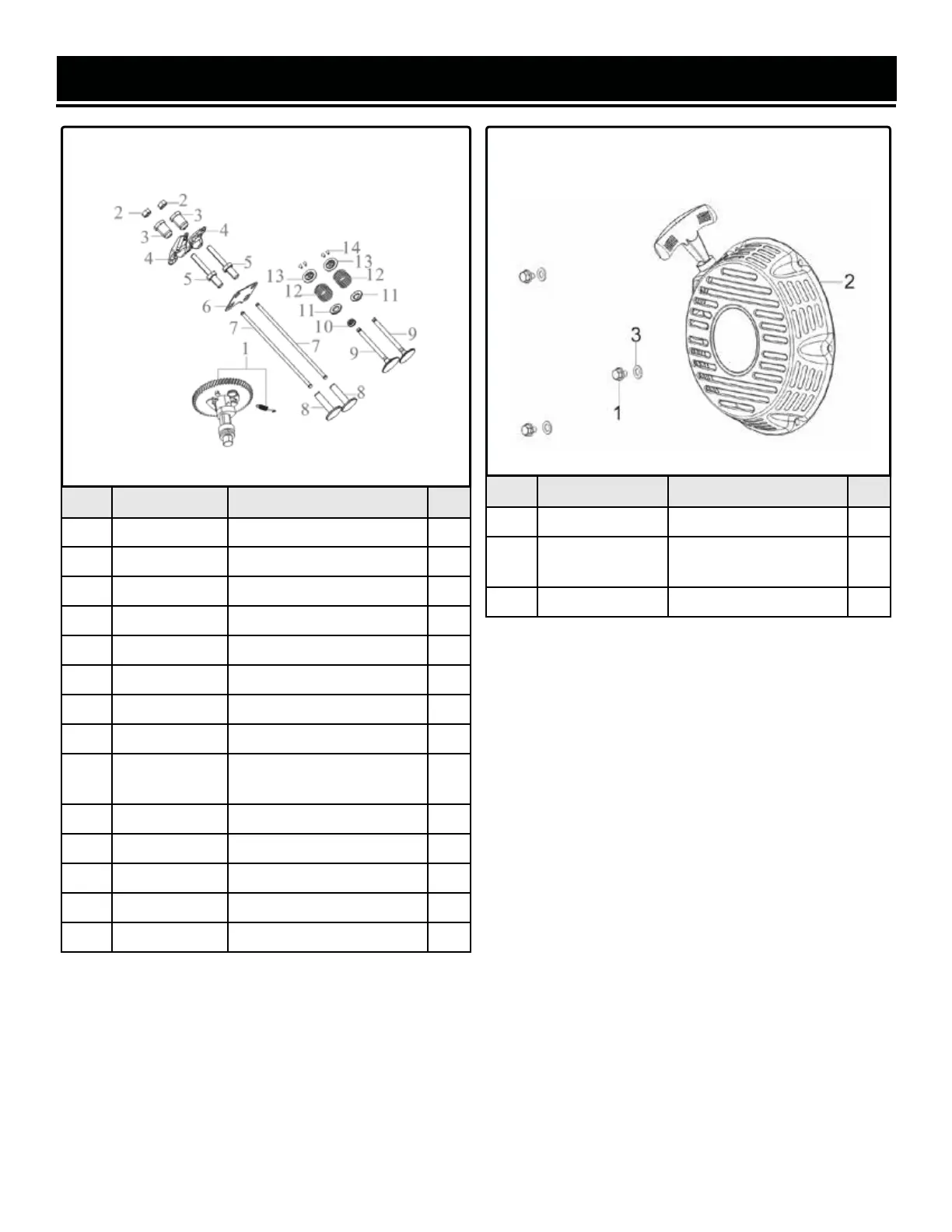

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
6-1 GN625i-0601 Camshaft Assembly 1
6-2 GN400i-0602 Valve Lock Nut 2
6-3 GN400i-0603 Valve Adjustment Nut 2
6-4 GN625i-0604 Valve Rocker Arm 2
6-5 GN400i-0605 Rocker Shaft Bolt 2
6-6 GN625i-0606 Lifter Stopper Plate 1
6-7 GN625i-0607 Valve Lifter 2
6-8 GN625i-0608 Valve Tappet 2
6-9 GN625i-0609
Valve Set (Intake &
Exhaust)
1
6-10 GN625i-0610 Seal Guide 2
6-11 GN625i-0611 Valve Spring Retainer 2
6-12 GN625i-0612 Valve Spring 2
6-13 GN625i-0613 Valve Spring Seat 2
6-14 GN625i-0614 Valve Lock Clamp 4
ASSEMBLY 6 - VALVE TRAIN, CAMSHAFT
No. Part No. Description Qty.
7-1 GN625i-0701 Bolt, M6x20 3
7-2 GN625i-0702
Recoil Starter
Assembly
1
7-3 GN625i-0703 Flat Washer, 6mm 3
ASSEMBLY 7 - RECOIL STARTER
