Wen GN625i

36

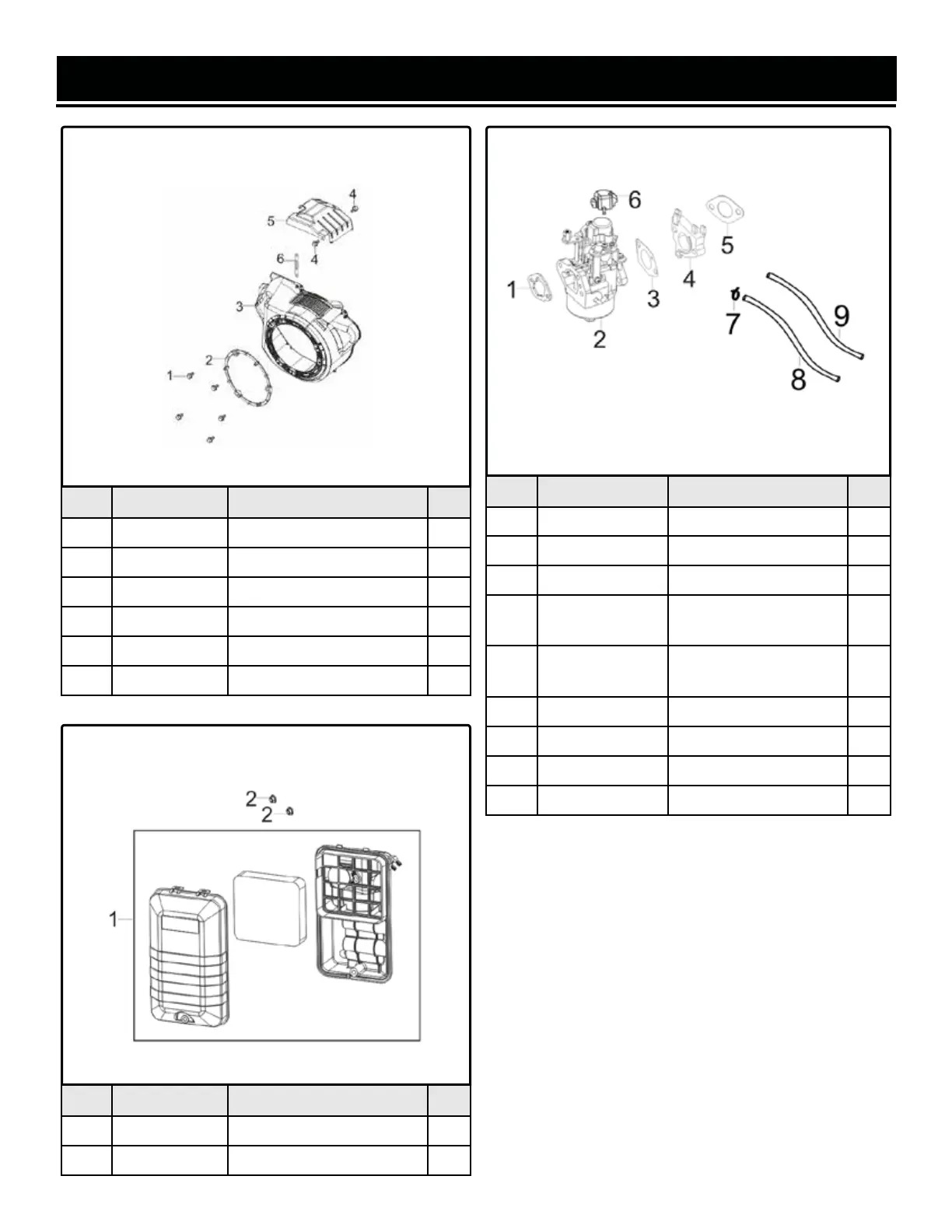

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
8-1 56200-1202 Bolt, M6x12 5
8-2 GN625i-0802 Retaining Ring 1
8-3 GN625i-0803 Shroud 1
8-4 56200-1202 Bolt, M6x12 2
8-5 GN625i-0805 Cylinder Body Shroud 1
8-6 GN400i-0703 Clip 1
ASSEMBLY 8 - SHROUD, LOWER SHIELD
No. Part No. Description Qty.
9-1 GN625i-0901 Air Filter Gasket 1
9-2 GN625i-0902 Carburetor Assembly 1
9-3 GN625i-0903 Carburetor Gasket 1
9-4 GN625i-0904
Carburetor Insulator
Plate
1
9-5 GN625i-0905
Carburetor Insulator
Gasket
1
9-6 56200-0103 Cap 1
9-7 GN625i-0907 Hose Clamp 1
9-8 GN625i-0908 Fuel Tube 1
9-9 GN625i-0909 Rubber Cover 1
ASSEMBLY 9 - CARBURETOR
No. Part No. Description Qty.
10-1 GN625i-1001 Air Filter Assembly 1
10-2 56200-0506 Nut, M6 2
ASSEMBLY 10 - AIR FILTER
