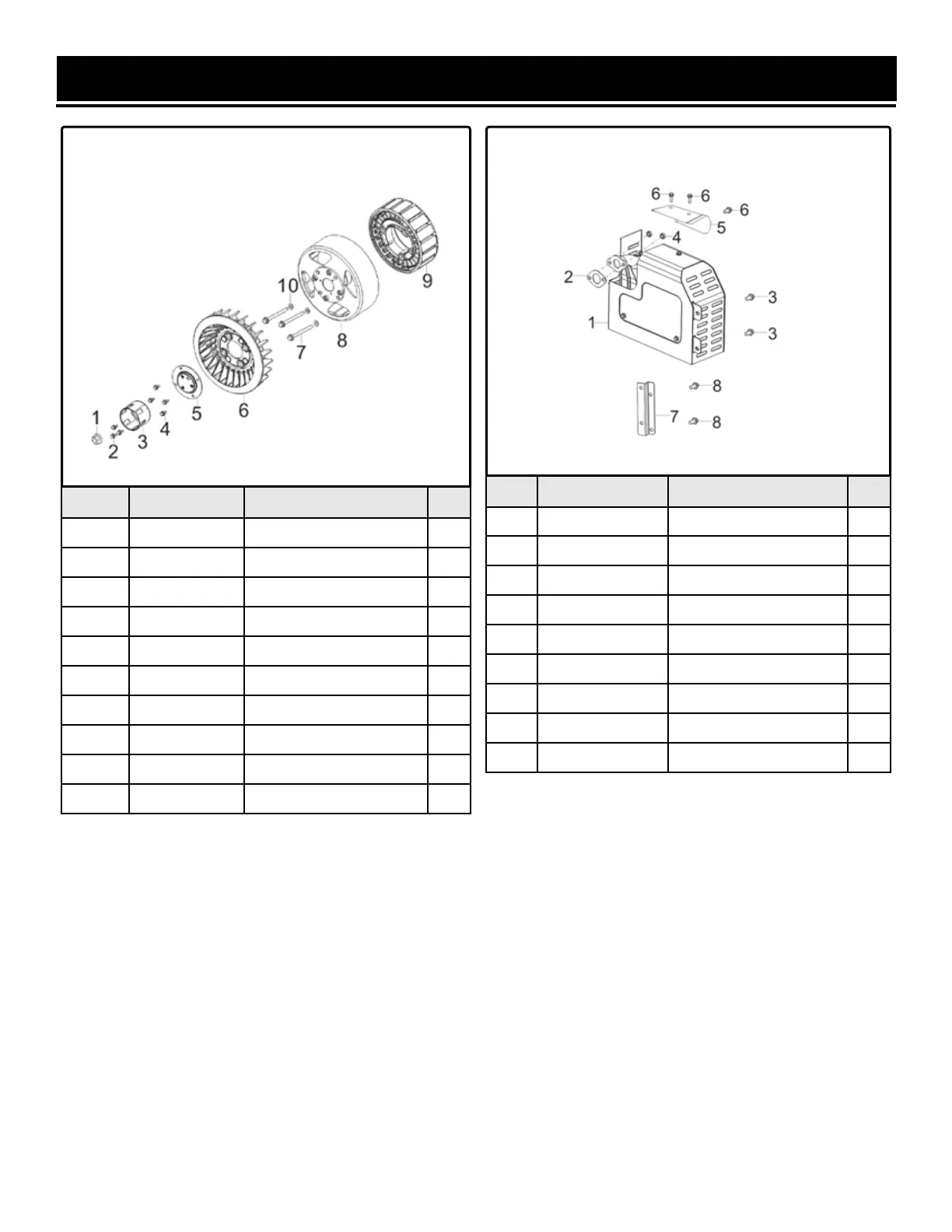

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
11-1 GN625i-1101 Flywheel Nut, M16-1.5 1
11-2 56200-1202 Bolt, M6x12 3
11-3 GN625i-1103 Starter Pulley 1
11-4 56200-1202 Bolt, M6x12 4
11-5 56380i-0705 Starter Pulley Seat 1
11-6 GN625i-1106 Impeller 1
11-7 56310i-1103 Screw, M6x60 3
11-8 GN625i-1108 Rotor 1
11-9 GN625i-1109 Stator 1
11-10 GN625i-1110 Flat Washer, 6mm 3
ASSEMBLY 11 - FLYWHEEL, IMPELLER,
STARTER PULLEY
No. Part No. Description Qty.
12-1 GN625i-1201 Muffler Assembly 1
N.P. GN625i-1201.1 Spark Arrestor 1
12-2 GN625i-1202 Muffler Gasket 1
12-3 GN625i-1203 Bolt, M8x16 2
12-4 GN400i-1108 Nut, M8 2
12-5 GN625i-1205 Outer Muffler Cover 1
12-6 GN625i-1206 Bolt, M6x12 3
12-7 GN625i-1207 Muffler Bracket 1
12-8 GN400i-1104 Bolt, M8x16 2
ASSEMBLY 12 - MUFFLER ASSEMBLY
