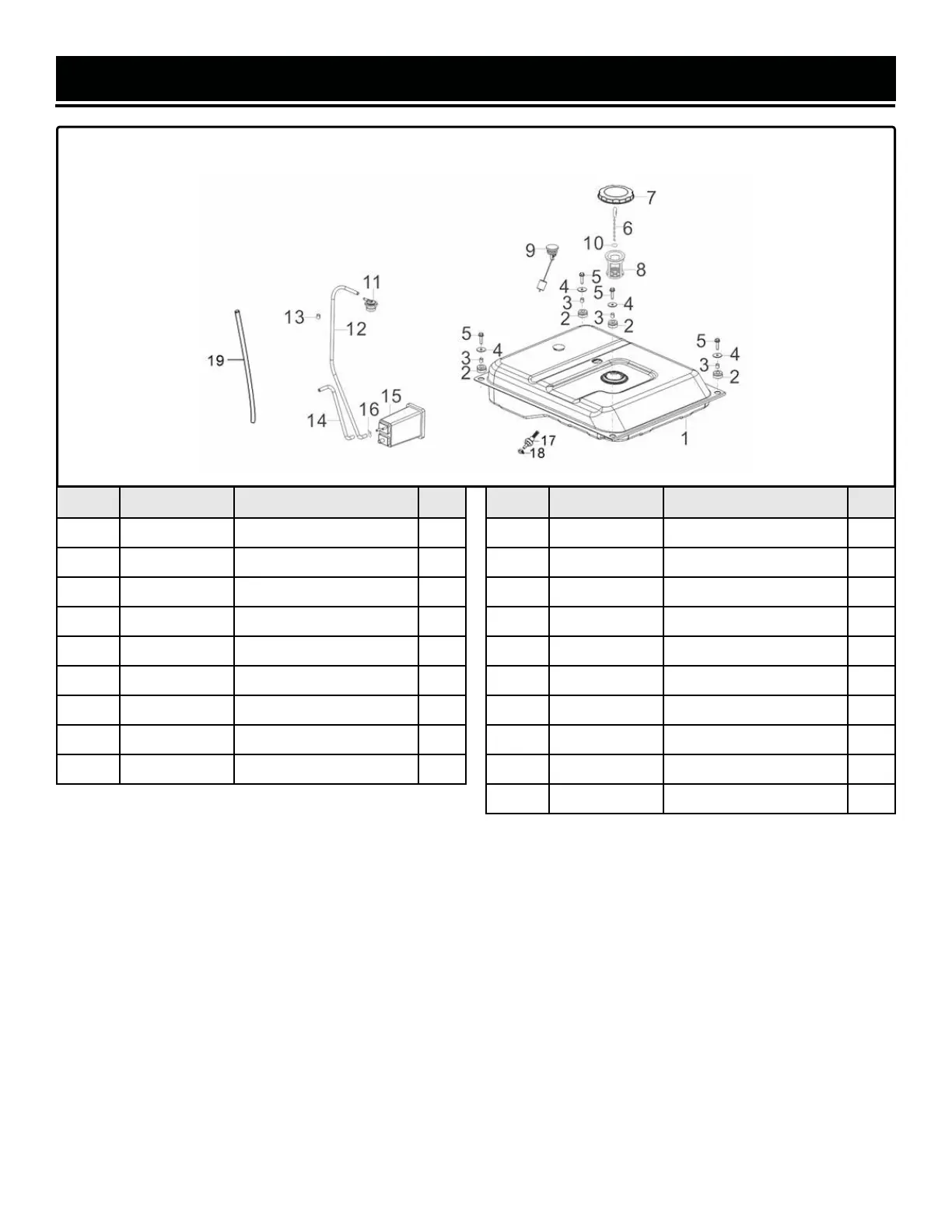

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
13-1 GN625i-1301 Fuel Tank 1
13-2 56380i-1207 Fuel Tank Damper 4
13-3 GN625i-1303 Bushing 4
13-4 GN625i-1304 Flat Washer, 6mm 4
13-5 GN625i-1305 Bolt, M6x25 4
13-6 GN400i-1214 Fuel Tank Cap Chain 1
13-7 GN400i-1202 Fuel Tank Cap 1
13-8 GN625i-1308 Fuel Strainer 1
13-9 GN400i-1204 Fuel Gauge Assembly 1
ASSEMBLY 13 - FUEL TANK
No. Part No. Description Qty.
13-10 GN625i-1310 Fuel Tank Chain Clip 1
13-11 GN400i-1205 Breather Valve 1
13-12 GN625i-1312 Breather Hose 1
13-13 GN400i-1316 Rubber Cover 1
13-14 GN625i-1314 Air Filter Hose 1
13-15 GN625i-1315 Carbon Tank 1
13-16 GN625i-1316 Hose Clamp A 1
13-17 GN625i-1317 Fuel Tank Outlet 1
13-18 GN625i-1318 Hose Clamp B 1
13-19 GN625i-1319 Rubber Cover 1
