Wen GN625i User Manual

39

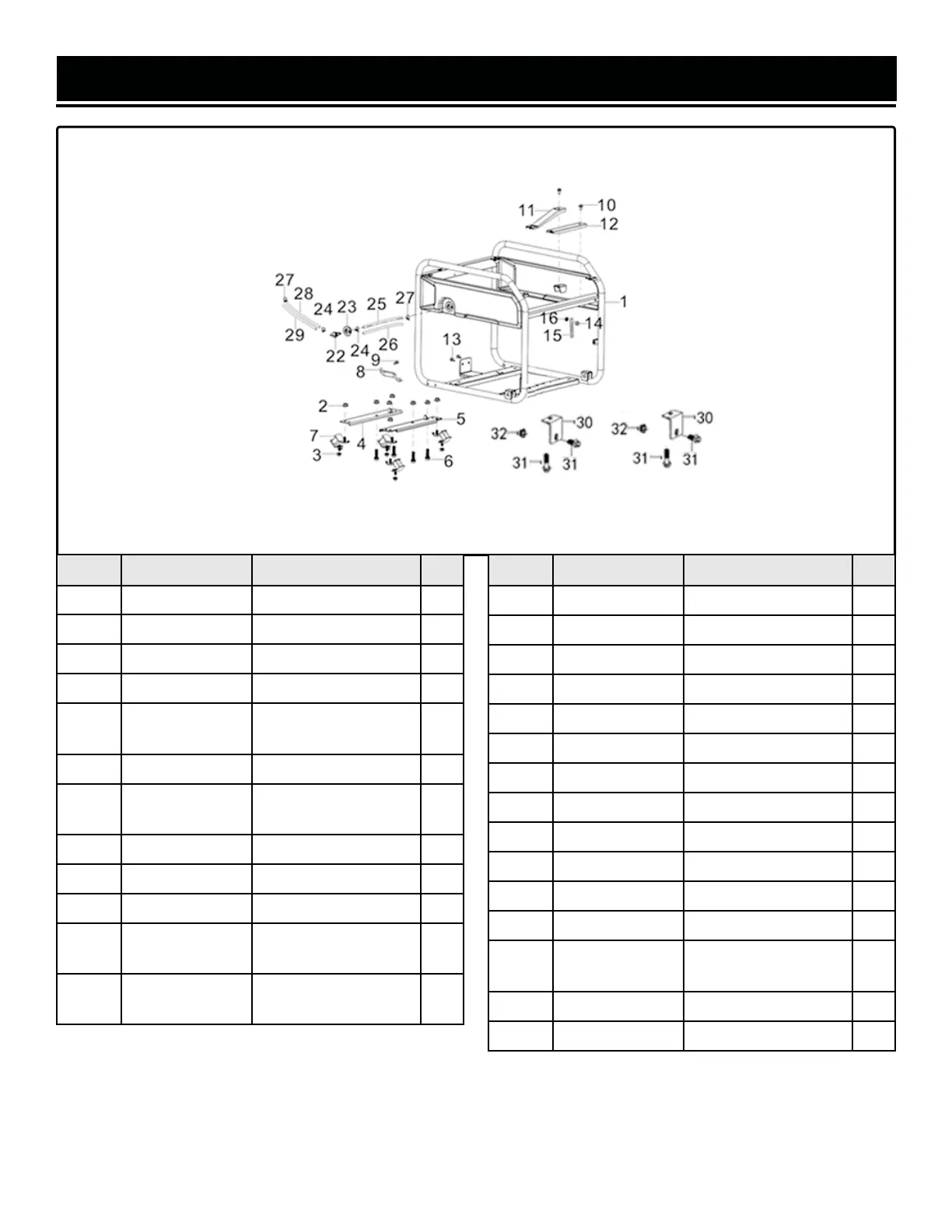

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1 GN625i-1401 Frame Assembly 1
14-2 GN625i-1402 Nut, M10-1.25 8
14-3 56310i-1404 Nut, M8 4
14-4 GN625i-1404 Engine Plate, Rear 1
14-5 GN625i-1405
Engine Plate,
Forward
1
14-6 GN625i-1406 Bolt, M10-1.25x40 4
14-7 GN625i-1407
Engine Frame
Damper
4
14-8 GN625i-1408 Air Filter Support 1
14-9 56200-1202 Bolt, M6x12 1
14-10 56200-1202 Bolt, M6x12 2
14-11 GN625i-1411
Inverter Support
Bracket A
1
14-12 GN625i-1412
Inverter Support
Bracket B
1
ASSEMBLY 14 - FRAME
No. Part No. Description Qty.
14-13 56200-0706 Bolt, M6x10 2
14-14 GN400i-1311 Bolt, M6x8 1
14-15 GN625i-1415 Cllp 1
14-16 GN400i-1313 Nut, M6 1
14-22 GN625i-1422 Fuel Valve 1
14-23 GN625i-1423 Fuel Valve Seat 1
14-24 GN625i-1424 Clamp A 2
14-25 GN625i-1425 Fuel Hose A 1
14-26 GN400i-1216 Rubber Jacket A 1
14-27 GN625i-1427 Clamp B 2
14-28 GN625i-1428 Fuel Hose B 1
14-29 GN625i-1429 Rubber Jacket B 1
14-30 GN625i-1430
Shipping Bracket
(Red)
2
14-31 GN400i-1104 Bolt, M8x16 4
14-32 GN625i-1432 Nut, M8 2
