Wen GN625i User Manual

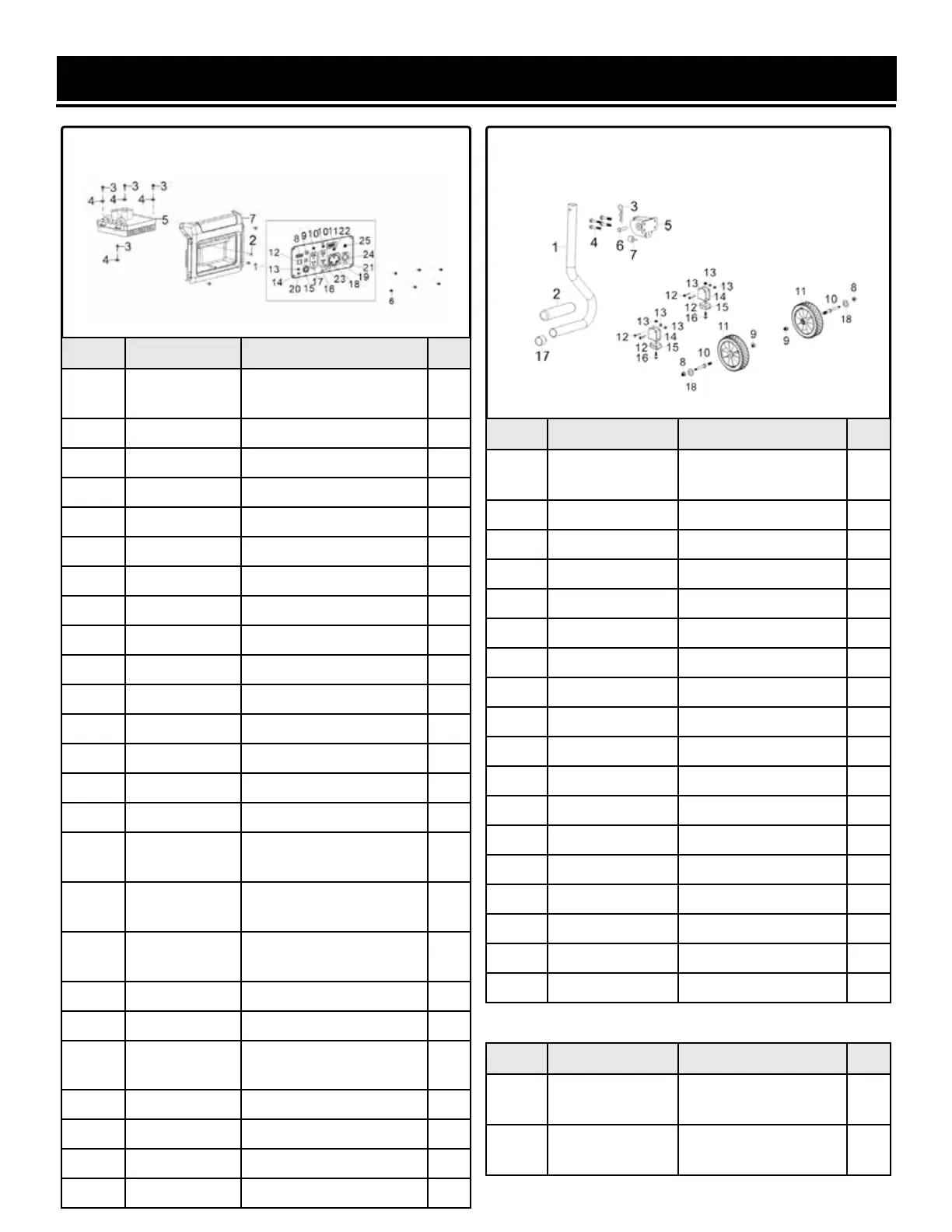

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
15-1 GN625i-1501
Control Panel
Subassembly
1
15-2 GN625i-1502 Bolt, M6x16 4
15-3 GN625i-1503 Bolt, M6x20 4
15-4 GN625i-1504 Flat Washer, 6mm 4
15-5 GN625i-1505 Inverter 1
15-6 GN625i-1506 Screw & Washer, M5x10 6
15-7 GN625i-1507 Panel Seat 1
15-8 GN400i-1406 Indicator Light Assembly 1
15-9 GN625i-1509 Choke Lever & Cable 1
15-10 GN625i-1510 AC Breaker, 20A 2
15-11 GN625i-1511 Data Meter 1
15-12 GN400i-1417 Power Switch 1
15-13 GN400i-1411 Reset Button 1
15-14 GN400i-1413 Grounding Nut 1
15-15 GN625i-1515 USB Outlet Assembly 1
15-16 GN625i-1516
NEMA 5-20R Outlet
Cover
2
15-17 56380i-1421
NEMA 5-20R Duplex
Outlet
2
15-18 GN625i-1518
NEMA TT-30R Outlet
Cover
1
15-19 GN400i-1418B NEMA TT-30R RV Outlet 1
15-20 56380i-1422 Eco-Mode Switch 1
15-21 GN625i-1521
NEMA L14-30R Outlet
Cover
1
15-22 GN625i-1522 AC Breaker, 24A 2
15-23 GN400i-1408 Rectifier Bridge 1
15-24 GN625i-1524 NEMA L14-30R Outlet 1
15-25 GN625i-1525 Voltage Selector Switch 1
ASSEMBLY 15 - CONTROL PANEL
No. Part No. Description Qty.
16-1 GN625i-1601
Handle Tube
Assembly
1
16-2 GN625i-1602 Handle Sleeve 1
16-3 GN625i-1603 R-clip 1
16-4 GN625i-1604 Bolt, M6x30 4
16-5 GN625i-1605 Handle Bracket 1
16-6 GN625i-1606 Handle Pin 1
16-7 GN625i-1607 Handle Damper 1
16-8 GN625i-1608 Nut, M8 2
16-9 GN625i-1609 Nut, M12-1.25 2
16-10 GN625i-1610 Axle 2
16-11 GN625i-1611 Wheel 2
16-12 GN625i-1612 Bolt, M6x40 4
16-13 56200-0506 Nut, M6 6
16-14 GN625i-1614 Foot Bracket 2
16-15 GN625i-1615 Foot Base 2
16-16 56310I-1420 Bolt, M6x25 2
16-17 GN625i-1617 Handle Tube Plug 1
16-18 GN625i-1618 Flat Washer, 8mm 2
ASSEMBLY 16 - WHEEL AND HANDLE
ACCESSORIES (NOT PICTURED)
No. Part No. Description Qty.
N.P. GN625i-HA36
High-Altitude Kit,
3000 - 6000 ft
1
N.P. GN625i-HA68
High-Altitude Kit,
6000 - 8000 ft
1
40
