ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until
it is fully assembled according to the instructions. Read
through and become familiarized with the following pro-
cedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious per-
sonal injury.

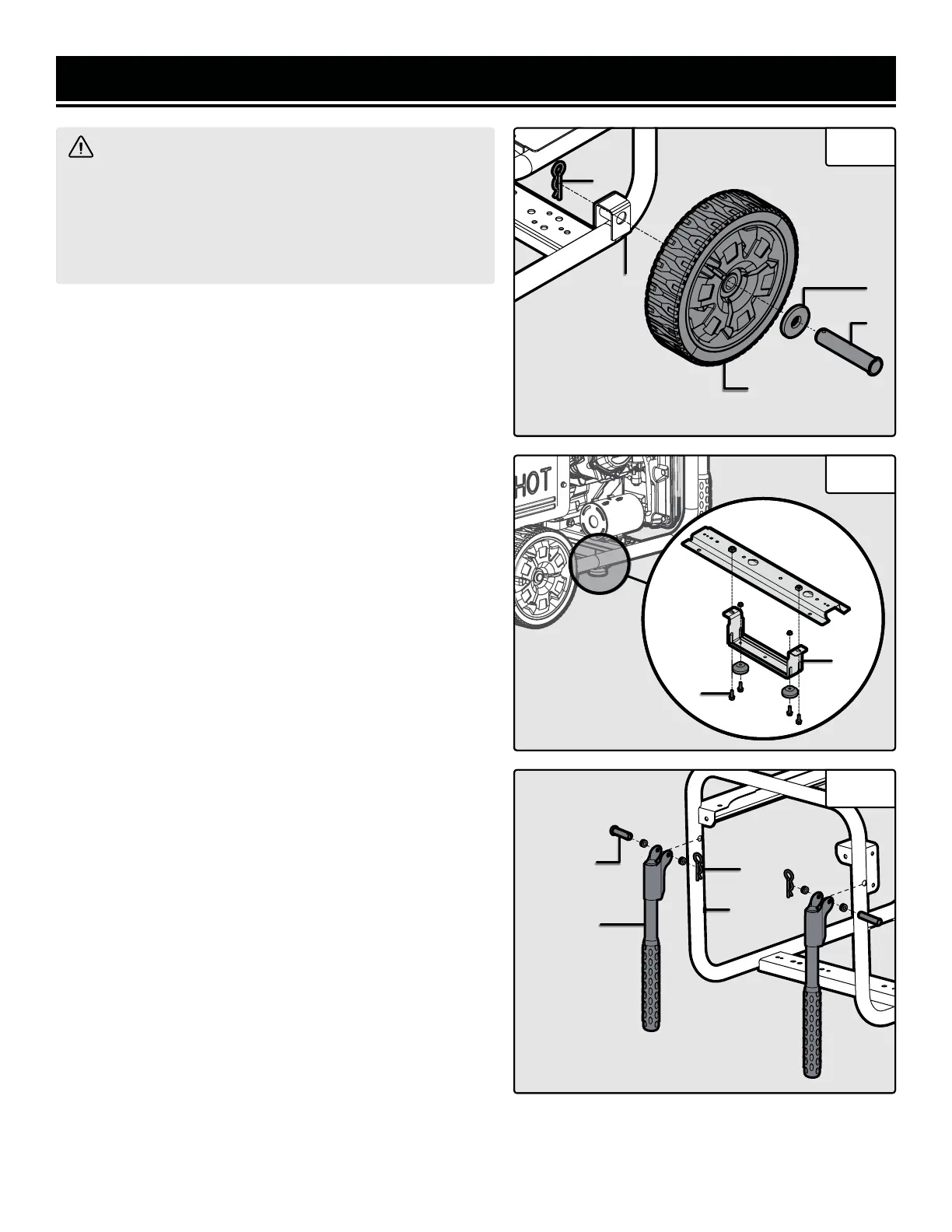

INSTALLING THE WHEELS
1. Prepare a set of blocks on level ground (a 4×4 block of
wood works well). Place the generator on the blocks.
2. Place the wheel axle pin (Fig. 1 - 1) and washer (Fig.
1 - 2) through the wheel (Fig. 1 - 3) and mounting lug hole
(Fig. 1 - 4). Secure it with the R-clip (Fig. 1 - 5).
INSTALLING THE SUPPORT BRACKET
1. Line up the support bracket with the corresponding
holes on the bottom of the generator.
2. Secure the support bracket (Fig. 2 - 1) to the generator
using two M8x16 bolts (Fig. 2 - 2).
INSTALLING THE HANDLES
1. Place the handle pin (Fig. 3 - 1) through the handle (Fig.
3 - 2) and the generator frame (Fig. 3 - 3). Secure it with the
R-clip (Fig. 3 - 4).
After completing the above assembly,
the generator is ready for preparation.
1
3
4
5
1
2
1
2
3
4
Fig. 1
Fig. 2
Fig. 3
12
2
