13
TROUPER RISER PLATFORM SYSTEMS

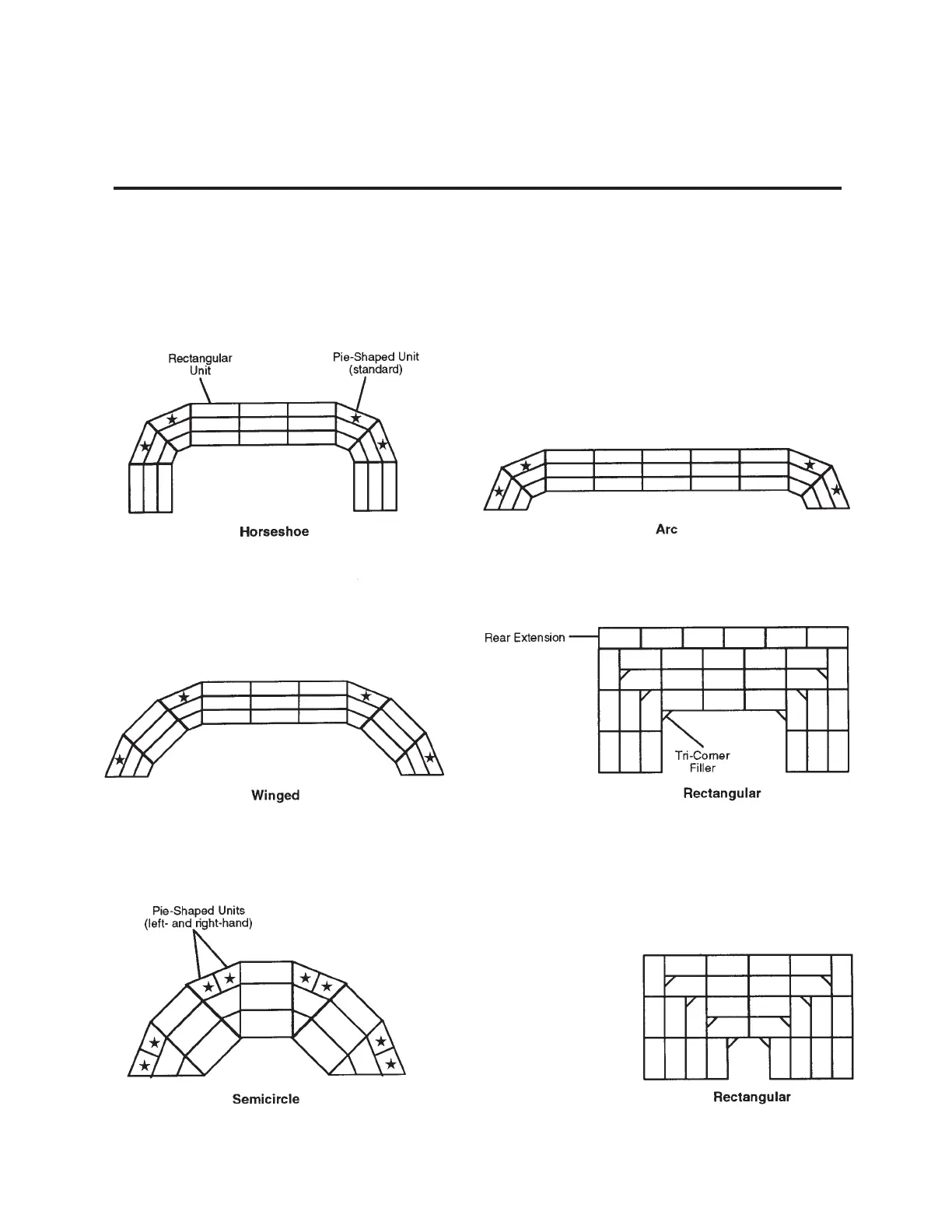

TYPICAL RISER LAYOUTS
Use rectangular and pie-shaped units as shown.
At the third elevation of pie-shaped locations:
-Choral risers have a single unit
-Band risers have two units, one left-hand and one right-hand. If a fourth elevation has been
supplied, both choral and band risers will have two units, one left-hand and one right-hand.
