INSTALLING THE STAIRWAY(S)
The 2-step and 3-step stairways supplied with
Stagehand Platform Systems can be adapted
to several platform system models and
heights.

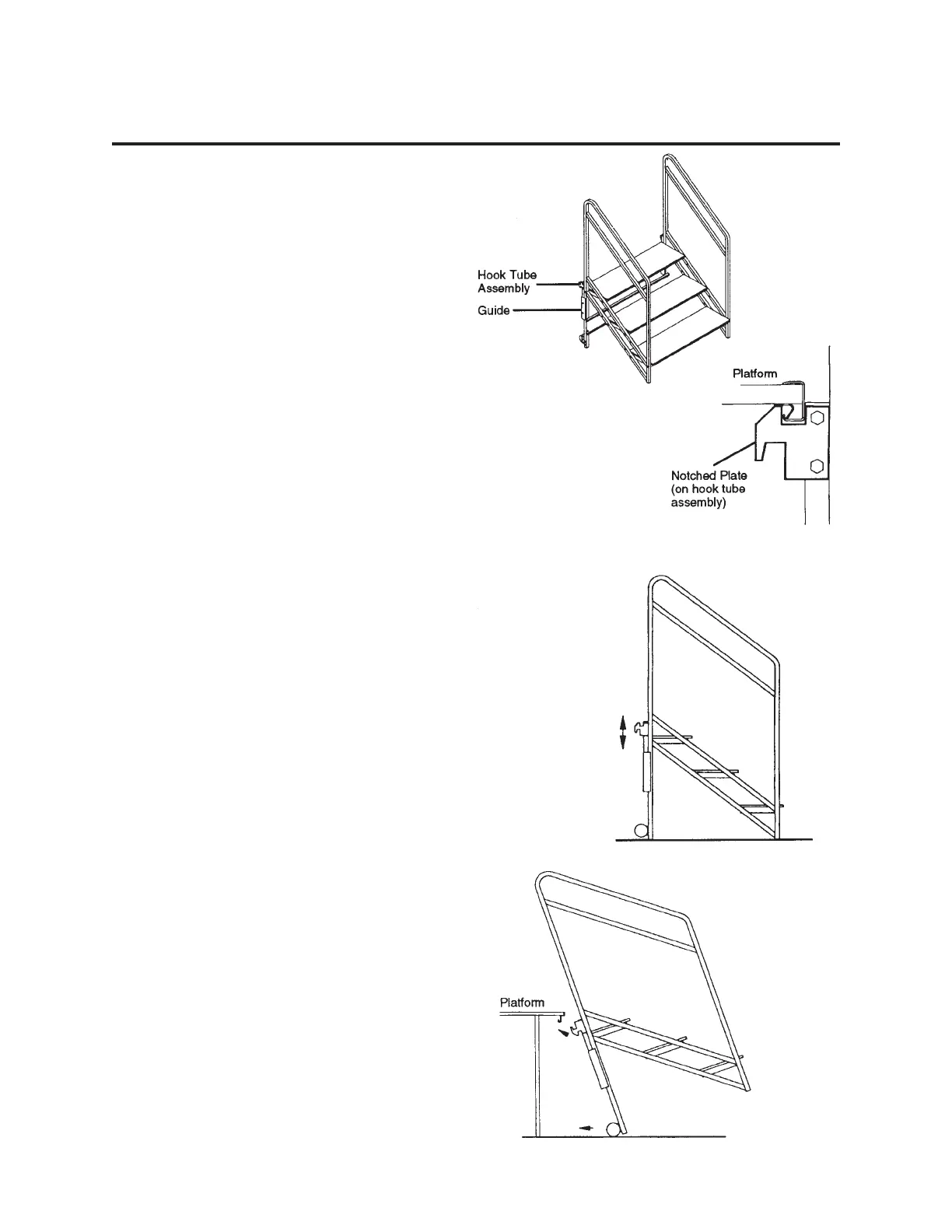

The hook tube assemblies that slip into guides
on each side of the stairway frame have a
notched plate which can be reversed to match
the framework on the bottom of the platform
deck. Select the hook tube assemblies that
have the notched plate in the illustration, and
install them as shown.
Each stairway model can be adjusted for two
platform heights:
• The 2-step stairway can be adjusted for
16" or 24" platform heights
• The 3-step stairway can be adjusted for
24" or 32" platform heights.
When the snap button on the hook tube
assembly is in the matching hole in the guide,
the stairway can be connected to the higher
platform. When the hook tube assembly is all
the way down in the guide, the stairway can
be connected to the lower platform.
The notched plates must be on the outside of
the tubes, extending forward from the stairway
frame.
To attach the stairway:
1. Be sure that the stairway has the correct
hook tube assemblies (see above).
2. Adjust the hook tube assemblies to the
proper height for the stage (see above).
3. Tip the stairway into place.
4. Check that the notch in the hook tube is
secured to the stage framework, and that
the stairway feet are flat on the floor.
5. Tuck the top edge of drapery enclosures
under the lip of the stage at stairway
locations.
