CONNECTING RISER SECTIONS
1. Set up the back row of platforms (including
any rear extensions), to verify that there is
enough space for the full riser set. Do not
lock these units together until the
remaining units are positioned.

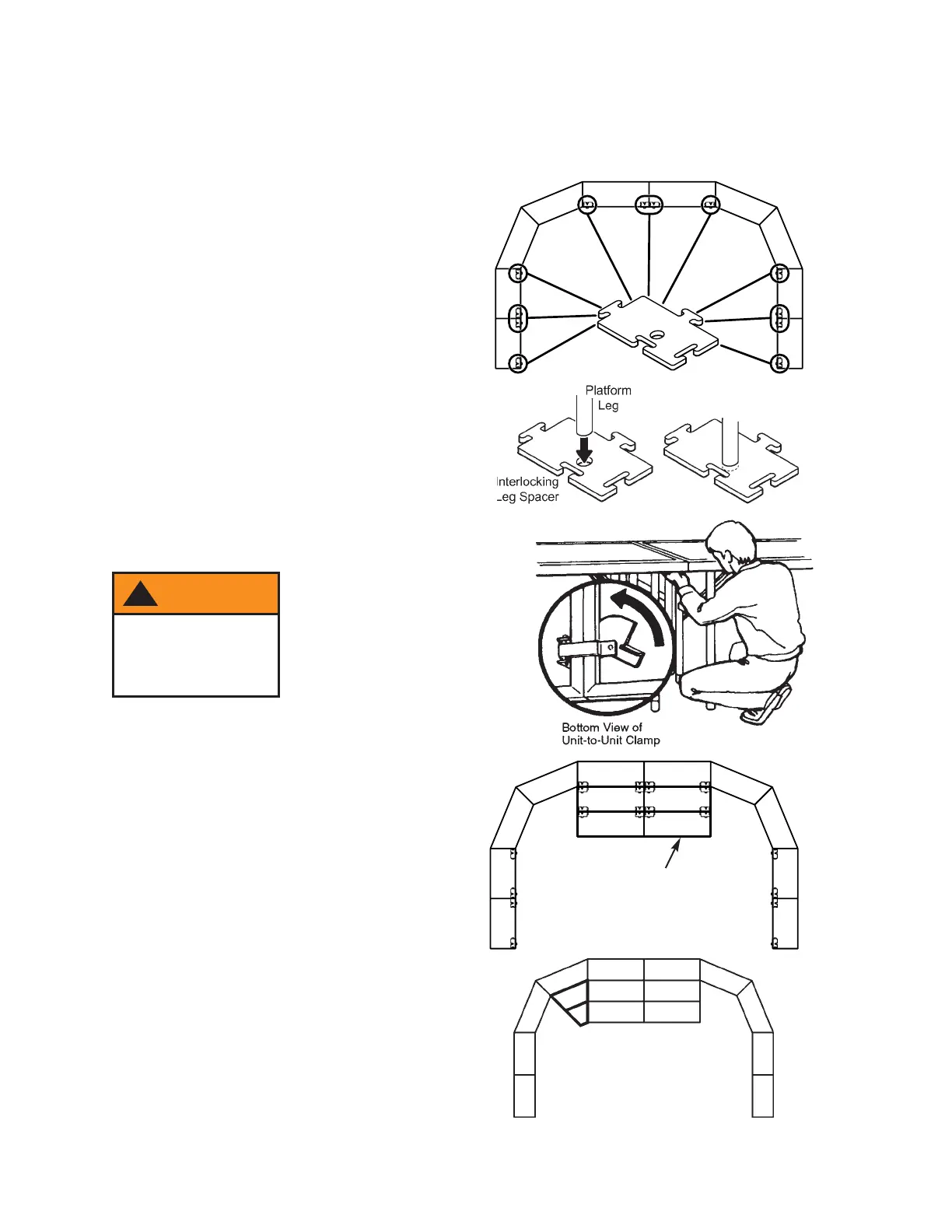

2. Place interlocking leg spacers on the floor
under the inside legs of the rectangular
units as shown in the illustration. Platform
legs fit into the hole in the center of the
spacer.
Note: Interlocking leg spacers are used
only to connect rectangular platform units
together. Use metal spacer assemblies to
connect pie-shaped platform units together
as decribed on the following page.
3. Attach adjoining units together in at least
two places, using the unit-to-unit clamps
beneath the platform surface.
4. Position the remaining units for the center
section — first the middle elevation (16"),
then the front (8"). Repeat the pattern for
the interlocking leg spacers on the
rectangular units.
5. Assemble the next section (pie-shaped
units) to the left of the completed section,
again starting with the highest elevation
and working down to the lowest elevation.
!
WARNING
Platforms are
unsafe if unit-to-
unit clamps are not
used as specified.
Position the remaining
center units next
To Next Page
