INSTALLING CLOSURE PANELS
There are two styles of closure panels:
• Those that go between the different levels
of units (elevation closures). They have
positioning brackets along the top edge.
• Those that touch the floor (along the front
of the bottom row, and the side closure
panels). They have clips along the top
edge to snap the closure onto the unit.

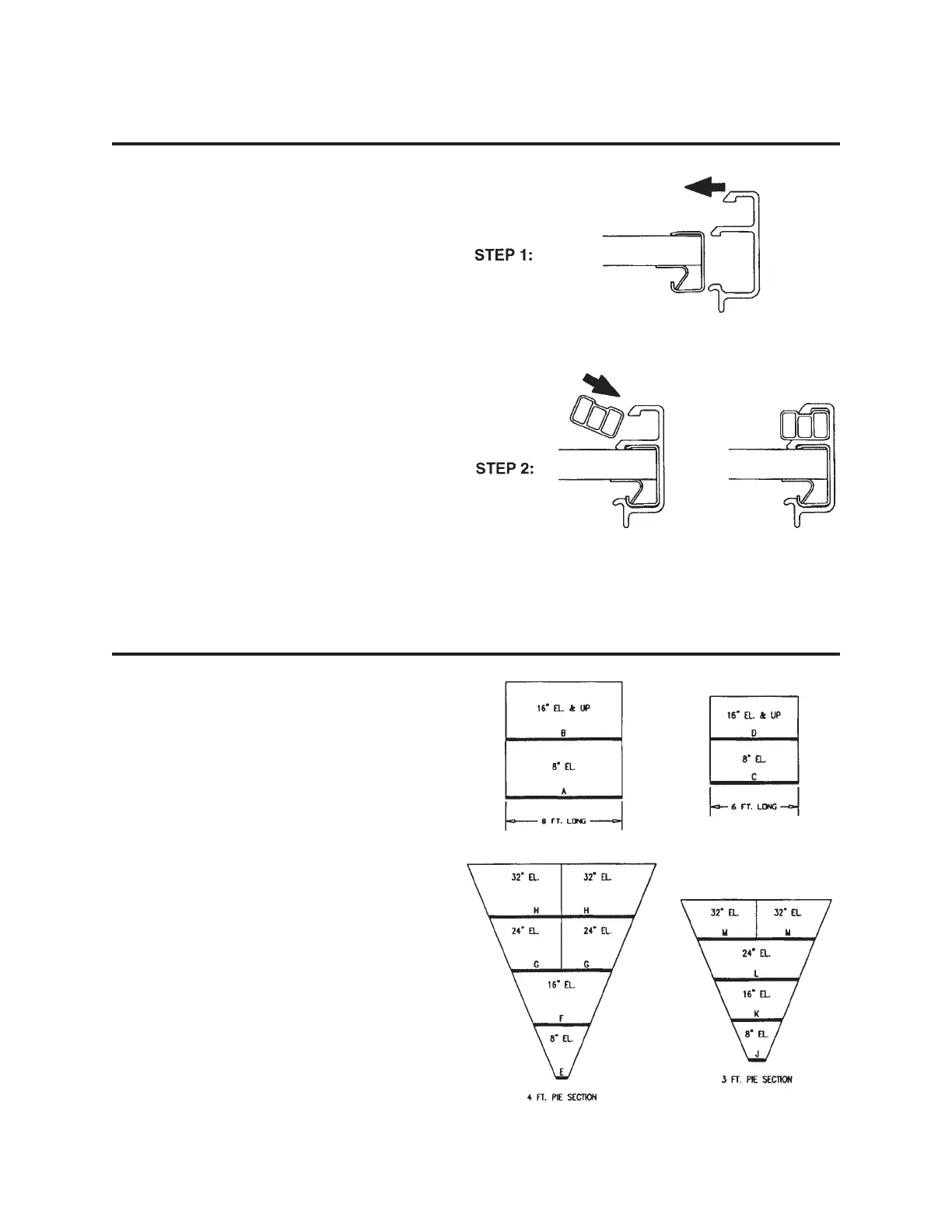

To simplify installation, the closures are
labeled (on the back side) by a letter that
indicates their length and position. See the
illustration.
Note: On some rectangular riser sets, there
may also be various odd-length closure
panels that are not labeled.
It is suggested that you install any 8' and 6'
closures first. This will make it easier to
identify where the smaller closures mount.
INSTALLING CHAIR STOPS
The riser was shipped with enough chair stops
to span the back of all elevations on the risers,
plus the sides of end units that are 16" or
higher.
Chair stops cannot be installed where closure
panels or guard rails are used.
Any excess chair stop may be discarded.
To install chair stops:
1. Snap chair stop clips onto every unit,
where appropriate, at approximately 24"
intervals.
Note: Side closures must be installed after
the clips, but before the chair stops are
installed. See “Installing Closure Panels”
above.
2. Install the chair stops into the clips, with the
grooved side up.
