INSTALLING CLOSURE PANELS (CONTINUED)

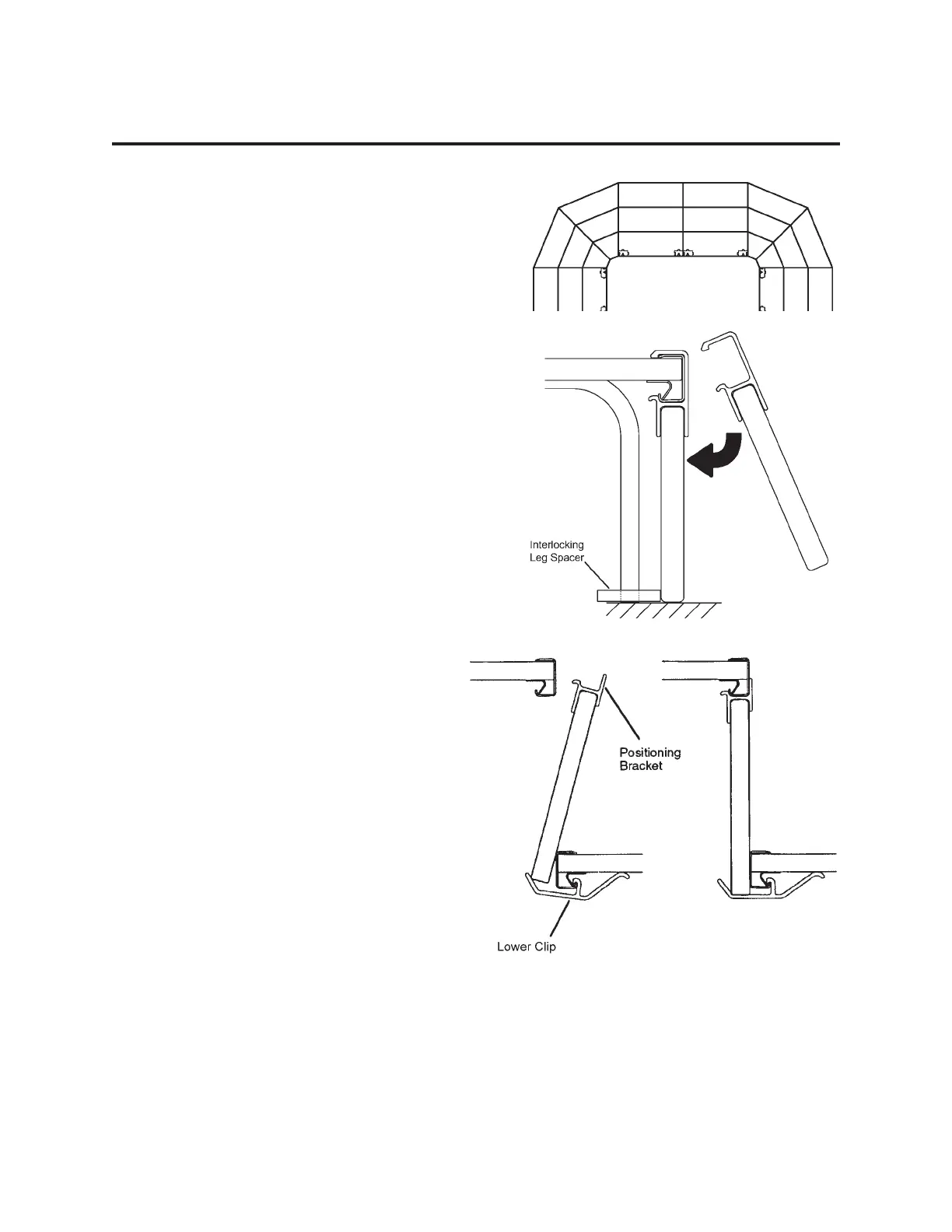

FRONT FLOOR-LEVEL CLOSURES
1. Interlocking leg spacers must be installed
on the front row of platform legs to provide
a backstop for the front floor closure panels.
2. Snap the panels onto the riser unit. Inside
edge should be flush with interlocking leg
spacer for support.
ELEVATION CLOSURES
Install the panels from the middle of the riser
set, and then work your way toward the ends.
This will even out any gaps between the
elevation closures and the side closure panels.
1. Hook the lower clips onto the lower
elevation units at the same intervals as the
positioning brackets that came installed on
the closure panel.
2. Set the closure panel onto the clips, then
push the closure panel down and rotate it
until the positioning brackets catch the
upper elevation unit.
S
IDE CLOSURES
Snap the panels onto the sides of the riser set
(in the same way as the front floor-level
closures).
Note: Chair stop clips must be installed before
the side closures; chair stops must be installed
after the side closures. See “Installing Chair
Stops” on page 17.
