OPERATOR’S)MANUAL))
Page!15!)

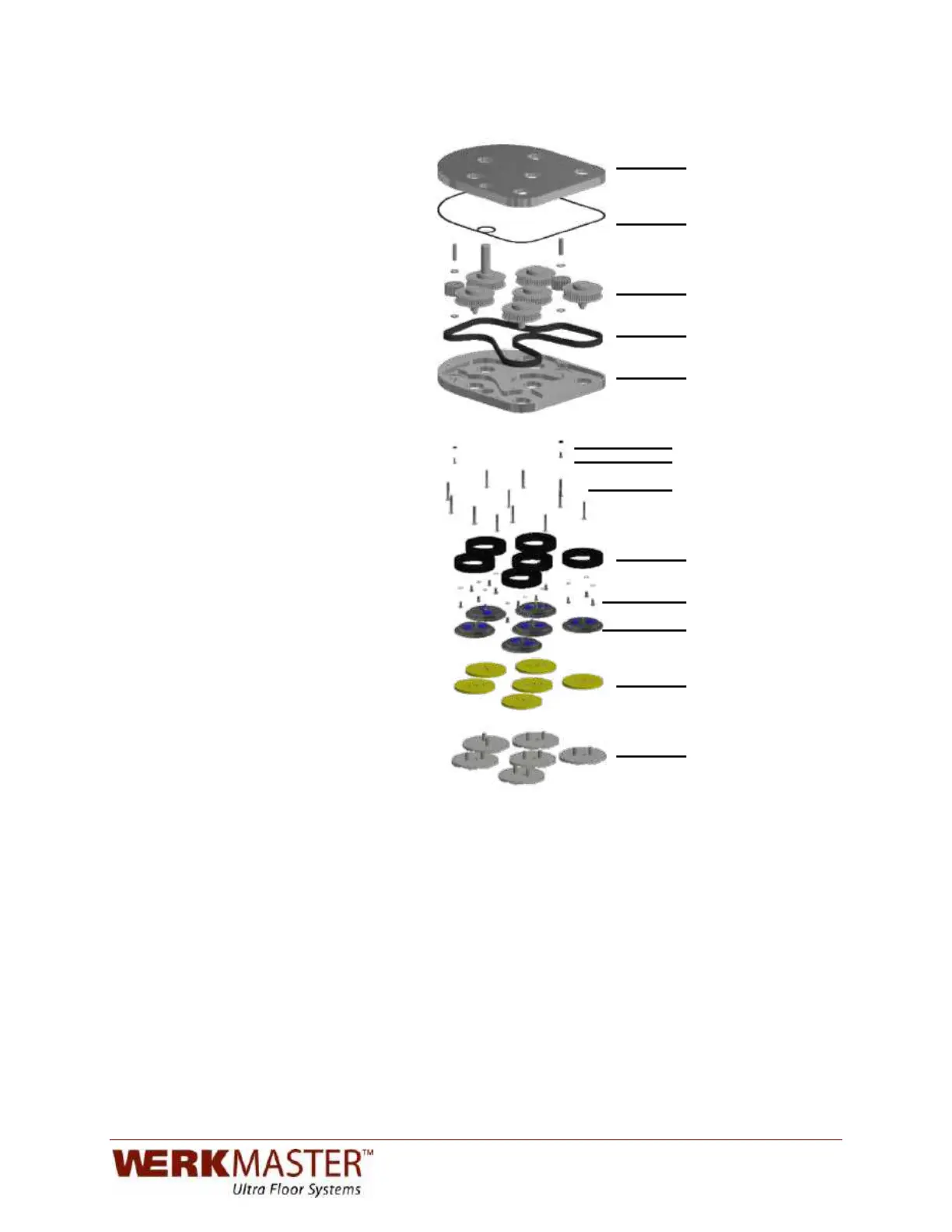

Drive Train Top Plate
Drive Train Gasket
Sprockets
Secondary Belt
Drive Train Bottom Plate
Sealing Washers
Hex Head Idler Bolts
M8 Flat Socket Cap Screws
Water Baffles
Baffle Screws
Pad Drivers
Compression Foam
Tooling Plates
Fig. 9
To change the secondary belt:
1. Disconnect power and ensure the handle is secure in the upright
position.
2. Tilt the machine back.
3. Remove the Plug ‘N Go plates and pad drivers.
4. Remove the water baffles.
5. Remove the two hex head idler bolts and the sealing washers.
6. Remove the twelve M8 flat socket cap screws from the drive train
bottom.
7. Insert six long M8 screws into the Water Baffle threaded hole that is
used as a jack point (Fig 7) until snug.
