WerkMaster Cobra - Exploded Views and Parts Lists; Drive Train Assembly Parts

OPERATOR’S)MANUAL))
Page!24!)

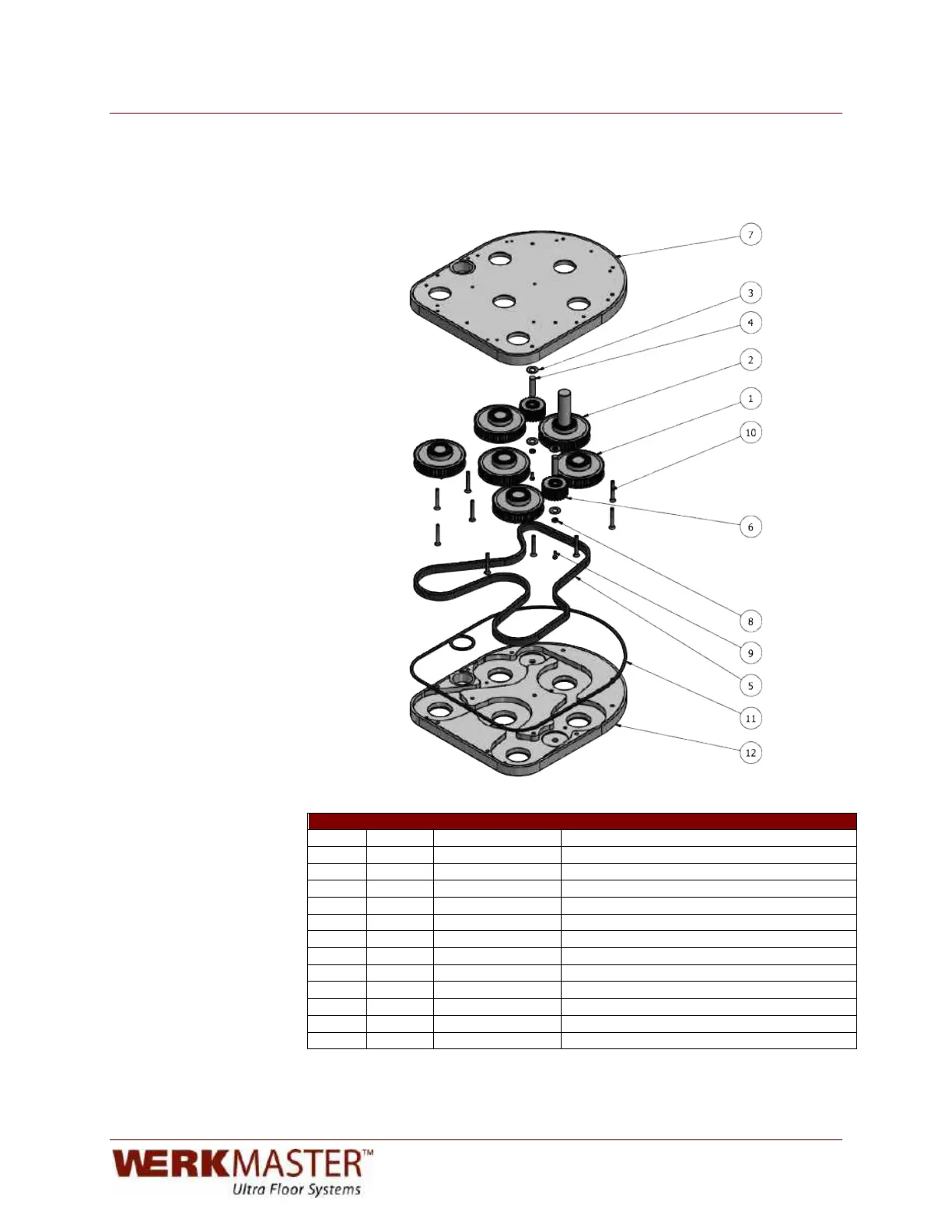

EXPLODED VIEW AND PARTS LIST – COBRA AND PYTHON
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
DRIVE TRAIN ASSEMBLY PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
5
110-0212-00
Sprocket Short Shaft Assembly
2
1
110-0213-00
Sprocket Long Shaft Assembly
3
4
590-0151-00
Flat Washer
4
2
580-0357-01
Pin
5
1
520-0011-00
Belt
6
2
110-0259-00
Idler Assembly
7
1
100-1414-00
Drive Train Upper Plate
8
2
590-0367-00
Washer
9
2
590-0246-00
Fastener
10
12
590-0338-00
Fastener
11
1
580-0444-00
Drive Train Gasket
12
1
100-1411-00
Drive Train Lower Plate
