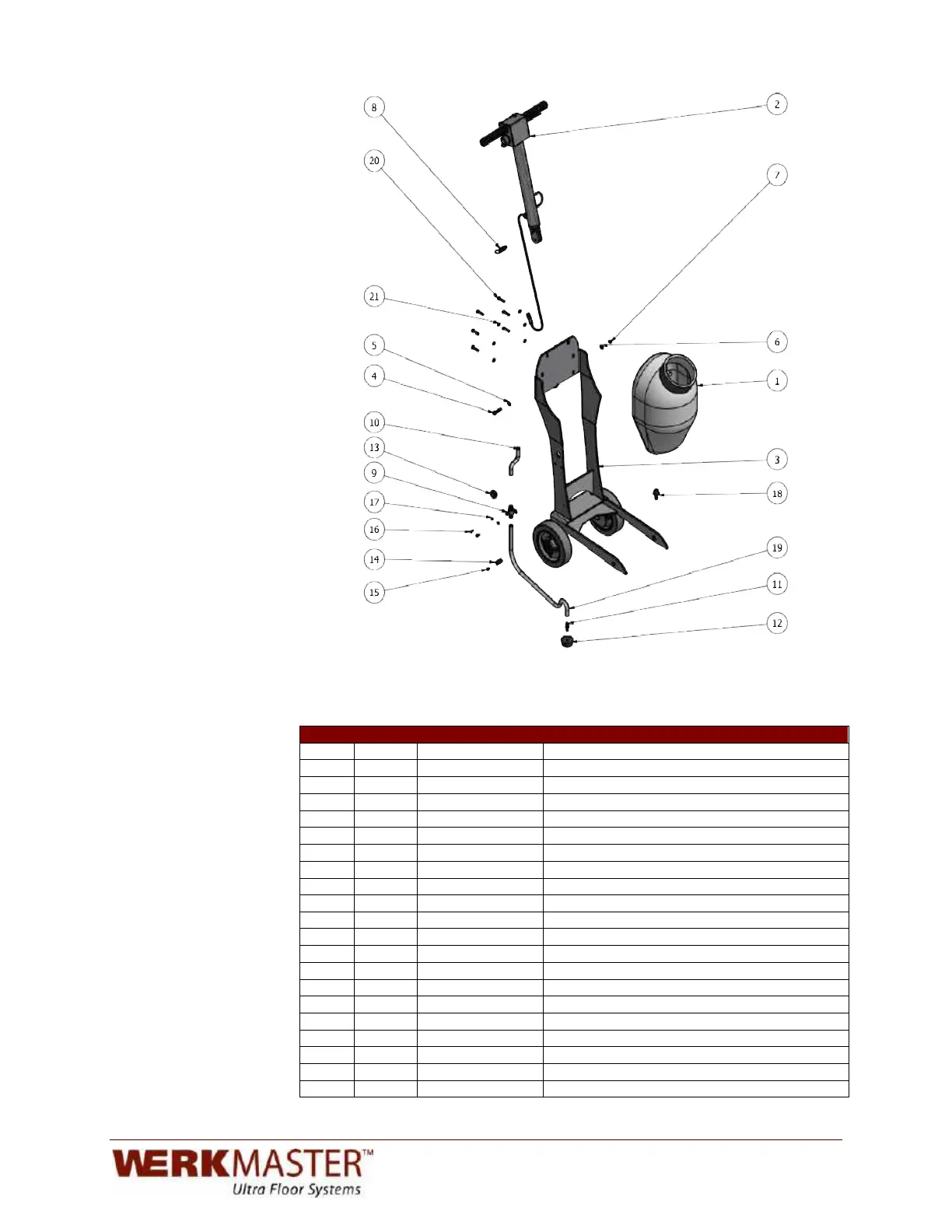

PYTHON WATER FEATURE HANDLE ASSEMBLY PARTS LIST
1
1
580-0437-00
Water Tank
2
1
130-0271-00
Complete Upper Handle Assembly
3
1
130-0274-00
Complete Lower Handle Assembly
4
1
590-0300-00
Shoulder Soc Screw
5
1
590-0149-00
Fastener
6
1
590-0148-00
Fastener
7
1
590-0196-00
Fastener
8
1
580-0362-00
Pull Pin
9
1
580-0399-00
Ball Valve
10
1
580-0439-00
Tubing
11
1
580-0438-00
Hose Mender
12
1
580-0236-00
Rubber Plug
13
1
540-0426-00
Grommet
14
1
540-0413-00
Cable Retainer
15
1
590-0278-00
Fastener
16
2
590-0114-00
Fastener
17
2
590-0140-00
Fastener
18
1
580-0422-00
Hose Barb
19
1
580-0466-00
Hose
20
6
590-0054-00
Fastener
21
6
590-0222-00
Lock Washer
