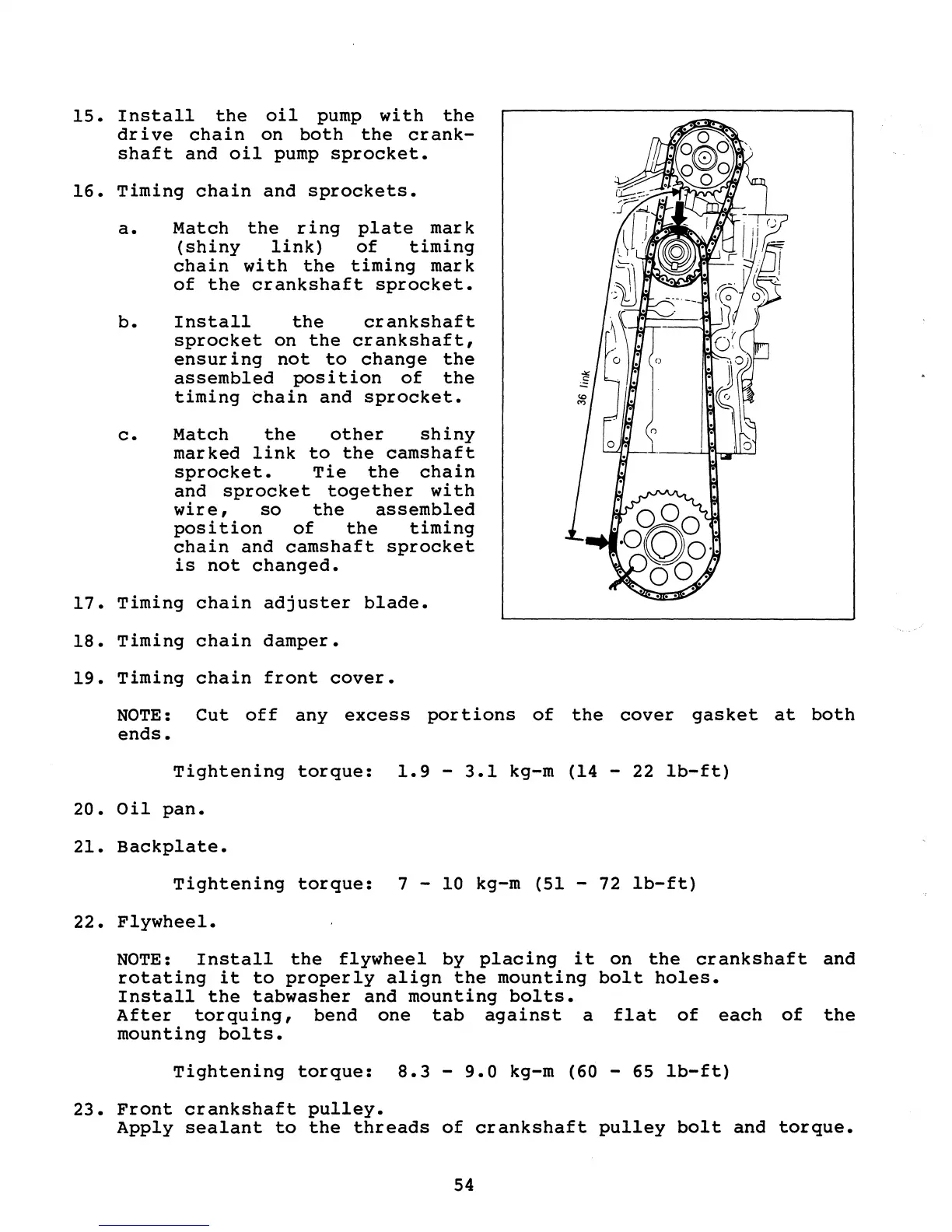

15. Install the oil pump with the
drive chain on both the crank-
shaft and oil pump sprocket.
16. Timing chain and sprockets.
a. Match the ring plate mark
(shiny link) of timing
chain with the timing mar k
of the crankshaft sprocket.
b. Install the crankshaft
sprocket on the crankshaft,
ensur ing not to change the
assembled position of the
timing chain and sprocket.
c. Match the other shiny
marked link to the camshaft
sprocket. Tie the chain
and sprocket together wi th
wire, so the assembled
position of the timing
chain and camshaft sprocket
is not changed.
17. Timing chain adjuster blade.
18. Timing chain damper.
19. Timing chain front cover.
20.
21.
22.
NOTE: Cut off any excess portions of the cover gasket at both
ends.
Tightening torque:
1.9 - 3.1 kg-m (14 - 22 Ib-ft)
Oil pan.
Backplate.
Tightening torque: 7 - 10 kg-m (51 - 72 Ib-ft)
Flywheel.
NOTE: Install the flywheel by placing it on the crankshaft and
rotating it to properly align the mounting bolt holes.
Install the tabwasher and mounting bolts.
After torquing, bend one tab against a flat of each of the
mounting bolts.
Tightening torque: 8.3 - 9.0 kg-m (60 - 65 Ib-ft)
23. Front crankshaft pulley.
Apply sealant to the threads of crankshaft pulley bolt and torque.
