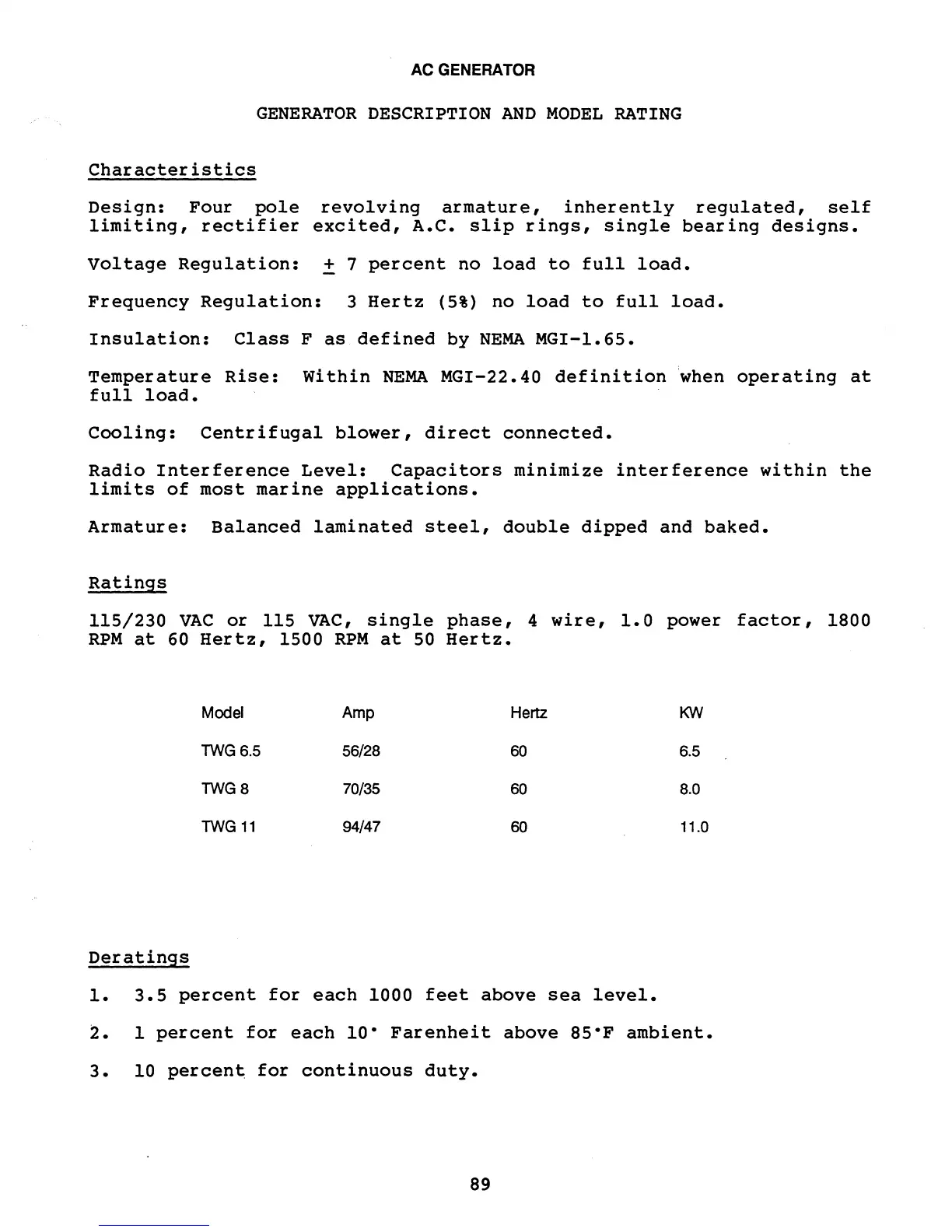

AC GENERATOR
GENERATOR DESCRIPTION AND MODEL RATING
Characteristics
Design: Four pole revolving armature, inherently regulated, self
limiting, rectifier excited, A.C. slip rings, single bearing designs.
voltage Regulation: + 7 percent no load to full load.
Frequency Regulation: 3 Hertz (5%) no load to full load.
Insulation: Class F as defined by NEMA MGI-l.6S.
Temperature Rise: Within NEMA MGI-22.40 definition when operating at
full load.
Cooling: Centrifugal blower, direct connected.
Radio Interference Level: Capacitors minimize interference within the
limits of most marine applications.
Armature: Balanced laminated steel, double dipped and baked.
Ratings
115/230 VAC or 115 VAC, single phase, 4 wire, 1.0 power factor, 1800
RPM at 60 Hertz, 1500 RPM at 50 Hertz.
Model Amp Hertz
KW
TWG6.5
56/28
60 6.5
TWG8
70/35 60 8.0
TWG 11 94/47
60
11.0
Deratings
1. 3.5 percent for each 1000 feet above sea level.
2. 1 percent for each 10· Farenheit above 8S·F ambient.
3. 10 percent for continuous duty.
