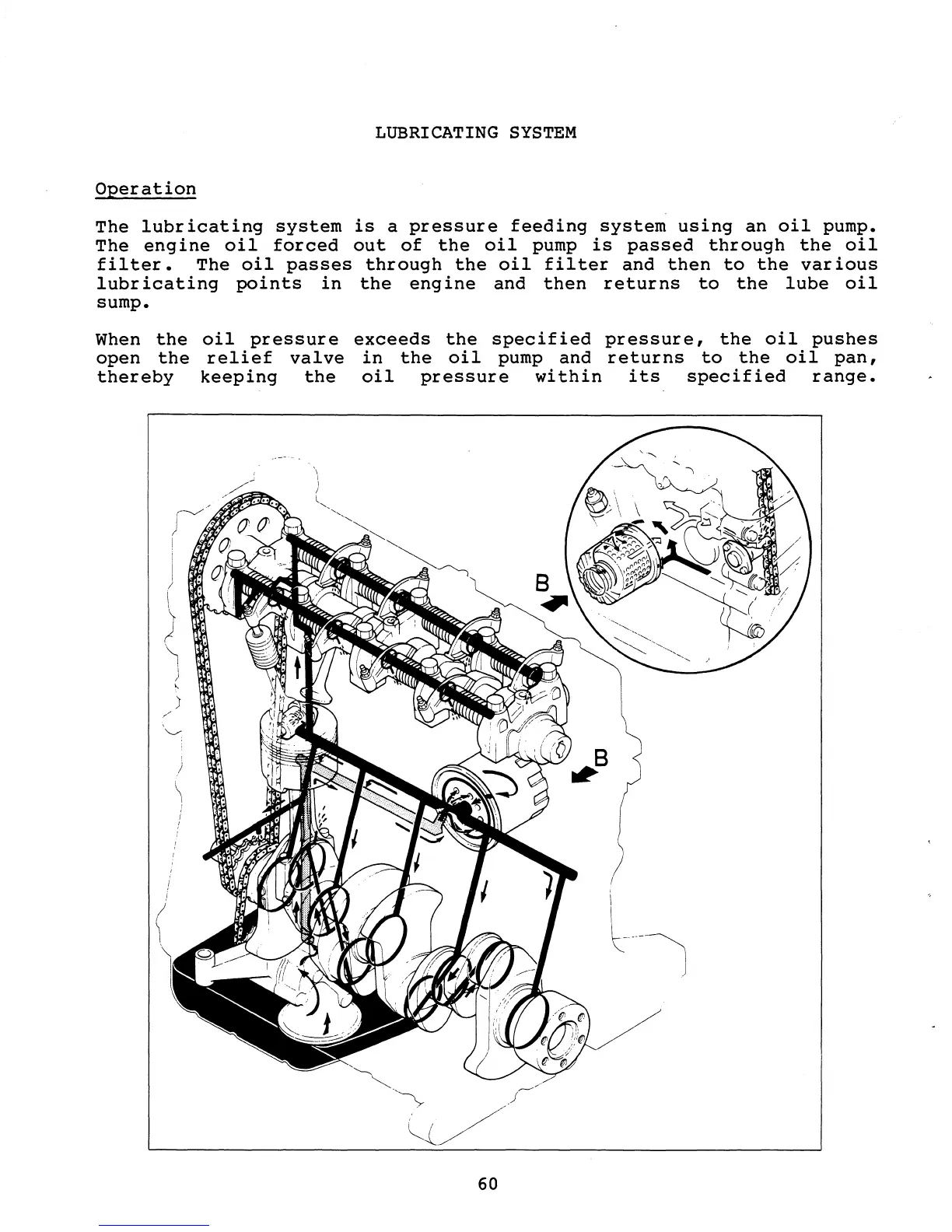

LUBRICATING SYSTEM
Operation
The lubricating system is a pressure feeding system using an oil pump.
The engine oil forced out of the oil pump is passed through the oil
filter. The oil passes through the oil filter and then to the various
lubricating points in the engine and then returns to the lube oil
sump.
When the oil pressure exceeds the specified pressure, the oil pushes
open the relief valve in the oil pump and returns to the oil pan,
thereby keeping the oil pressure within its specified range.
)
