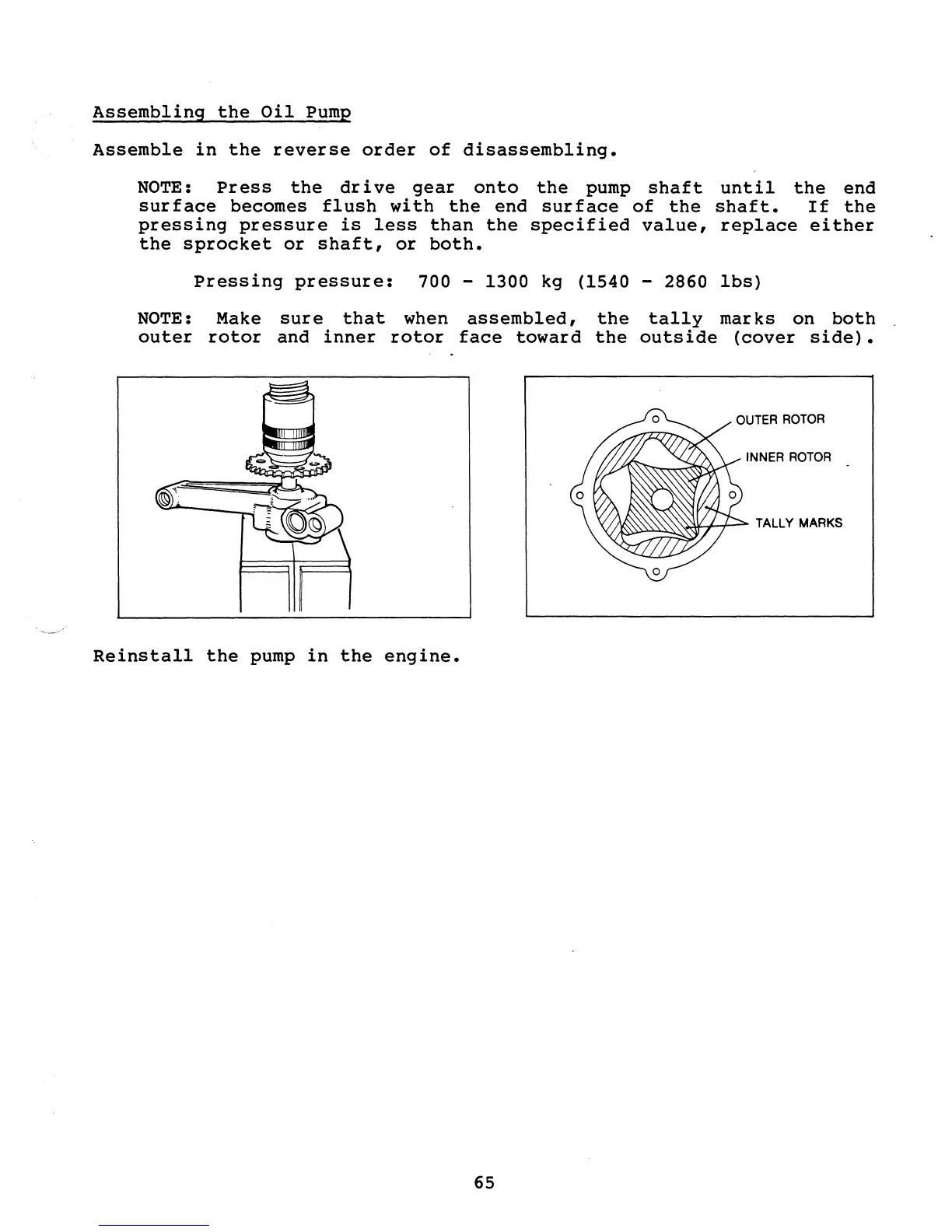

Assembling the Oil Pump
Assemble in the reverse order of disassembling.
NOTE: Press the dr i ve gear onto the pump shaft until the end
surface becomes flush with the end surface of the shaft. If the
pressing pressure is less than the specified value, replace either
the sprocket or shaft, or both.
Pressing pressure: 700 - 1300 kg (1540 - 2860 lbs)
NOTE: Make sure that when assembled, the tally marks on both
outer rotor and inner rotor face toward the outside (cover side).
OUTER ROTOR
INNER ROTOR
,~4-I~ TALLY MARKS
~~~/
Reinstall the pump in the engine.
65
