Westermo Lynx SERIES User Manual

External load
Status
V
V
Digital in
Lynx
+
-
+
-
3
4
1
2

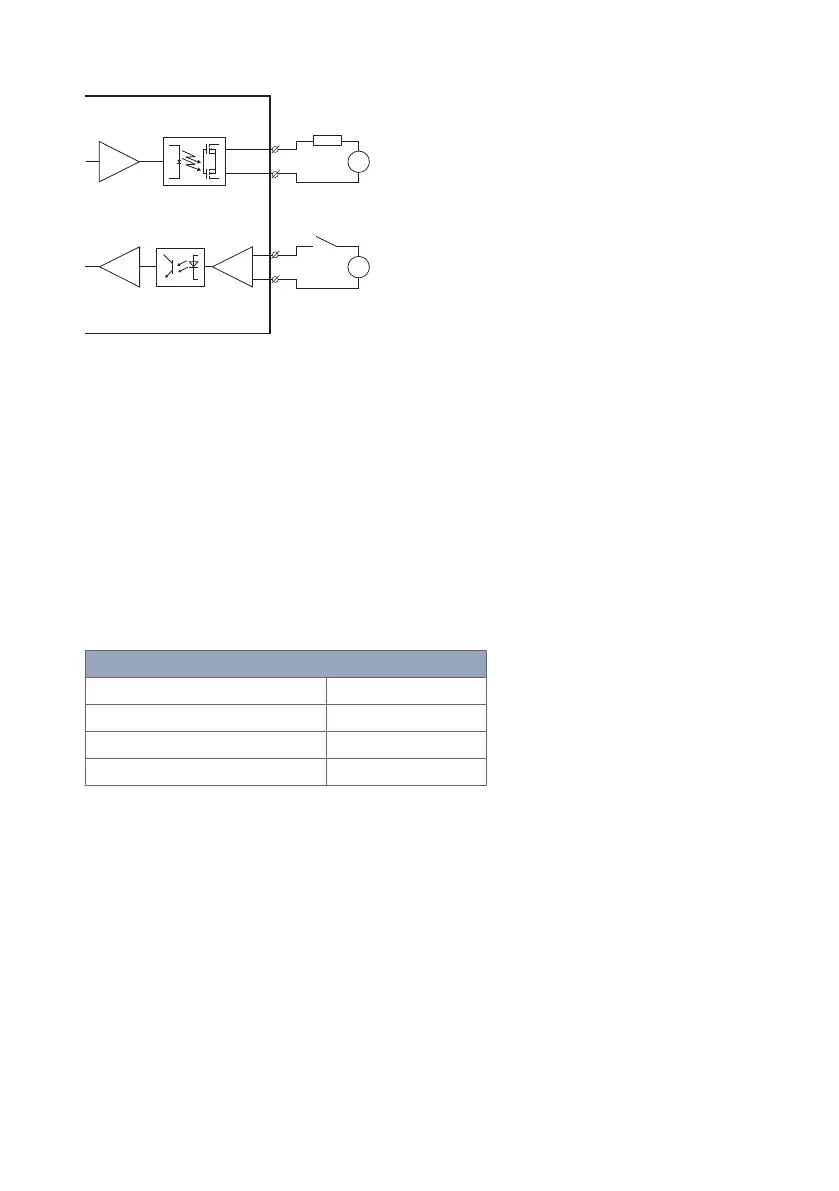

Figure 5. Digital in
3.4.4. Connection to the Console Port
The console port can be used to connect to the CLI (Command Line Interface).
1. Connect the serial diagnostic cable to the console port (use only Westermo cable
1211-2027).
2. Connect cable to your computer (USB port, if drivers are needed they can be
downloaded from the Westermo web).
3. Use a terminal emulator and connect with correct speed and format (115200, 8N1) to
the assigned port.
For more information about the CLI, see the WeOS Management guide.
Accessories
Description Art. no.
Westermo console cable 1211-2027
RJ45 to terminal block 1200-2490
RJ45 to DB9 cable 1211-2210
Table 9. Accessories table
Lynx L110-F2G & L210-F2G 15

Westermo Lynx SERIES Specifications

General

Model	Lynx SERIES
Management	Web interface, CLI, SNMP
Operating Temperature	-40°C to +70°C
Mounting	DIN-rail
Dimensions	Varies depending on model
Weight	Varies depending on model
Standards	IEEE 802.3
Category	Industrial Ethernet Switch
