UNDERSTANDING YOUR GENERATOR
See Figures 6 - 7.
To reduce the risk of injury and product failure, read and
understand the information in this user’s manual as well as
the information on the product labeling.
120 VOLT AC RECEPTACLES
This unit has a 120V, 30A RV receptacle and duplex 120V,
20A receptacles capable of powering a variety of appliances,
tools, and equipment.
CIRCUIT BREAKERS
The circuit breakers protect devices and equipment con-
nected to the receptacles from electrical overload.
CO SENSOR INDICATOR LIGHTS
The CO Sensor monitors for the accumulation of poisonous
carbon monoxide gas. If increasing levels of CO gas are de-
tected, the CO Sensor automatically shuts down the engine.
ECO MODE SWITCH
Eco mode minimizes fuel consumption and noise by ad-
justing the engine RPM to the minimum required for the
current load.
FUEL SELECTION SWITCH
Rotate the engine/fuel control switch to set the choke and
start or stop the ow of fuel.
ENGINE SERVICE PANEL
Turn the lock knob to unlock and remove cover to service
the oil, spark plug, and air lter.
FUEL TANK
The generator has a fuel tank with a capacity of 3.4gallons.
GROUND TERMINAL
The ground terminal is used to externally ground the
generator.
LED DATA CENTER
Displays remaining run time (F), power output inkW(P),
fuel level in liters (L), voltage output (V), and lifetime hours.
LOW OIL LED
Indicates low oil level. When the oil level in the crankcase
falls below the safe operating limit, the low oil level indicator
will illuminate and the generator will automatically shut off
the engine.

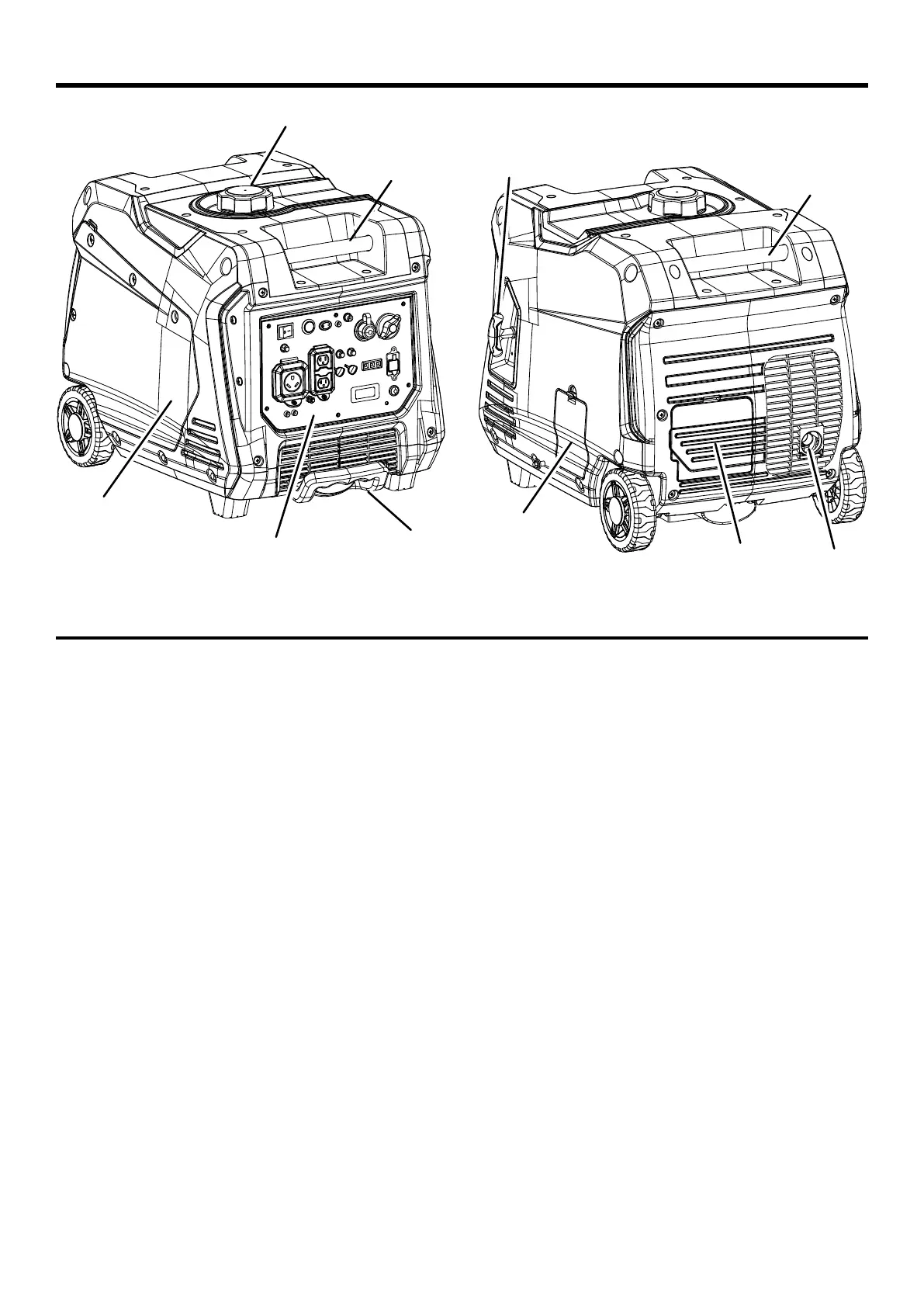

FIG. 6
A - Fuel cap
B - Engine service cover
C - Extendable handle
D - Carry handles
E - Recoil handle
F - Control panel
G - Oil access cover
H - Battery access cover
I - Muffler/spark arrestor
COMPONENTS
E
C
D
B
A
G
F
H
D
I
