WARNING
Never mount the Kevlar Strap so that it blocks,
or is in direct line of, the exhaust. The Kevlar will not burn or snap but
blocking the exhaust can damage the inverter generator.
l. Once the Angle Braces are in the desired location, open and close the
ratchet handle 1 or 2 times to begin tightening the system (Fig. 1.14).
Do not over tighten the system so tight that you cannot make any
adjustments to the placement of the Angle Braces.
m. Make nal adjustments to the Angle Braces location to ensure they are
on the corners of the case, at the bottom of the electrical panel and not
blocking the exhaust.
n. Finish by tightening the
Kevlar
®
ratchet strap
1-2 times until the strap
is tight enough to make
a light “thrum” when the
strap is plucked (much
like a guitar string). Make
sure to not over tighten
the strap as it can warp
or crack your case.
NOTE: To loosen the ratch-
et: Pinch the release lever
towards the ratchet handle
(Fig. 1.15) and open the
ratchet handle all the way
and pull the open handle
causing the strap to unwind.

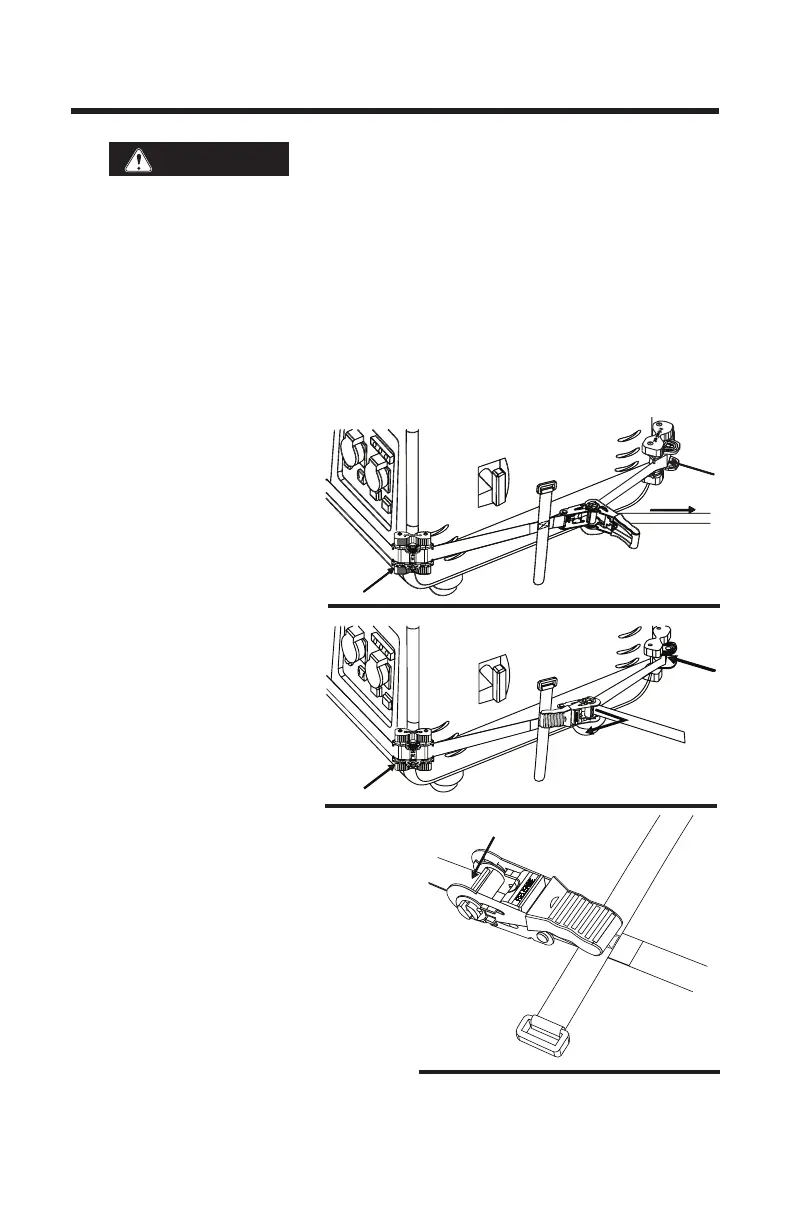

Fig. 1.13
Fig. 1.14
Fig. 1.15
ASSEMBLY
To Next Page
