TERMINALS
12
English

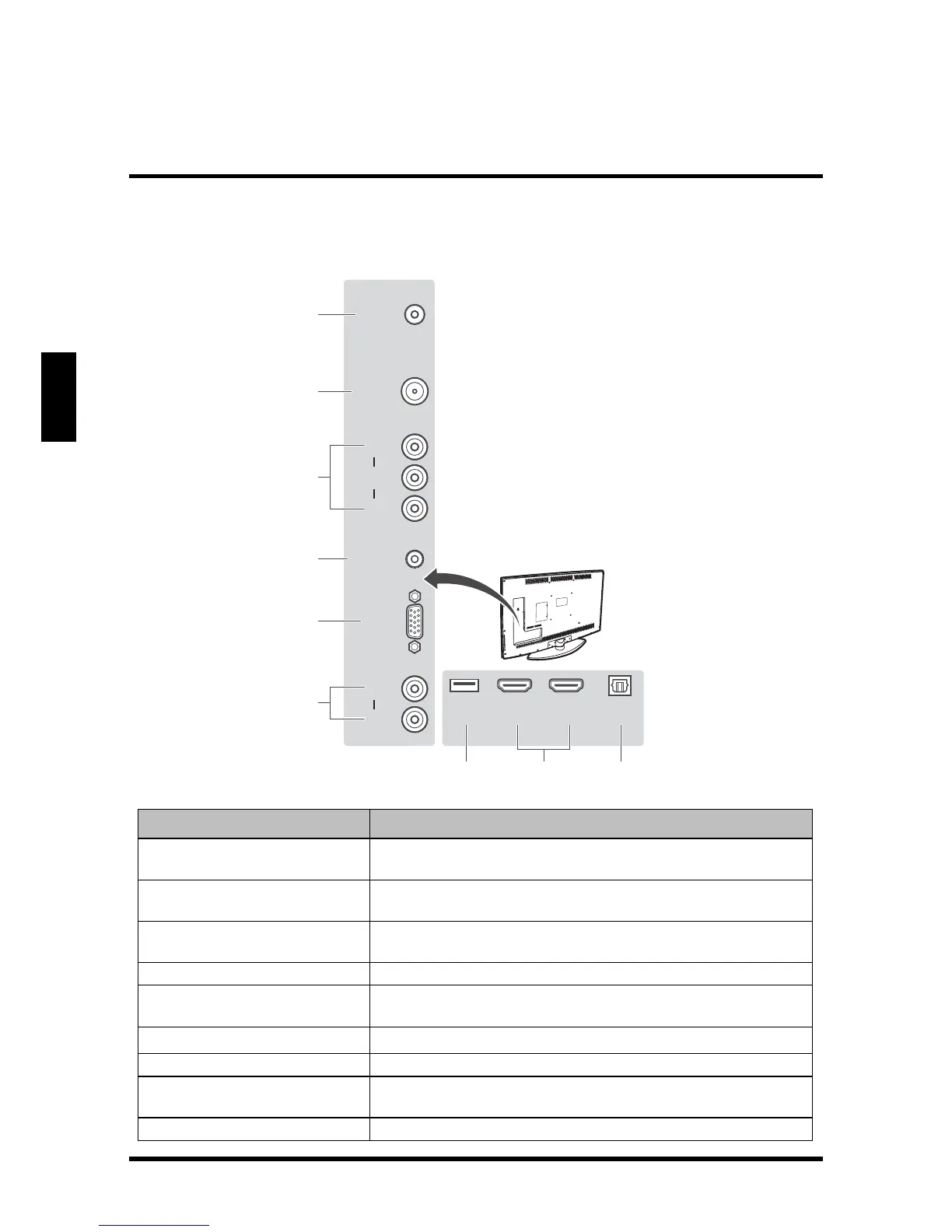

TERMINALS
Item Function
1. DC in
Connects the AC to DC adapter from this outlet to
a power source.
2. TV tuner
Connects the LED TV to an antenna or cable
service.
3. Composite AV input
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
4. Audio in Connects to the audio out port of a computer.
5. VGA
Connects to a computer or other device with a
VGA output using a 15-pin VGA cable.
6. Audio out
Connect to an analog audio output device.
7. USB Service port For service only.
8. HDMI 1/2
Connects to an external AV device such as a
VCR, DVD player, set-top box, or game system.
9. SPDIF audio out Connects to an external digital audio receiver.
VGA
Y
L
R
AUDIO IN
TUNER
DC IN
SPDIFHDMI 1HDMI 2USB
L
R
1
2
3
4
5
6
789
To Next Page
