EXTERNAL DEVICE CONNECTIONS
19
English

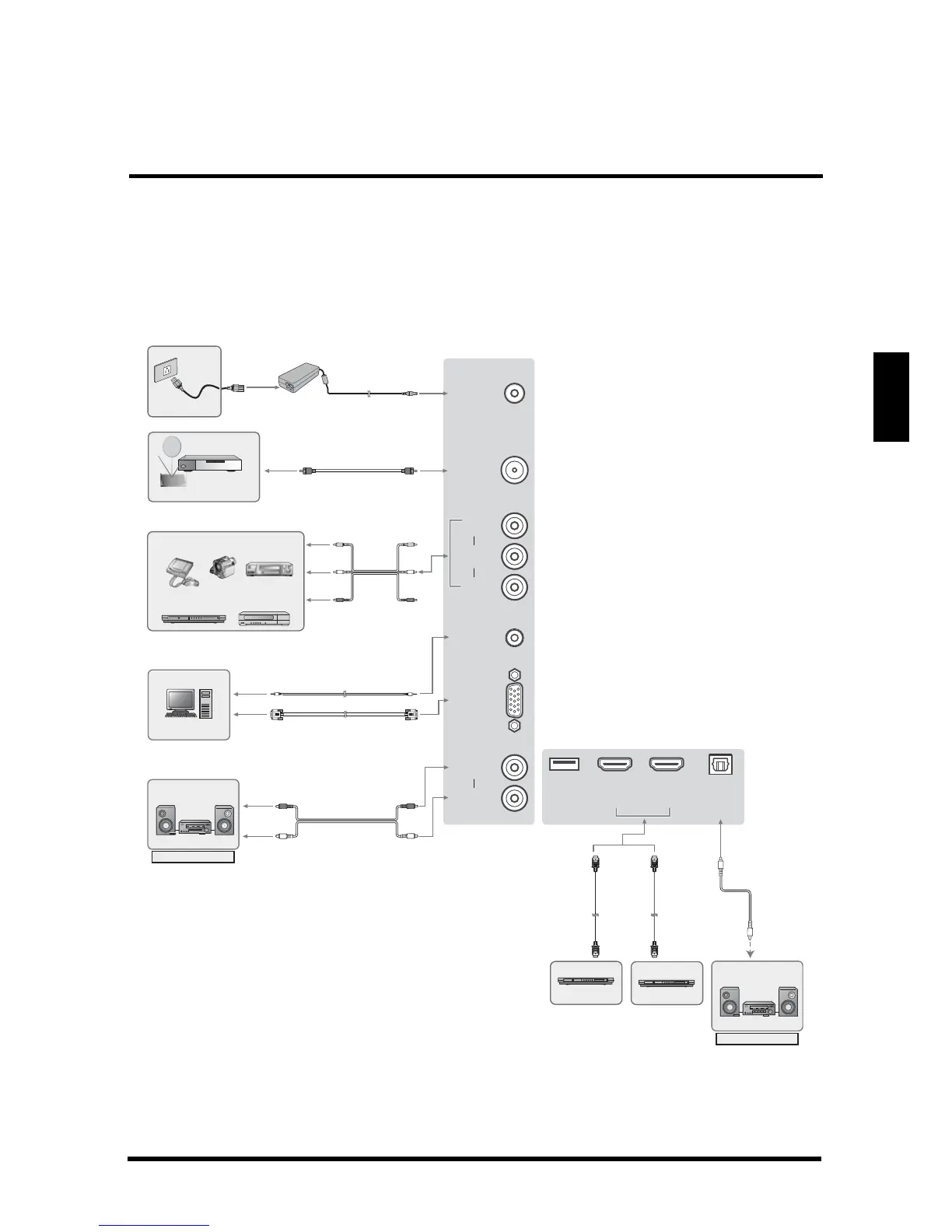

The following diagram shows the external device connections.
VGA
Y
L
R
AUDIO IN
TUNER
DC IN
SPDIFHDMI 1HDMI 2USB
L
R
Antenna cable /
Cable TV line
Antenna /
Cable system
PC
AUDIO OUT
AUDIO OUT
3.5 mm stereo mini jack cable
RGB cable
Audio cable
SPDIF
cable
HDMI-HDMI
cable
DVI-HDMI
cable
DVD player
with an HDMI
terminal
AC to DC adapter
Power outlet
Home video
game system
Camcorder
VCR
DVD player
Digital TV tuner
Composite AV cable
DVD player
with a DVI
terminal
Audio amplifier
Audio amplifier
