Wexiodisk WD-7 DUPLUS - Connections

Glasstilt Rev. 2.0 (202202)
Installation instructions
12

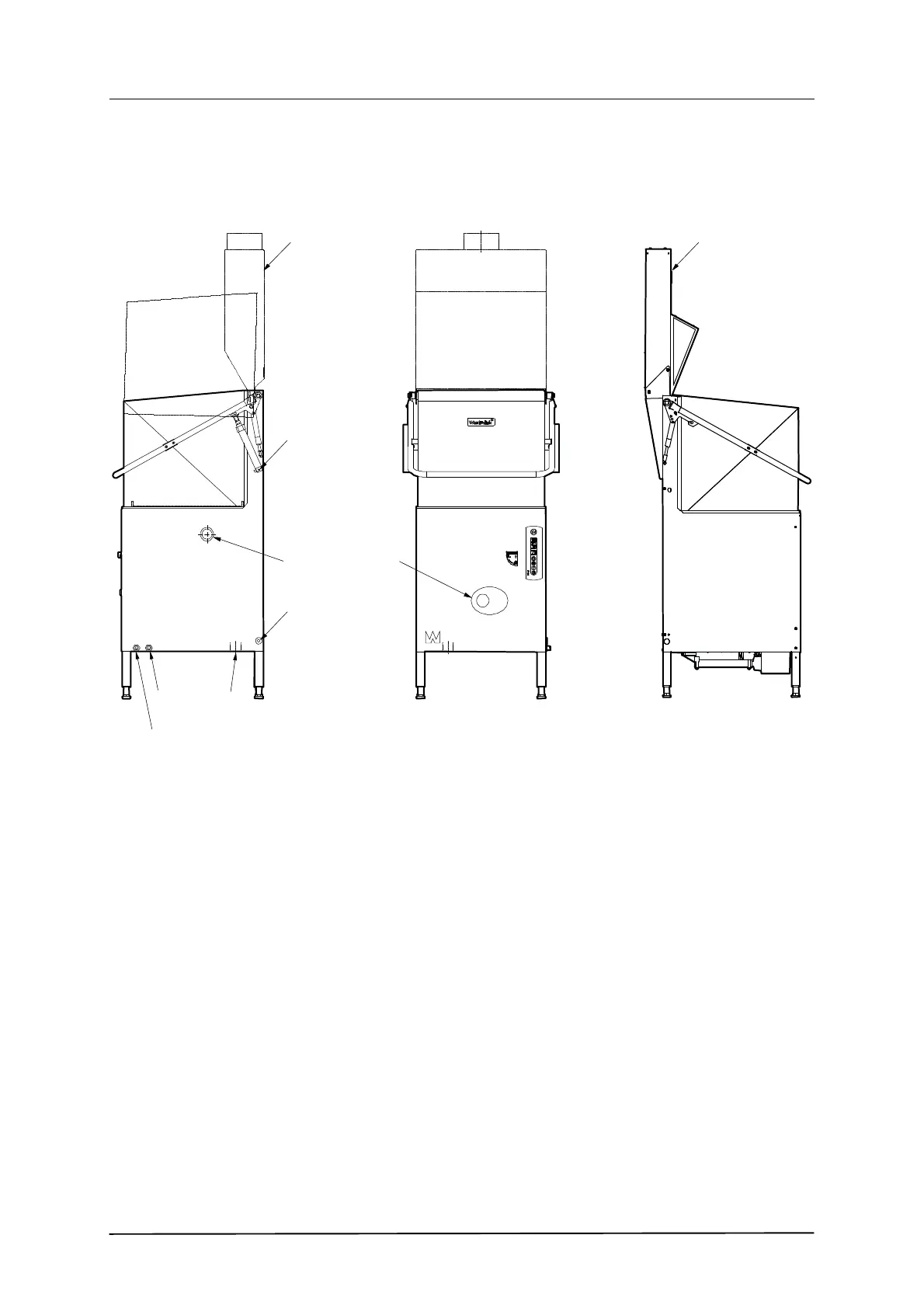

3.5 Connections
• A= Steam hood with extractor (option)
• B= Condensation unit with heat recovery through the heat recovery unit
(option)
• *=Filter for recirculating rinse (only on WD-6/7 DUPLUS)
1. Electrical connection
2. Hot water connection
3. Demi water connection
4. Water outlet for detergent or water connection from below
5. Drain/waste pipe connection
6. Plugged hole for detergent hose
7. Bleed screw for lifting cylinder (on machines with an automatic hood)
(option)
In the following chapter, figures are given in brackets to clarify what needs to be
done. These numbers refer to image and list above.
A
7
1
6
5
3, 4
2
B
Inst.
*
