Glasstilt Rev. 2.0 (202202)
Installation instructions
20
3.5.7 Adjustment of hinged basket conveyor
• Adjust the machine so that it is level by adjusting all four feet so that they
are in full contact with the floor. Use a spirit level.
• Fill the machine.

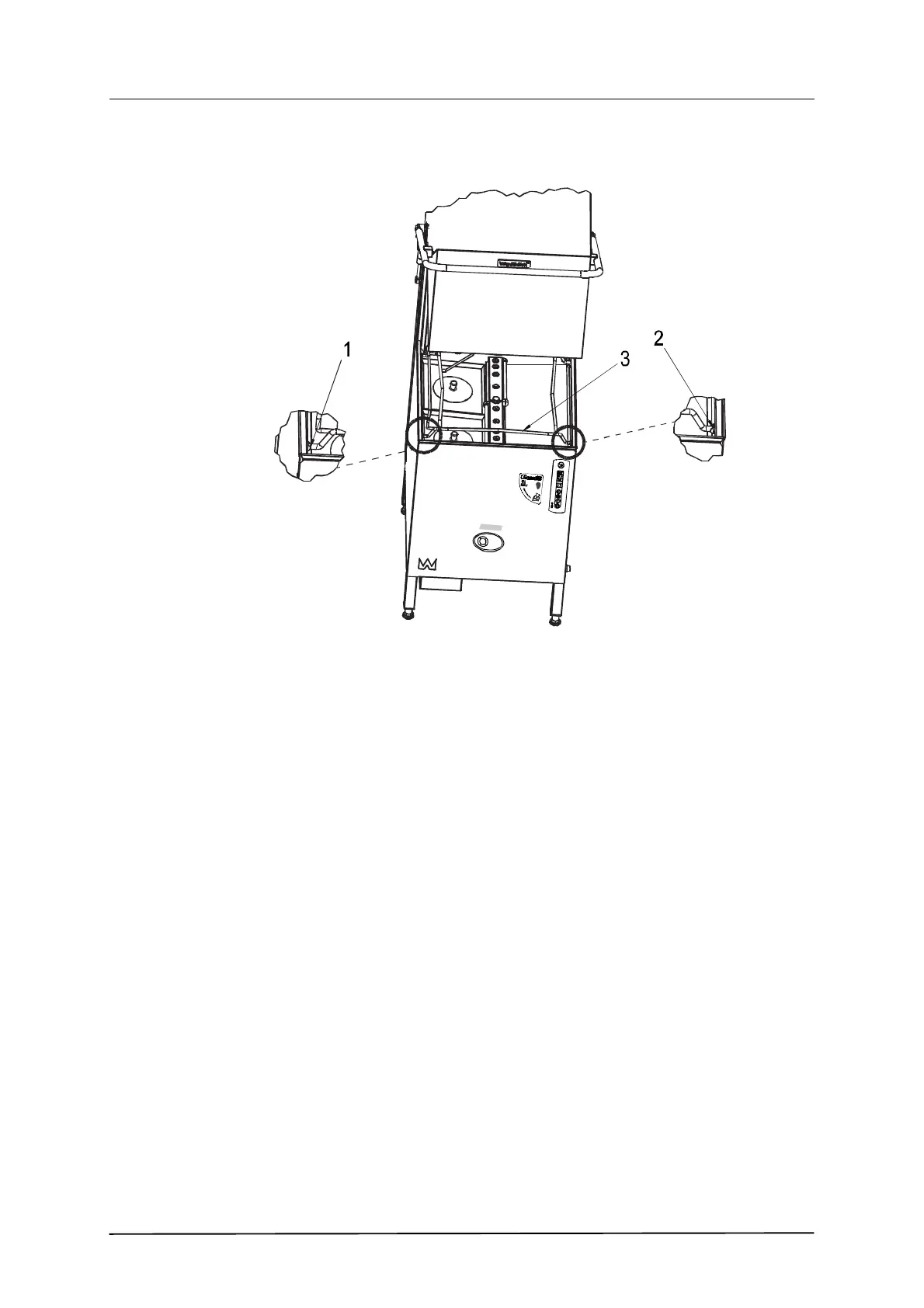

• Lift the basket conveyor (3) up and down and adjust the front legs until the
basket conveyor is in the middle of both supports (1) and (2).
• The legs must be adjusted in pairs if any further adjustment is required (to
the side, forwards or backwards).
