Glasstilt Rev. 2.0 (202202)
Installation instructions
14
3.5.3 Drain/waste pipe connection
The waste water system connected to (5) should consist of a 50 mm metal pipe
that will withstand mechanical impacts. The drain must run to a floor drain, where
its opening must be above the water level.
Ensure that the drain connection is kept in place by using e.g. cable ties in the
designated areas.
Machines with a drain pump (option)

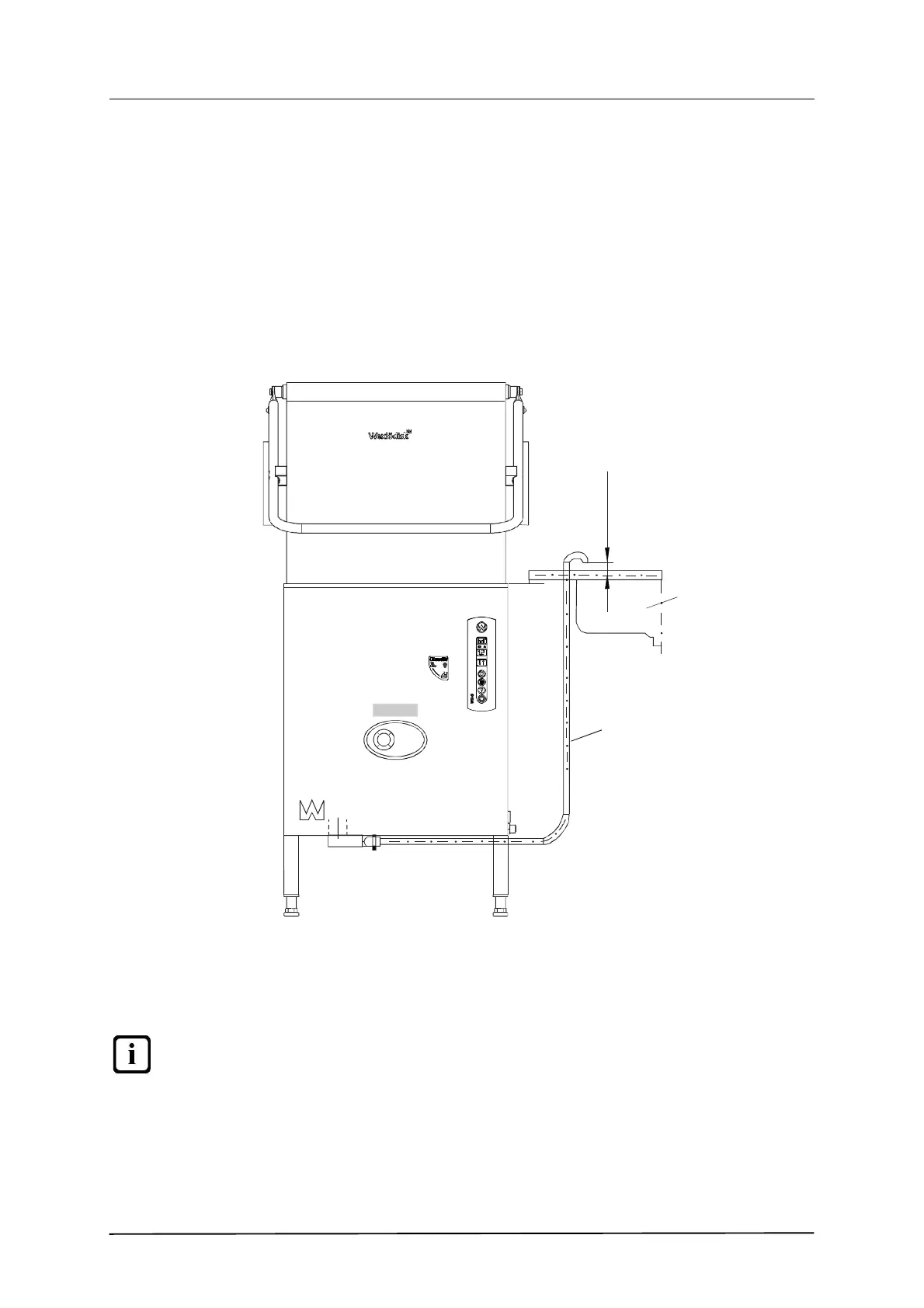

The drain connection (C) consists of a spiral hose which is connected to the
machine's drain pump. The drain must run to a washing-up sink (D), where the
opening must be at least 25mm above the washing-up sink.
Machines connected to WD-PRM 6/7 (option)
See also “Installation and user manual” for WD-PRM 6/7.
