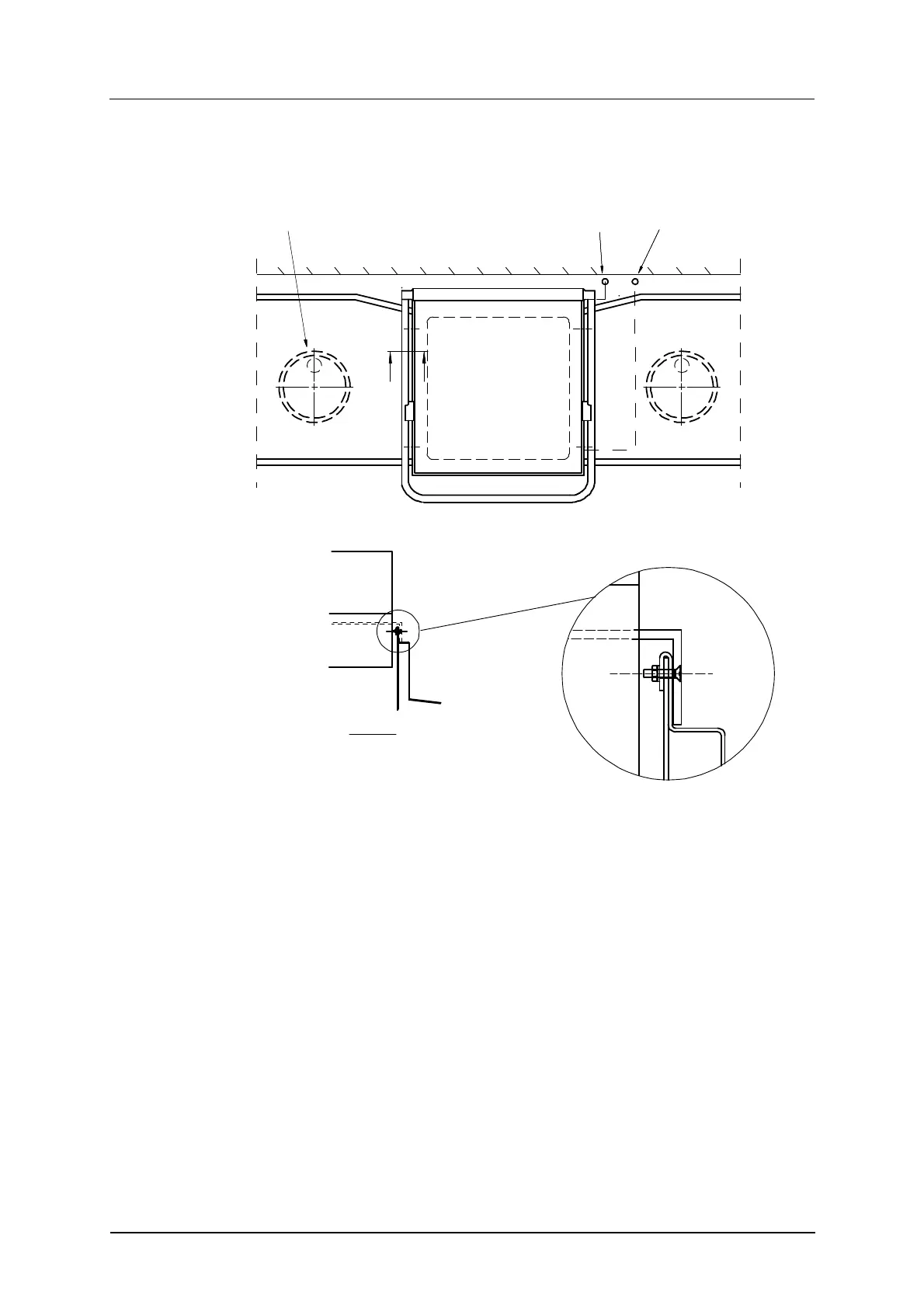

Connection to the left- or right-hand side of the machine
1. Water connection
2. Electrical connection
3. Floor drain
• Attach the sink connection to the machine and then adjust.
• Drill two ø 4.5 mm holes through the sink connection and the machine,
approx. 100 mm from each outer edge.
• Countersink the holes.
• Seal with silicone between the connection and the machine.
• Secure the sink with countersunk M4 screws, grommets on the outside
surface and nuts. Alternatively, you can secure the sink to the wall with wall
brackets.
Use a spirit level to check that the sinks are horizontal and adjust the height, if
necessary.
