INVERTER LOCATION AND MOUNTING
In addition to being as close to the battery or batteries as possible, with lead-acid batteries
being in a separately ventilated compartment, the WF-5318 and WF-5320 can be mounted to
a horizontal deck or vertical wall. Mounting anges are provided on each side and they can
accommodate ¼” bolts for mounting to a deck or wall. Vent openings (the ends or top) should
not be oriented downward. See Figure 8 for the mounting orientation.
In addition, for proper air cooling, there should be at least 2 cubic feet of air around the inverter
and at least three inches of space at each end.

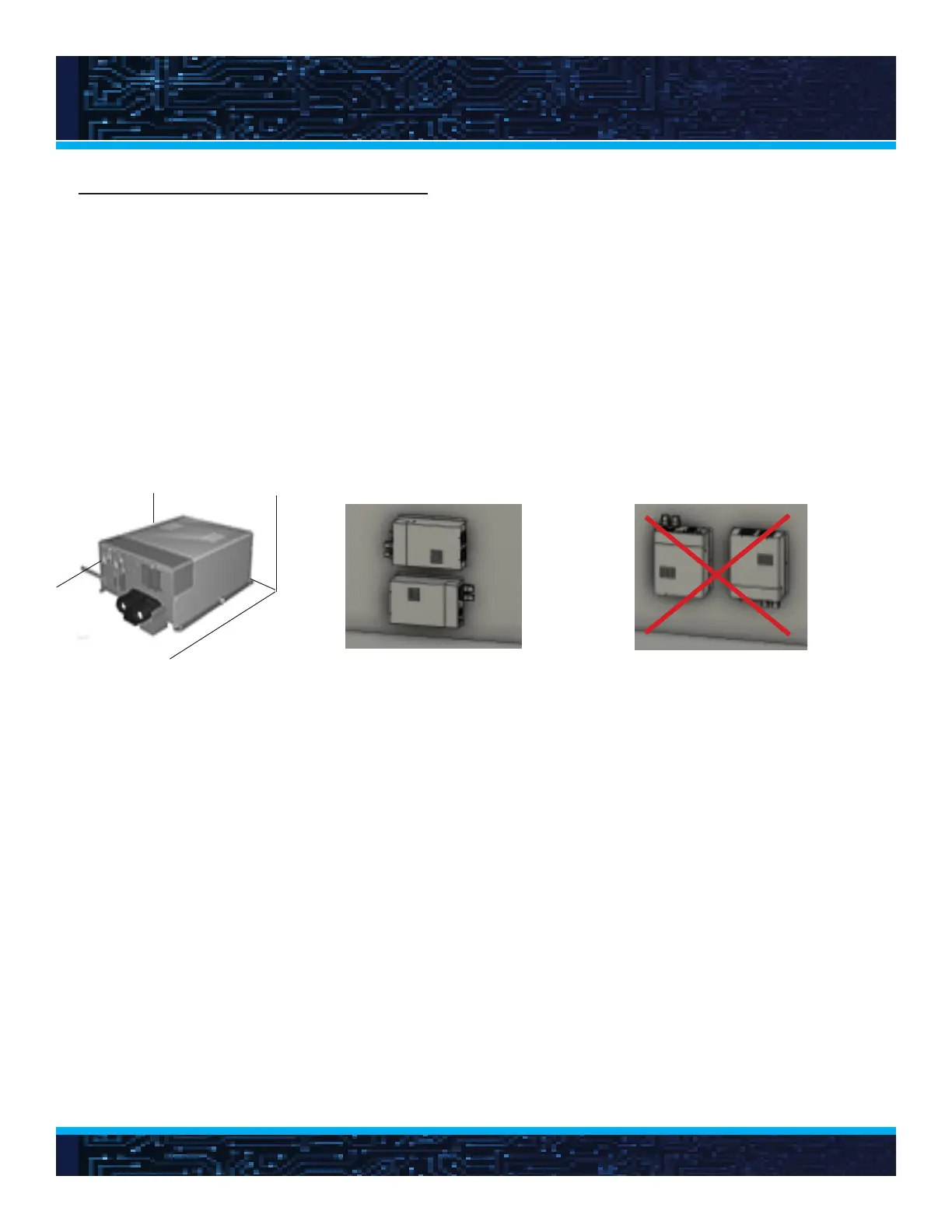

Figure 9. Inverter wall mounting orientation. Horizontal is okay, vertical is
not.
CORRECT
15
CORRECT
INCORRECT
