GFCI CONNECTOR
If the converter output is connected to a receptacle outlet, and the receptacle is near a water
tap, a wet location, or outdoors, it will need a GFCI receptacle. See the System Design
section on page 17 for a list of approved GFCI receptacles.
CONTROL PANEL CONNECTION
The control panel is connected with the supplied RJ-25 cable. One end connects to the
back of the panel and the other end connects to the inverter at the “Remote” connector. For
control panel operation, be sure the “TEST” switch is not pressed in (use the out position).
TESTING THE INVERTER
After the inverter is installed and wired, inspect all connections, verify all wire routing, and
make sure the connections are tight and properly made. Check that the relevant circuit
breakers are turned on. Then the system should be ready to be tested as follows:
Correct Position for RV

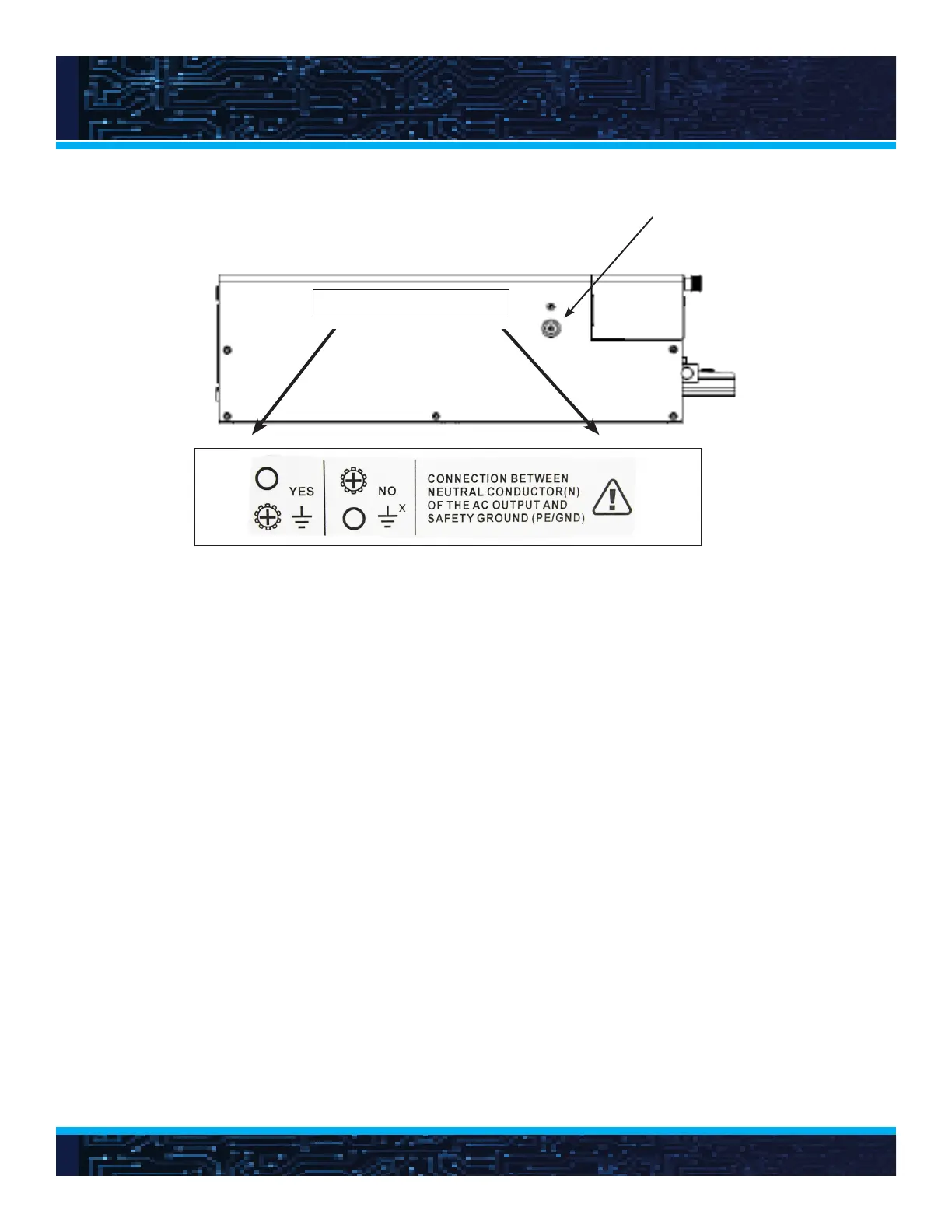

Figure 16. Inverter neutral-ground connection.
