WFCO WF-5300 Series User Manual

Be sure that the input and output wiring is correct; it’s a good idea to label the wires. To attach
the wires, lift the connector levers up, place the wires in the holes, then snap the levers down.
See Figure 14.

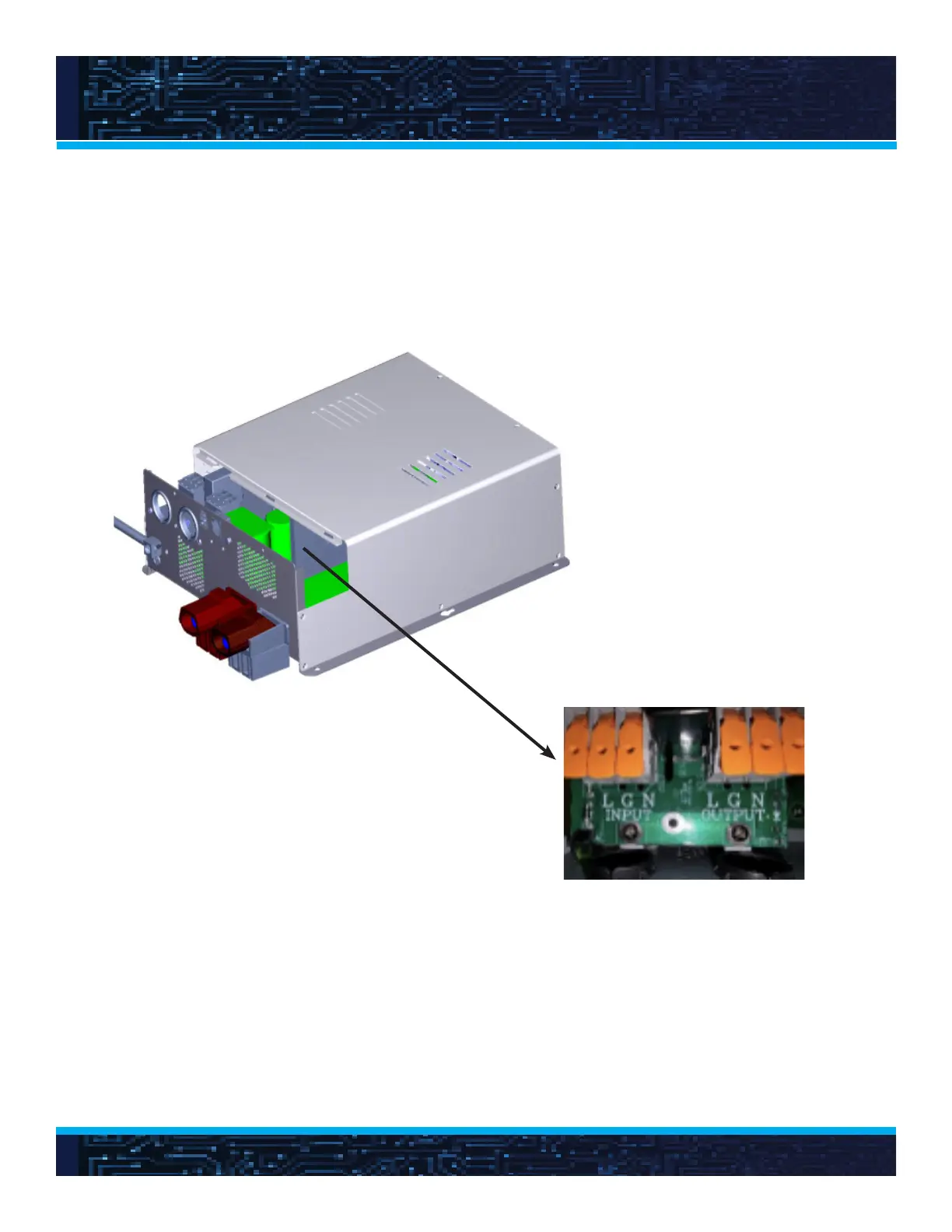

Figure 14. Ac wiring at inverter for 120-volt input and output circuits.
Cover removed to show where the terminals are
20
