DIMENSIONS
Internal installation - SH2202 or SC2202

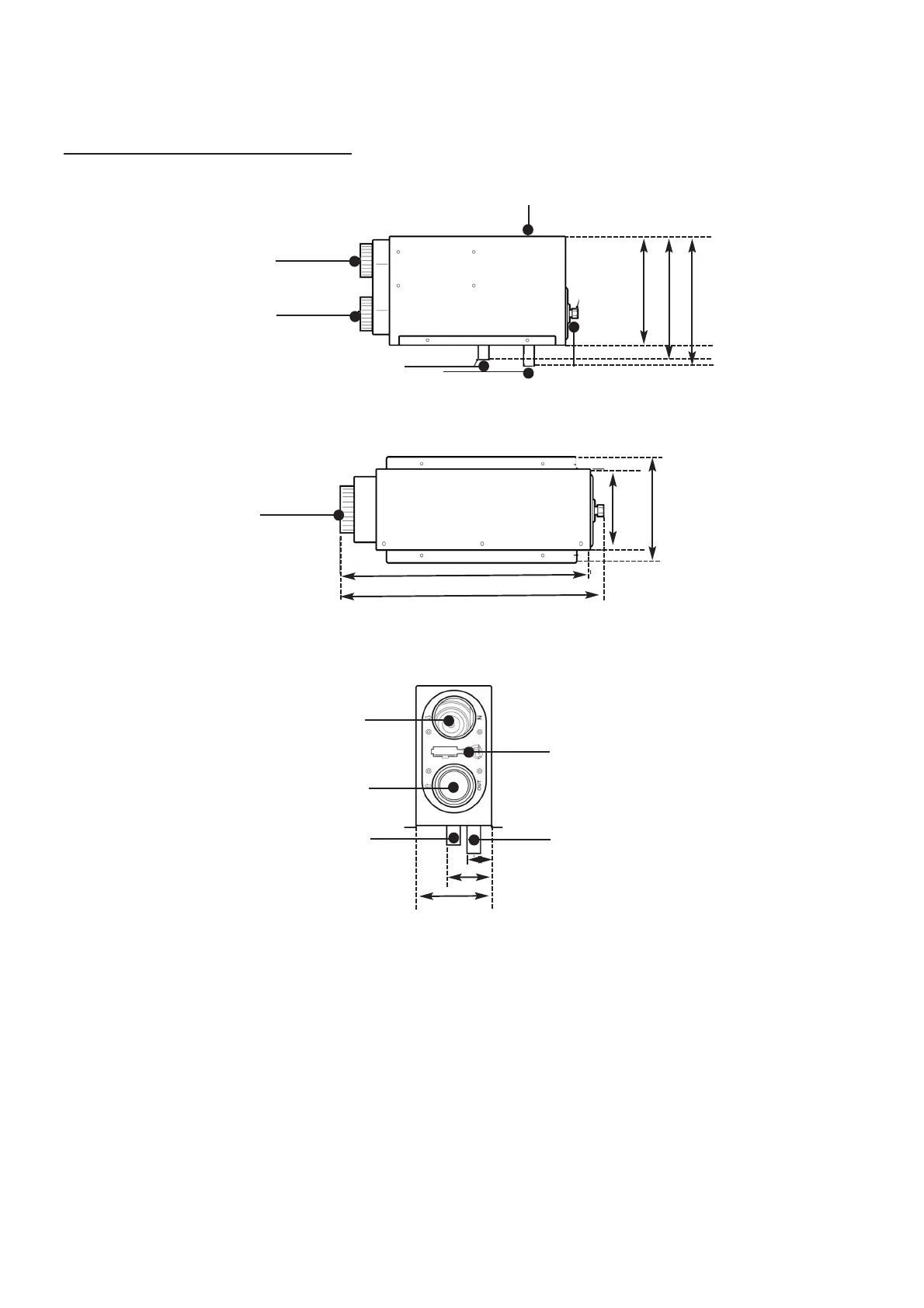

Fig. 7 Internal Installation - Side View - SH2202 / SC2202
Fig. 8 Internal Installation - Plan View - SH2202 / SC2202
Fig. 9 Internal Installation - Front View - SH2202 / SC2202
Cold Air Inlet
Hot Air Outlet
Exhaust Flue
Combustion Air Inlet
Space Heater
Gas In
270mm
257mm 226mm
Cold Air Inlet
121mm
134mm
430mm
454mm
Exhaust Flue
Combustion Air Inlet
Cold Air Inlet
Hot Air Outlet
157mm
78mm
46mm
Reset Button
7
